YASONG SLA-01HZ 120dB Button Control Alarm Siren, 25W, IP65, USB Upload, LED Strobe, One-Button Linkage
Wiring is required. After wiring the siren and button box, the siren stays in standby when powered on and starts or stops by pressing the button box.
Product Overview
The YASONG SLA-01HZ button control alarm siren combines a 0–120dB adjustable horn with a red LED strobe warning light for schools, factories, farms and outdoor security areas.

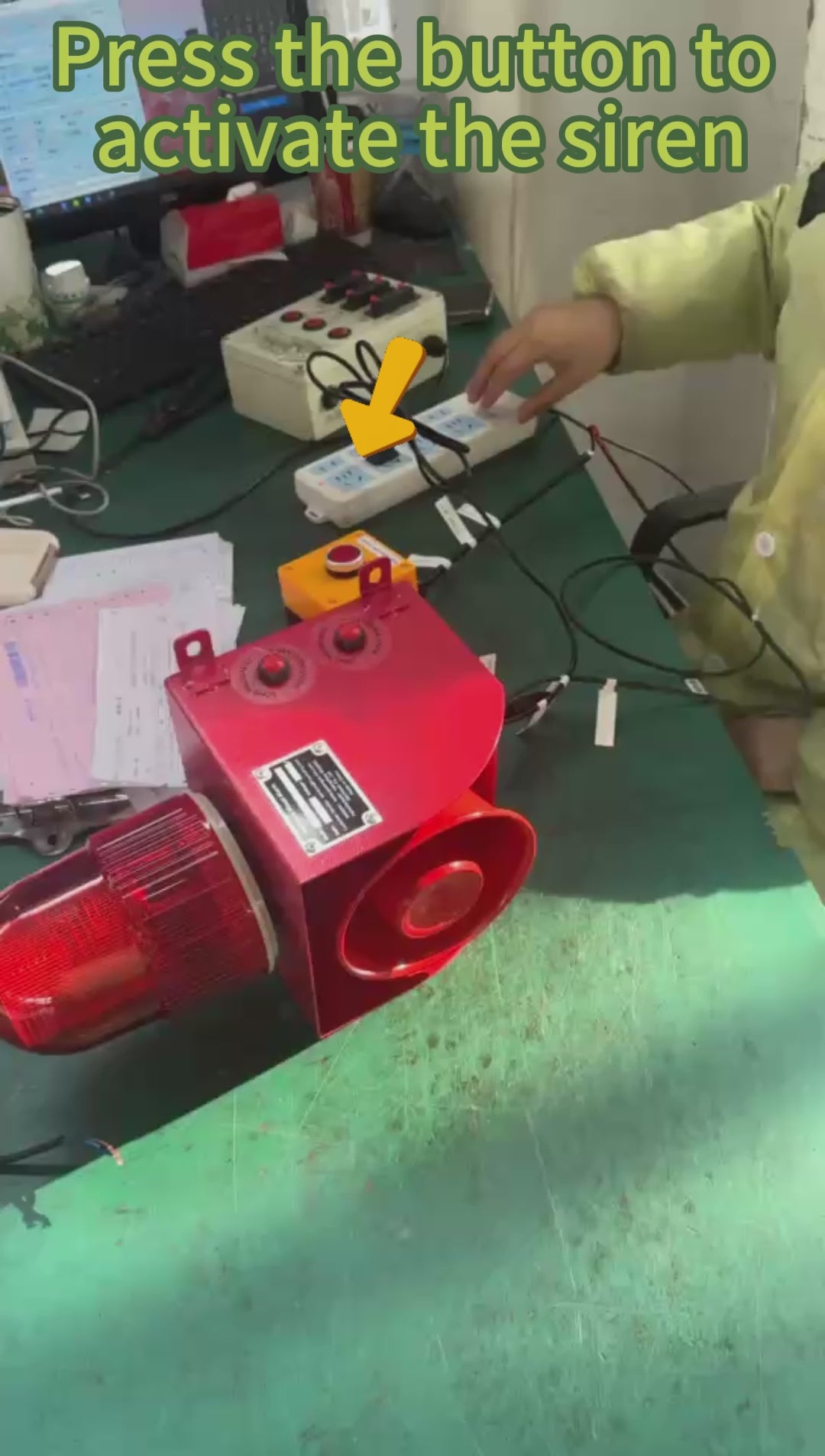

This model works by one-button linkage control: after the siren and button box are wired and powered on, pressing any button starts all connected sirens, and pressing any button again stops the alarms.

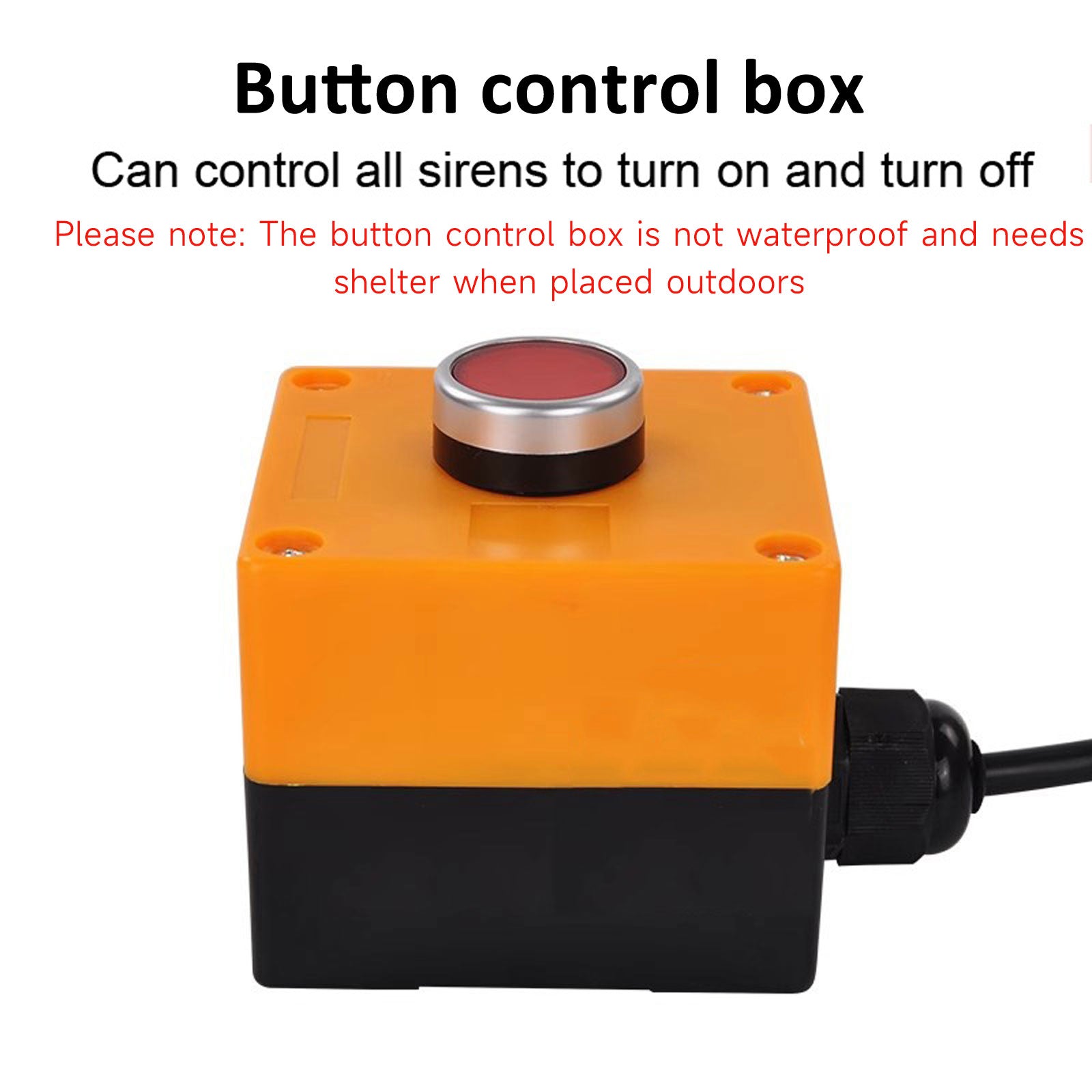

- Button control box for simple alarm on/off operation
- 0–120dB adjustable volume for different site needs
- Multi-tone alarm sound with button adjustment support
- USB sound upload for custom warning audio under 4MB
- IP65 steel housing for outdoor warning applications
Wiring is required for installation. Please confirm the voltage and wiring method before ordering, especially when linking multiple sirens with one button box.
Key Specifications
Quickly compare the most important details before ordering.
Product Highlights
Key features that help you decide whether this model fits your use.

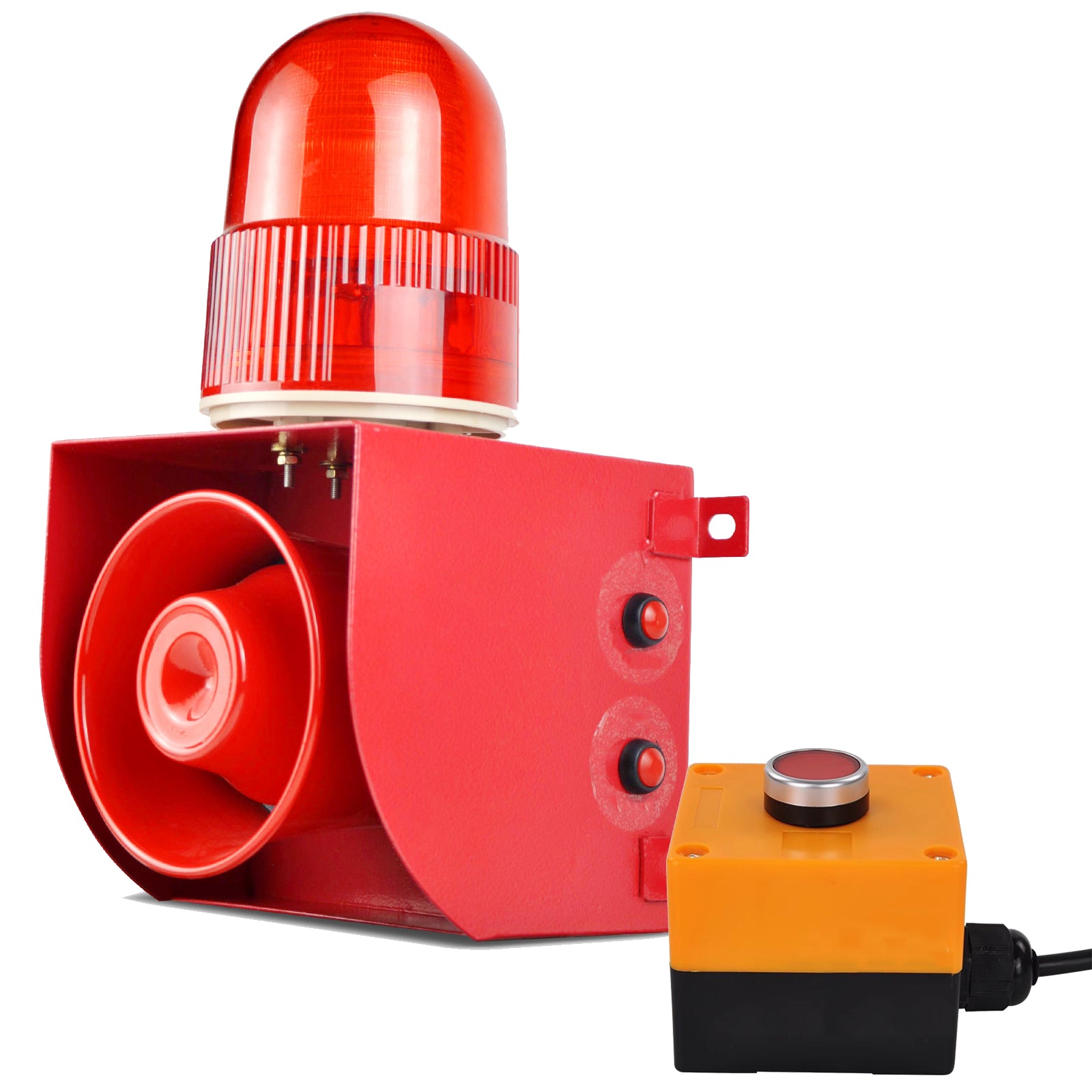

One-Button Linkage Control

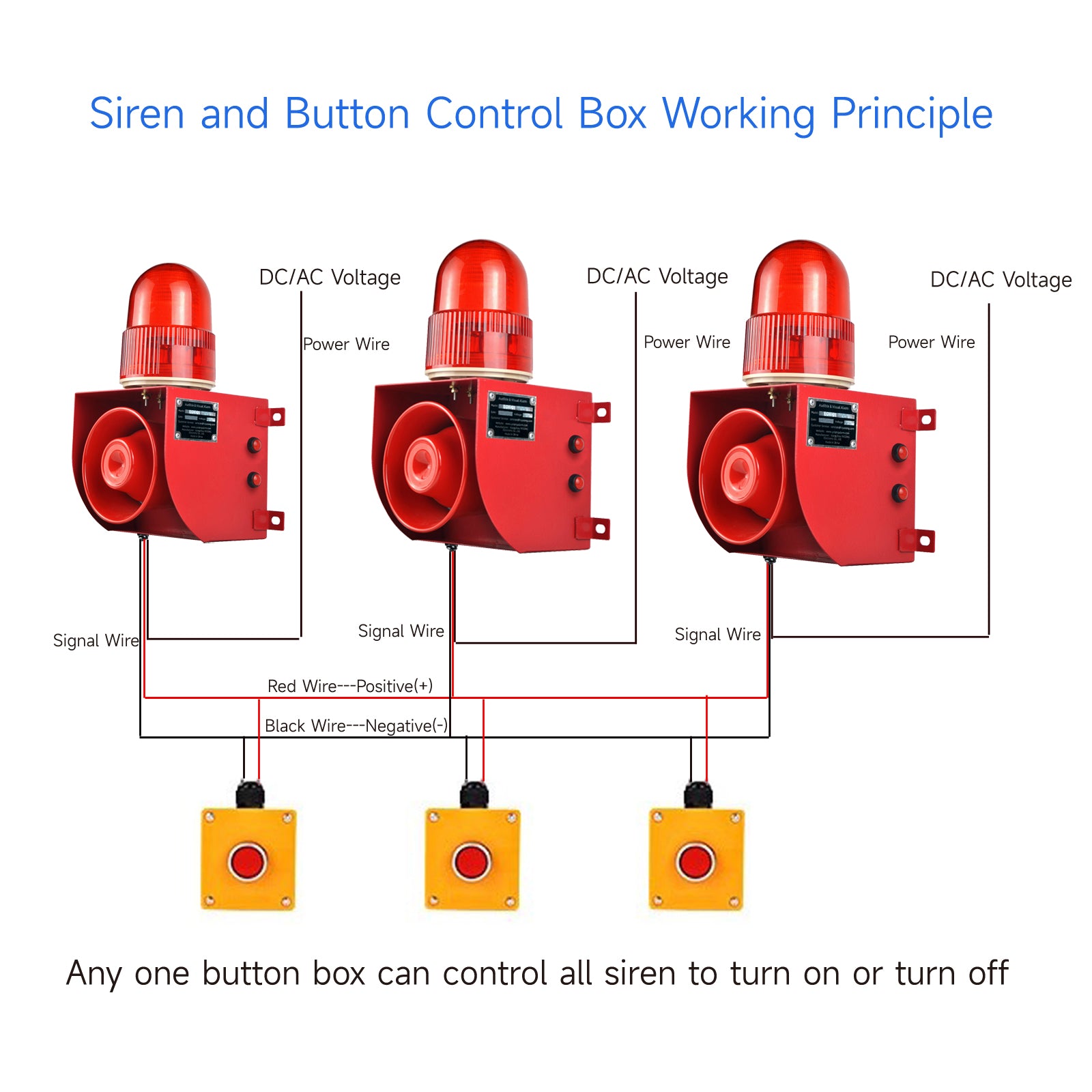

After the siren wires and button box wires are connected, pressing any button starts all linked sirens. Pressing any button again stops all alarms.

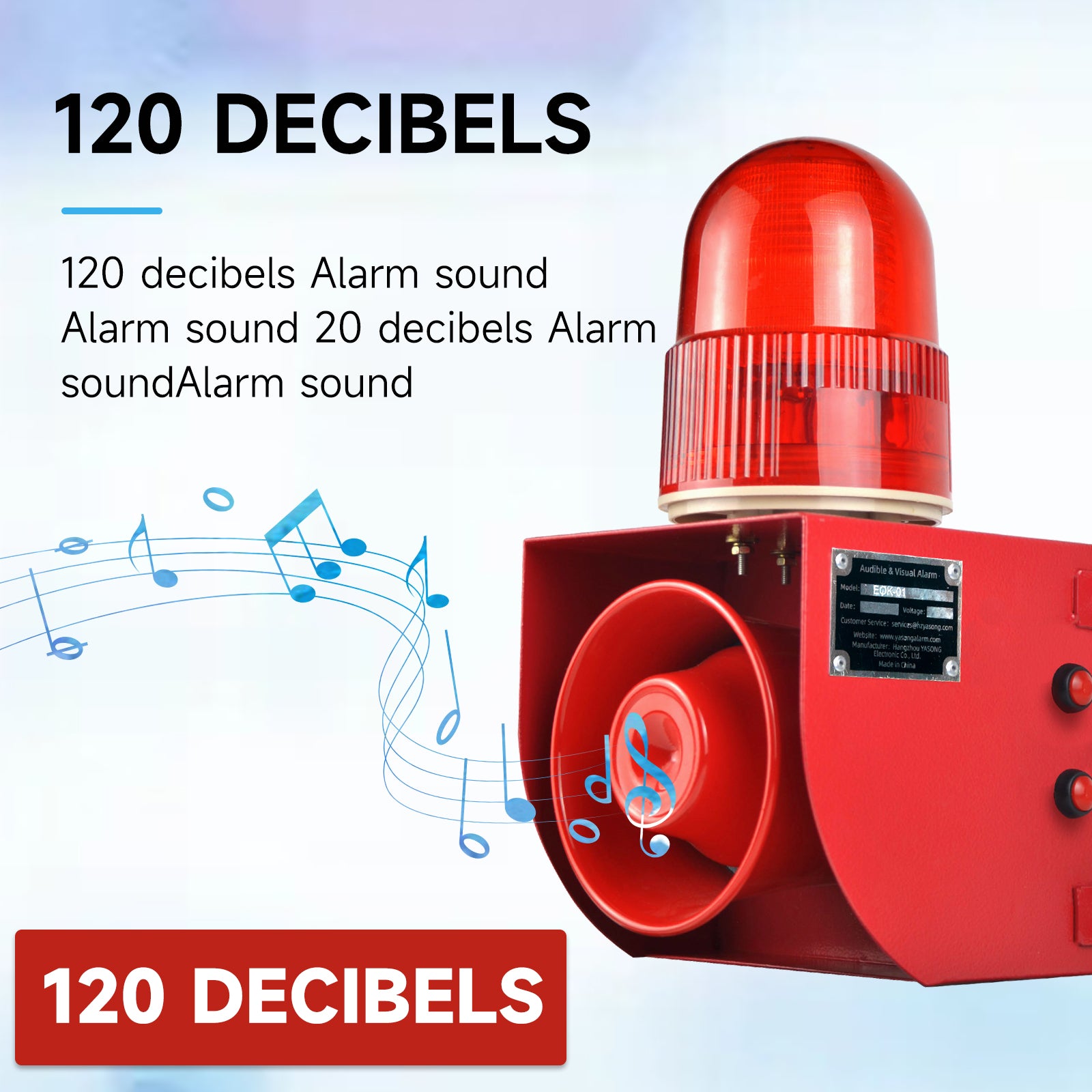

120dB Adjustable Horn

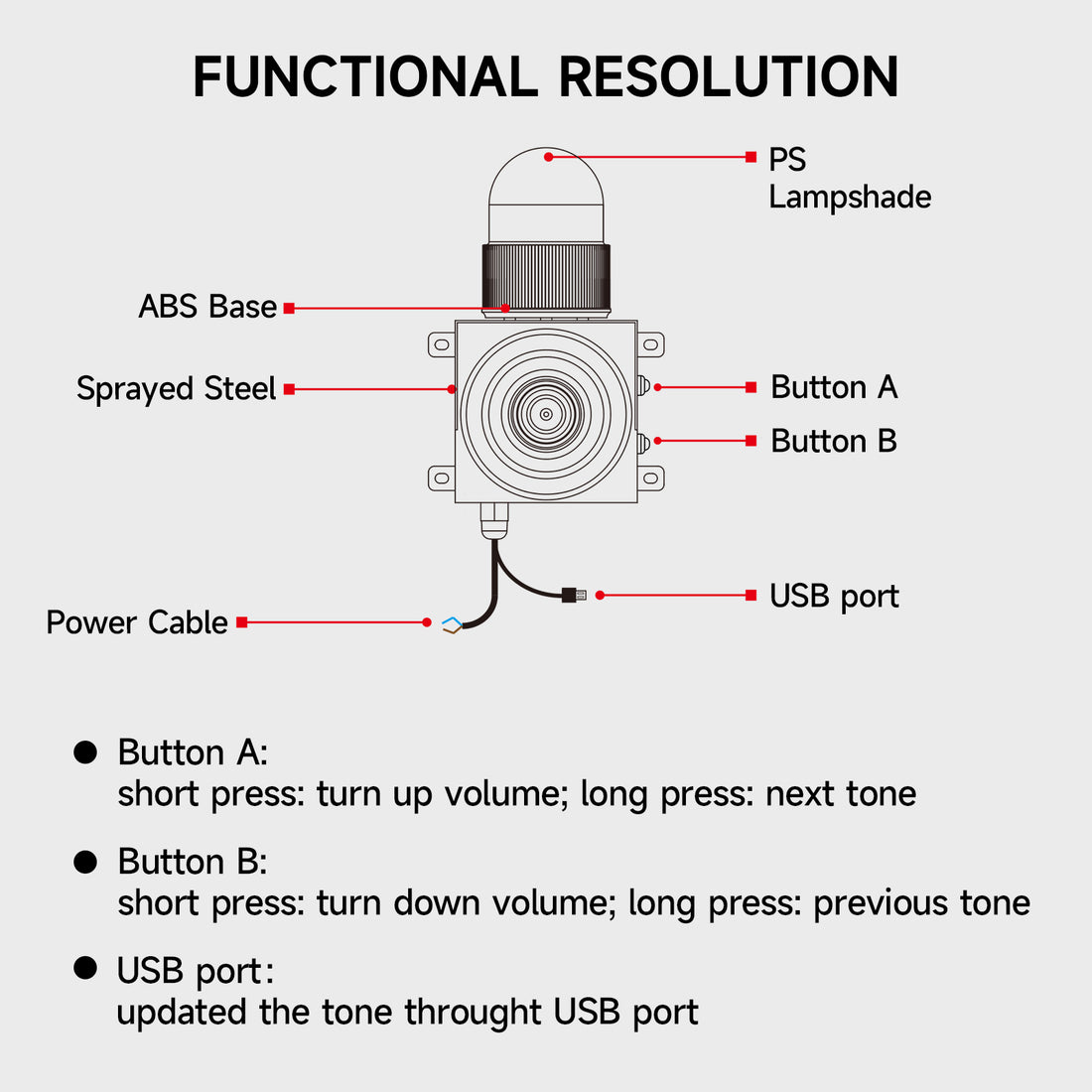

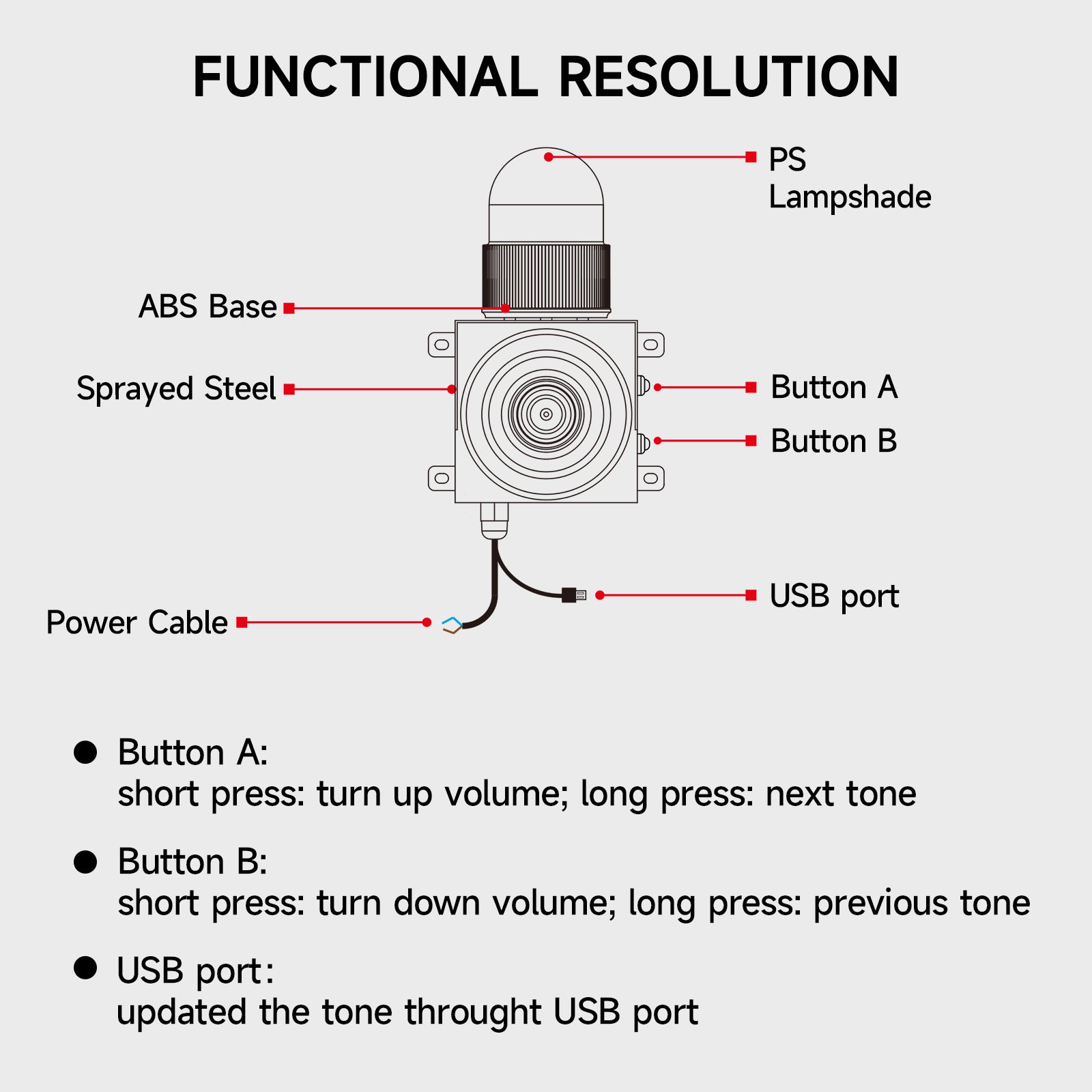

The alarm supports 0–120dB volume adjustment. Short press the button on the alarm to adjust the volume according to the site environment.
Multi-Tone Alarm Sound
The siren supports adjustable warning tones by button control.

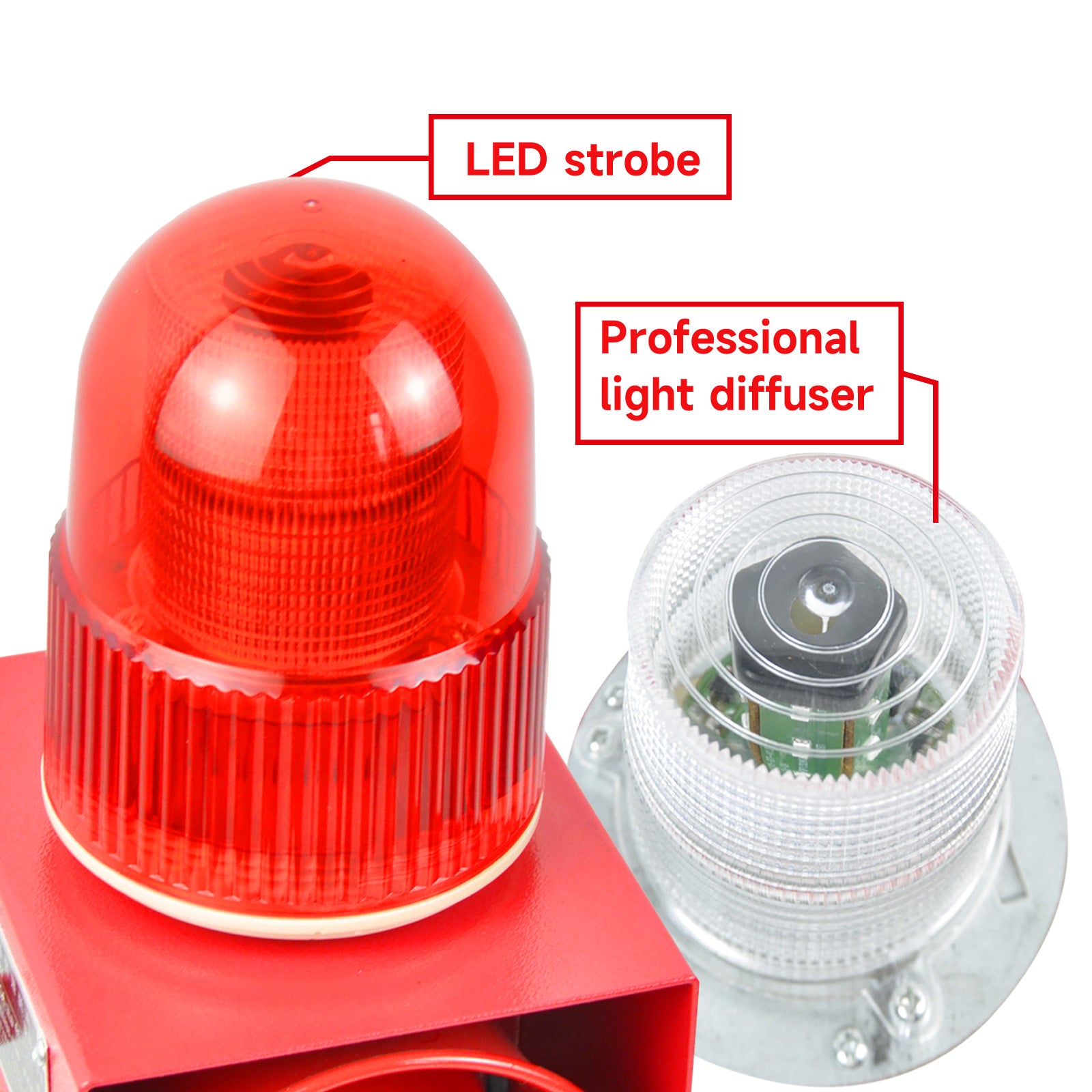

Red LED Strobe
When activated, the siren flashes a red LED warning light together with the alarm sound. The diffuser helps spread the warning light for stronger visibility.
USB Sound Upload
The built-in USB port allows users to upload custom warning audio. The uploaded audio file size should not exceed 4MB.
Full Product Specifications
Detailed specifications for installation, comparison and compatibility checks.
- Product Type
- Button Control Audible and Visual Alarm Siren
- Input Voltage
- DC12V / DC24V / AC110V / AC220V / AC380V
- Power
- 25W
- Working Current
- 1A
- Sound Level
- 0–120dB adjustable
- Tone
- 12 built-in tones, adjustable by long press button / Short press button to adjust volume
- Volume Adjustment
- Adjustable by button; short press to adjust volume
- Alarm Mode
- Audible and visual alarm
- Trigger Mode
- Button control box trigger
- Control Mode
- One-button linkage control box
- Work Mode
- Power-on standby; press button to start alarm, press again to stop
- Light Source
- LED strobe light
- Lighting Mode
- Red LED strobe
- Protection Rating
- IP65

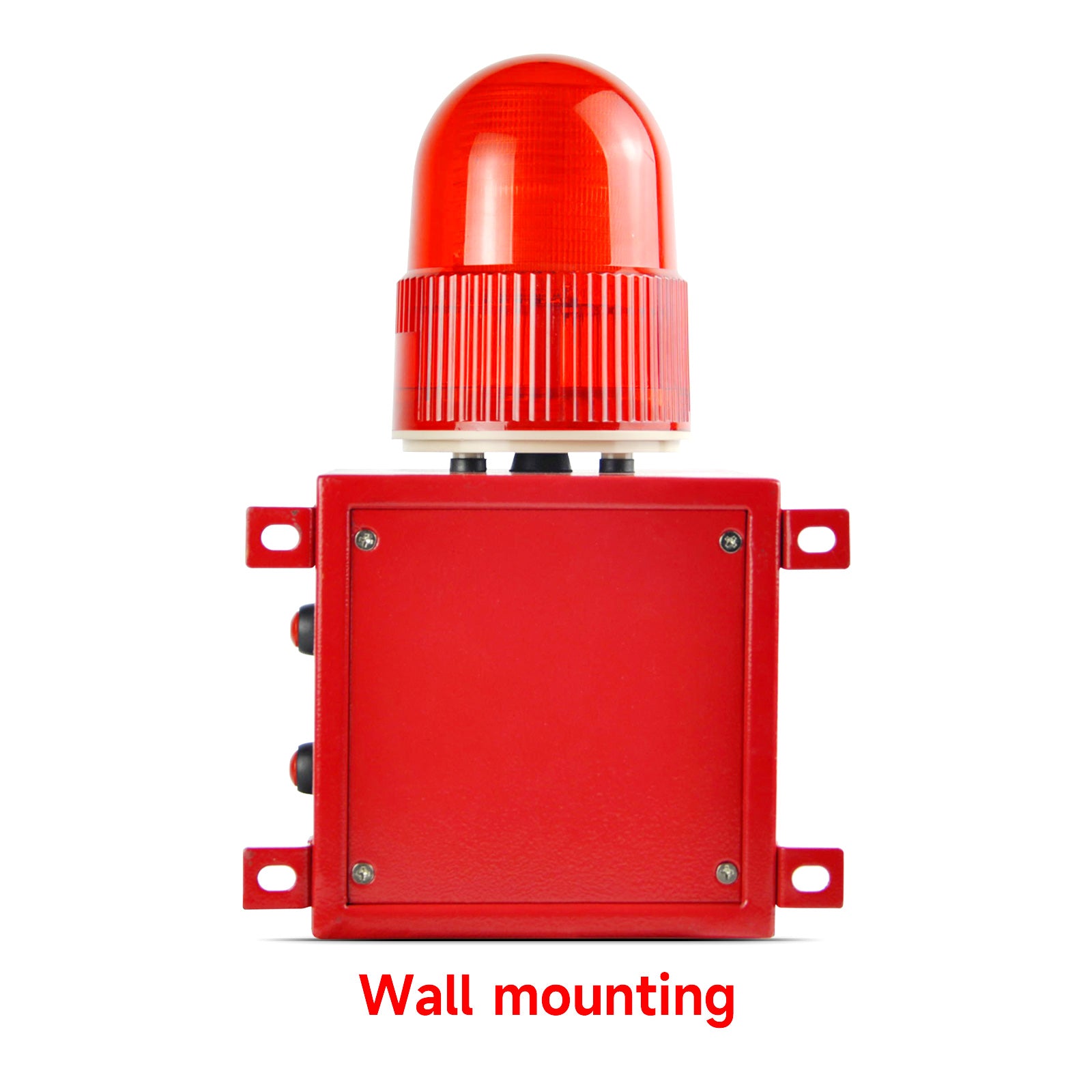

- Installation Method
- Wall mount
- Operating Temperature Range
- -40°C to 70°C
- Material
- Cold-rolled steel
- Net Weight
- 5 kg
- USB Interface
- Yes, custom sound upload; maximum sound storage capacity 4MB

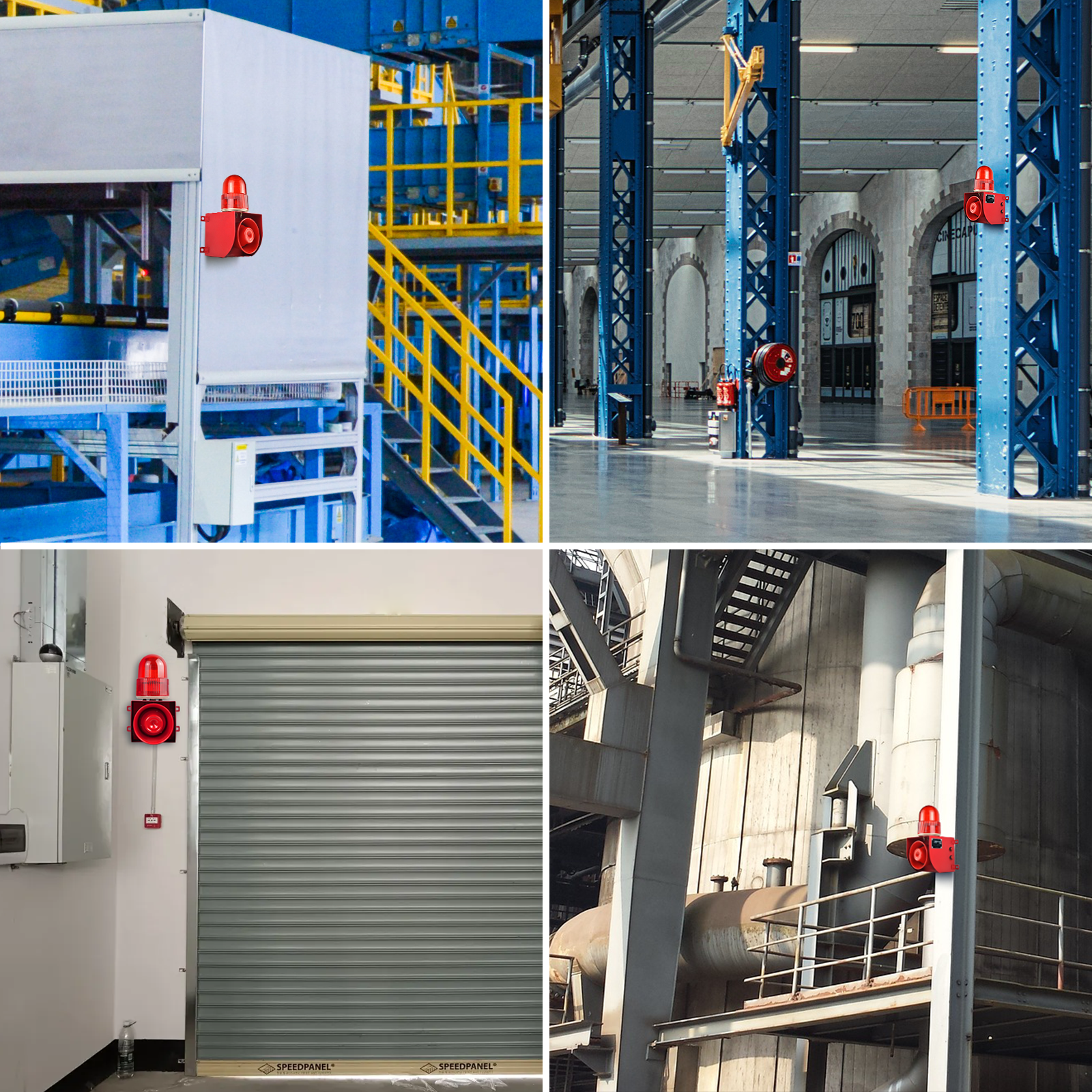

- Typical Application Scenarios
- Schools, factories, farms, homes, warehouses, outdoor security areas, workshops, gates, emergency warning points, industrial sites
- Tips
- Wiring is required. After wiring the siren and button box, the siren stays in standby when powered on and starts or stops by pressing the button box.
- Customization
- Contact us
