YASONG SLA-01HK+ABT100 120dB Infrared Beam Alarm Kit, 100m Detector, 25W, IP65, USB Audio, LED Strobe

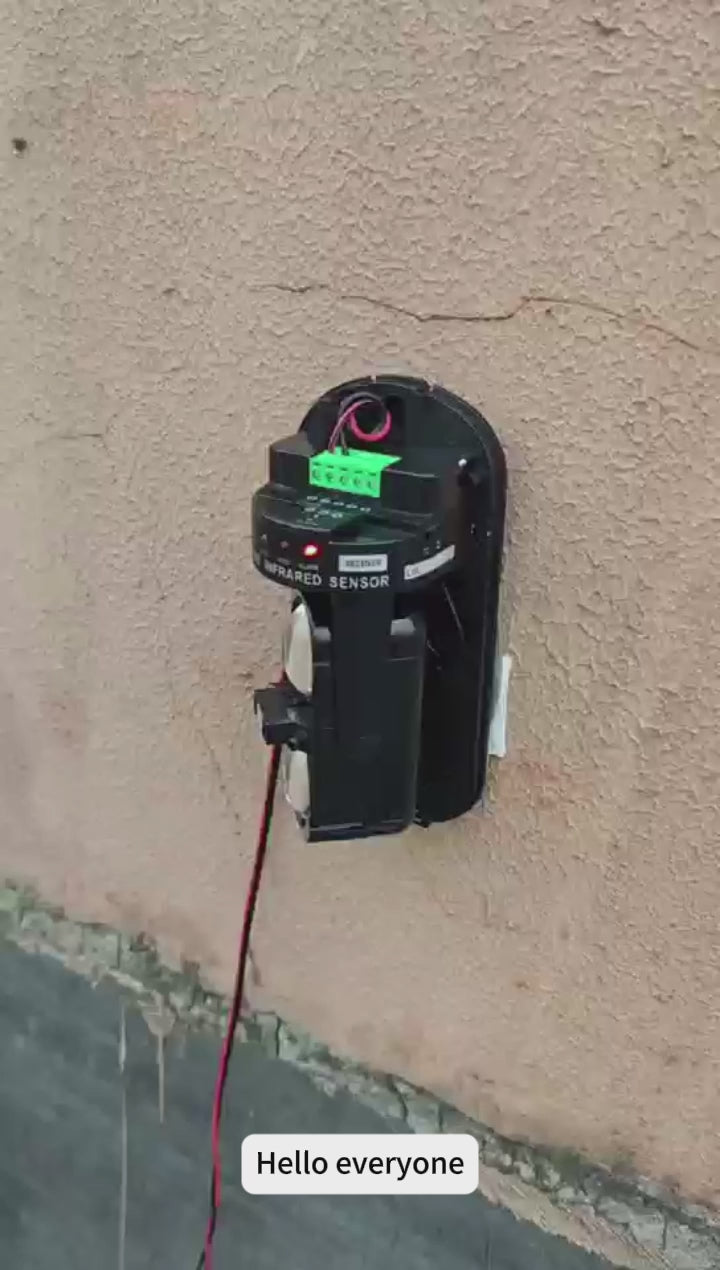

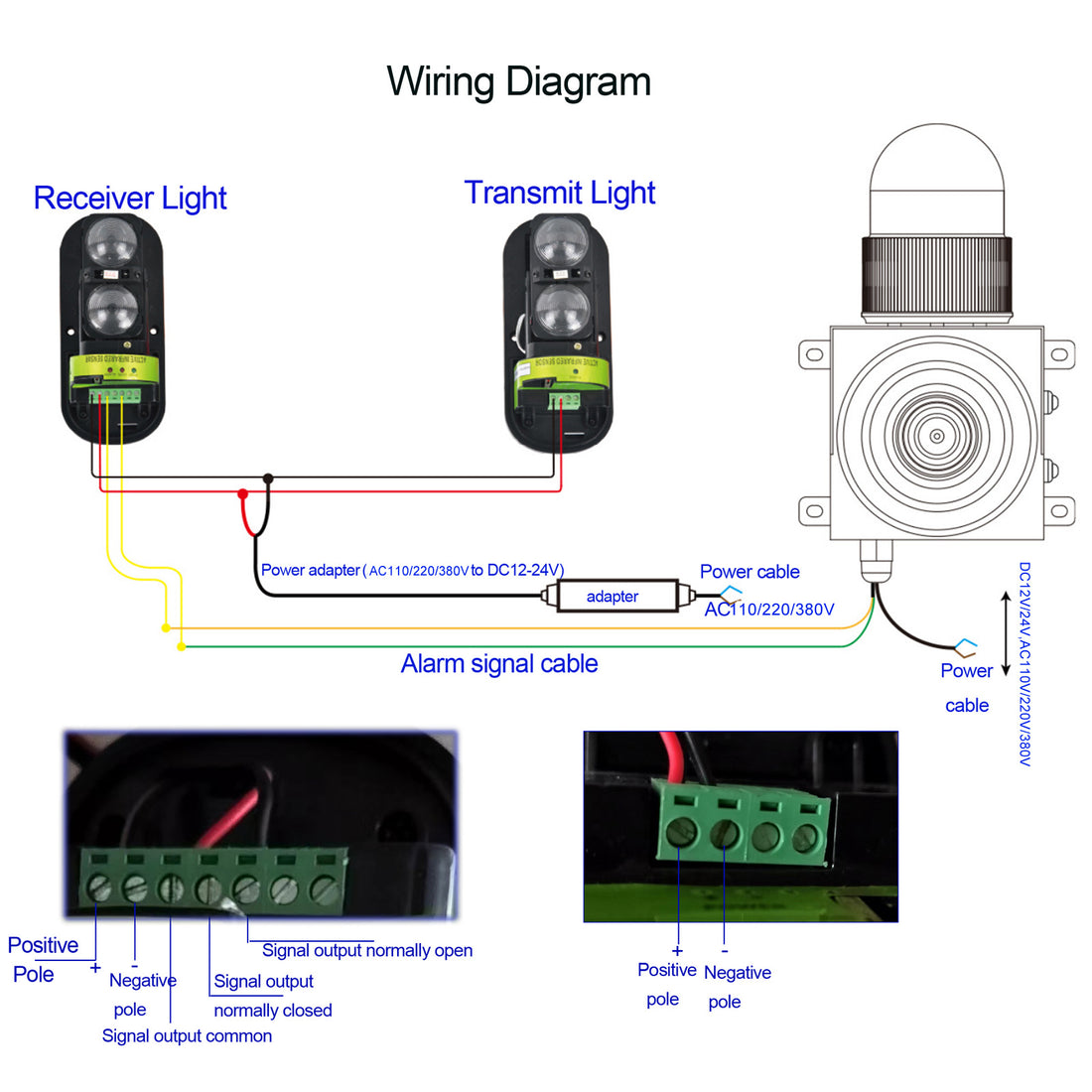

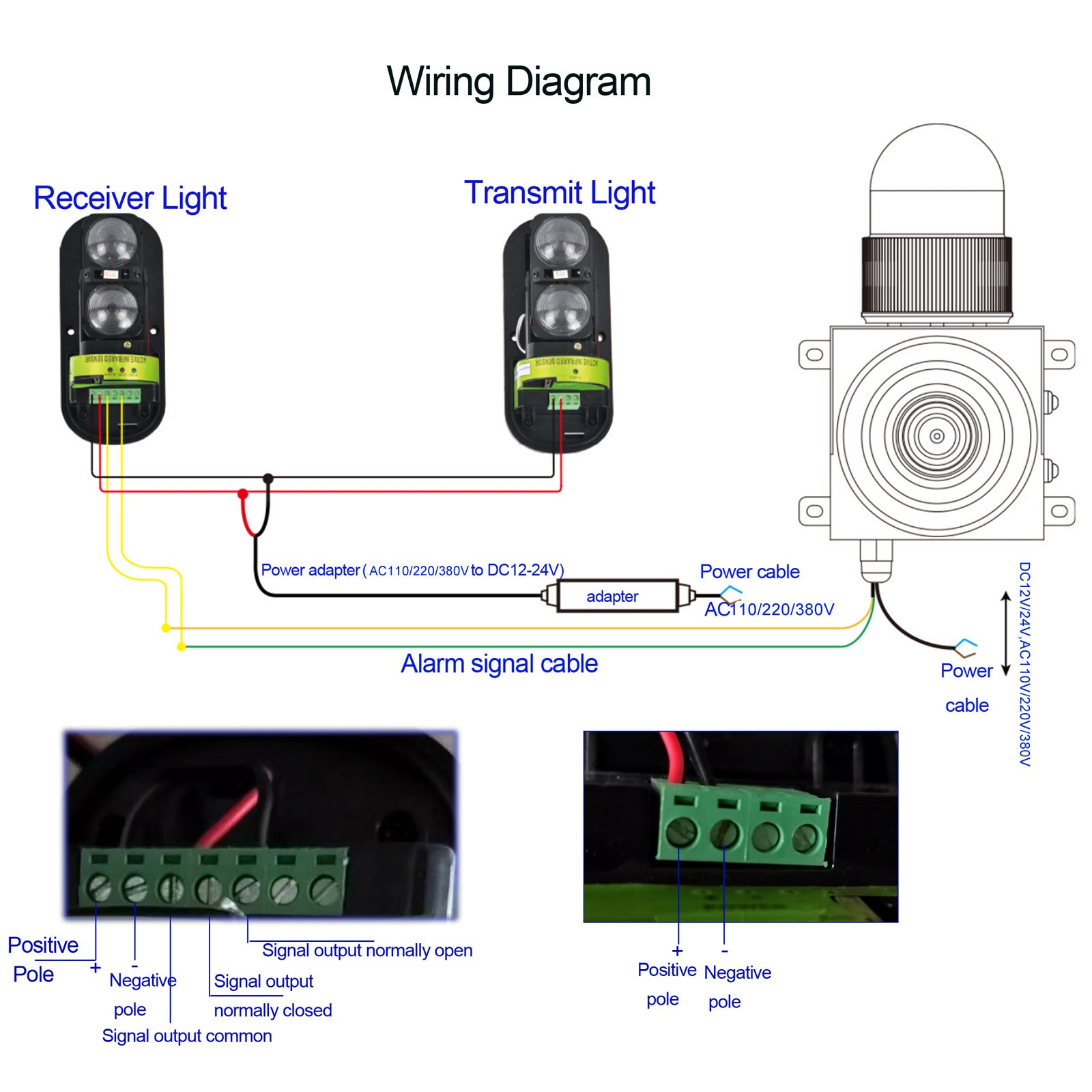

This kit requires wiring and correct alignment between the infrared transmitter and receiver. The detector input voltage is DC10.5โ28V, while the siren voltage must be selected separately before ordering.
Product Overview

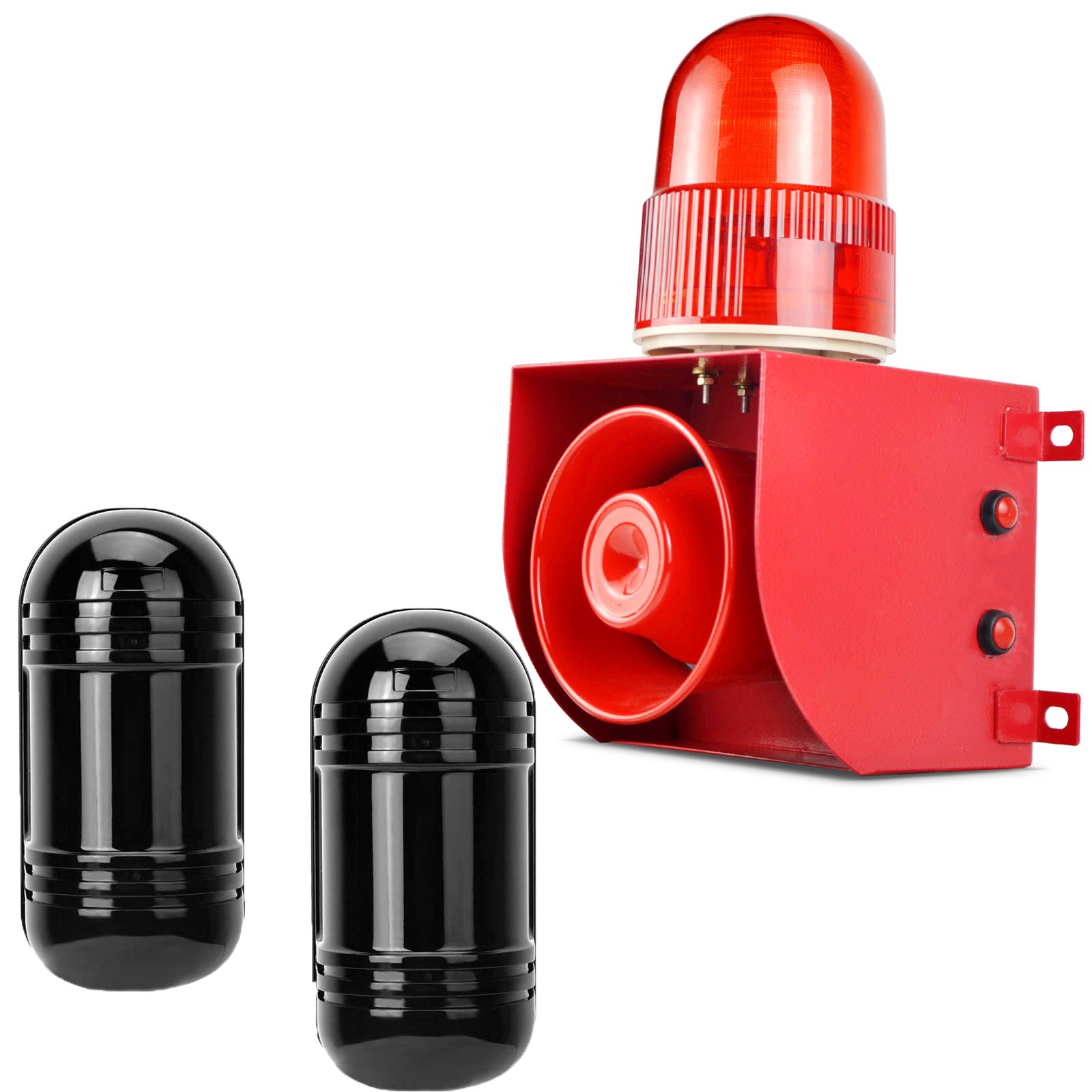

The YASONG SLA-01HK+ABT100 is an outdoor infrared beam alarm kit that combines a 120dB sound-and-light siren with a dual-beam infrared detector for perimeter security.

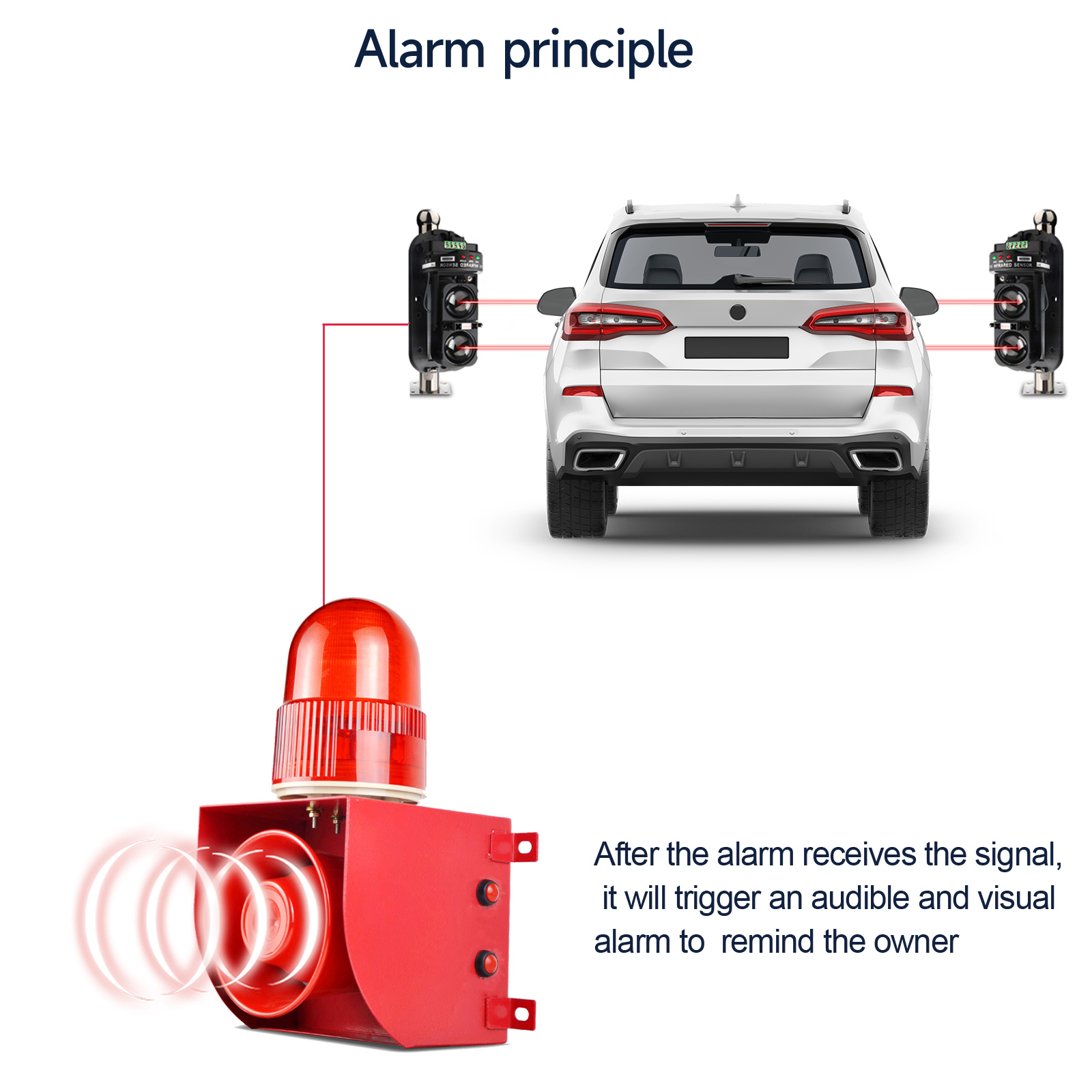

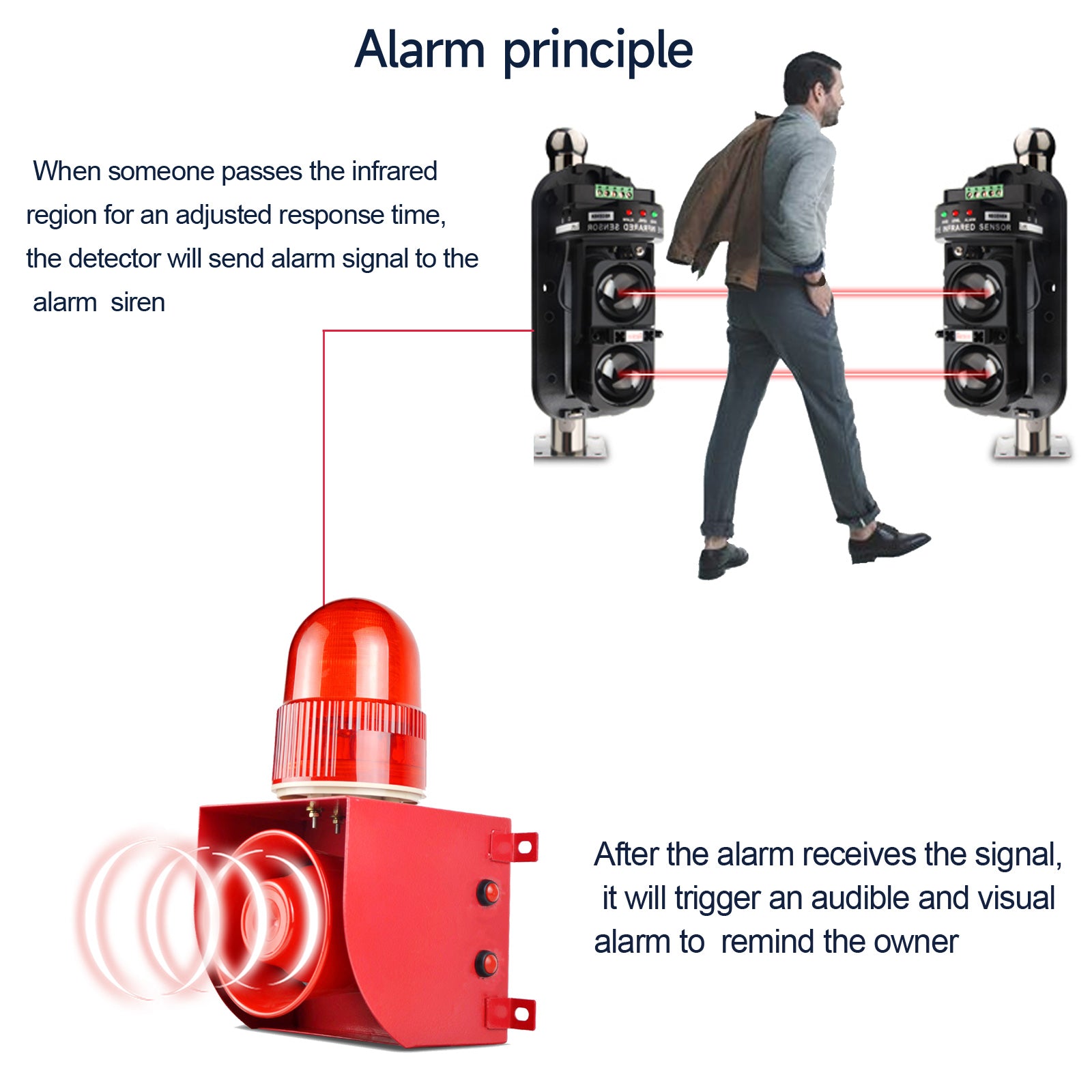

This kit works as a beam-break alarm system. When both invisible infrared beams between the transmitter and receiver are blocked, the detector sends a signal to the alarm host and triggers the siren and LED strobe.
- 100m / 320ft infrared detection distance for outdoor perimeter protection
- 0โ120dB adjustable siren volume controlled by button
- 12 built-in tones with USB sound upload support
- Dual-beam infrared detection to help reduce false alarms
- IP65 waterproof alarm housing for outdoor use

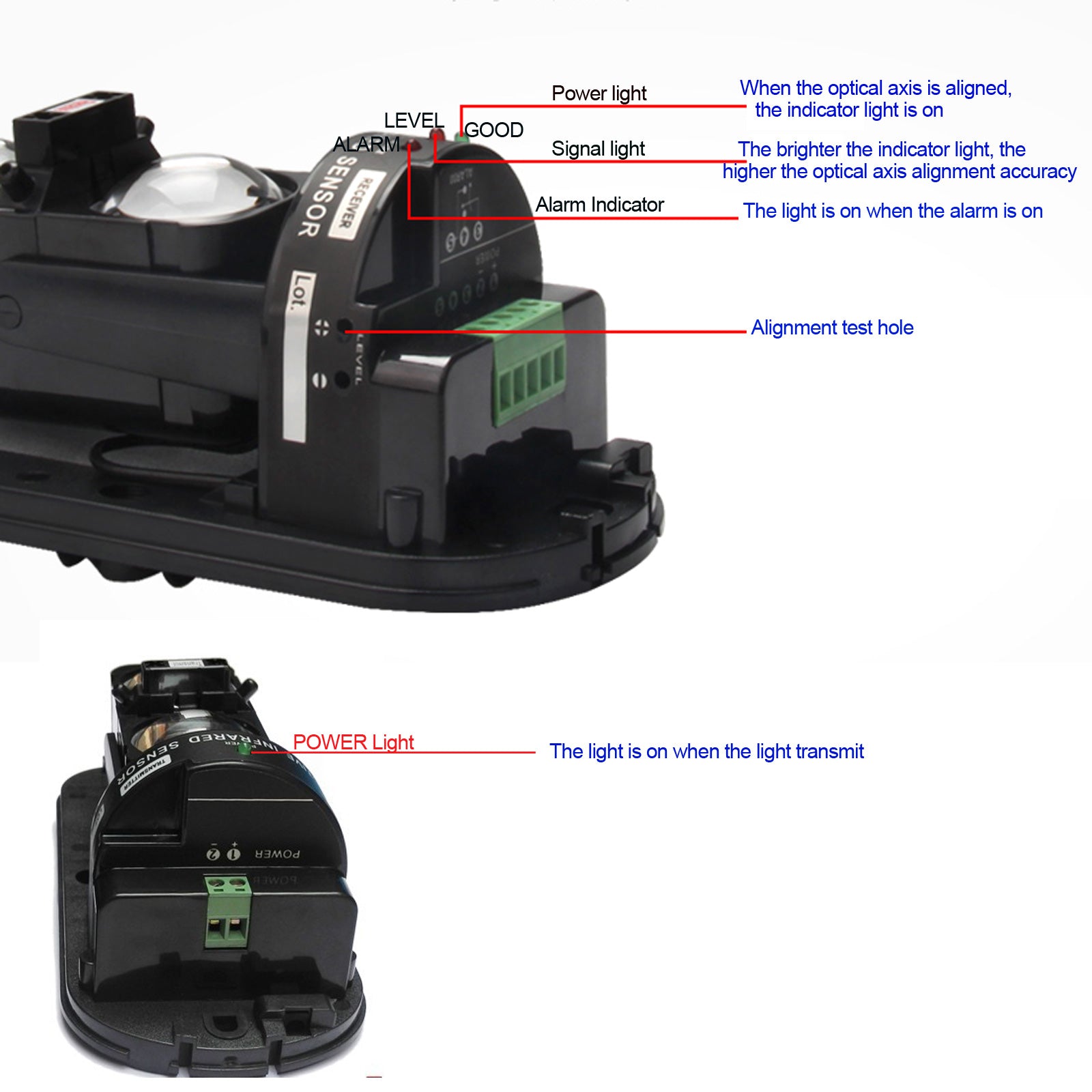

This kit requires wiring and careful sensor alignment. Please choose the correct siren voltage option before ordering.
Key Specifications
Quickly compare the most important details before ordering.
Product Highlights
Key features that help you decide whether this model fits your use.

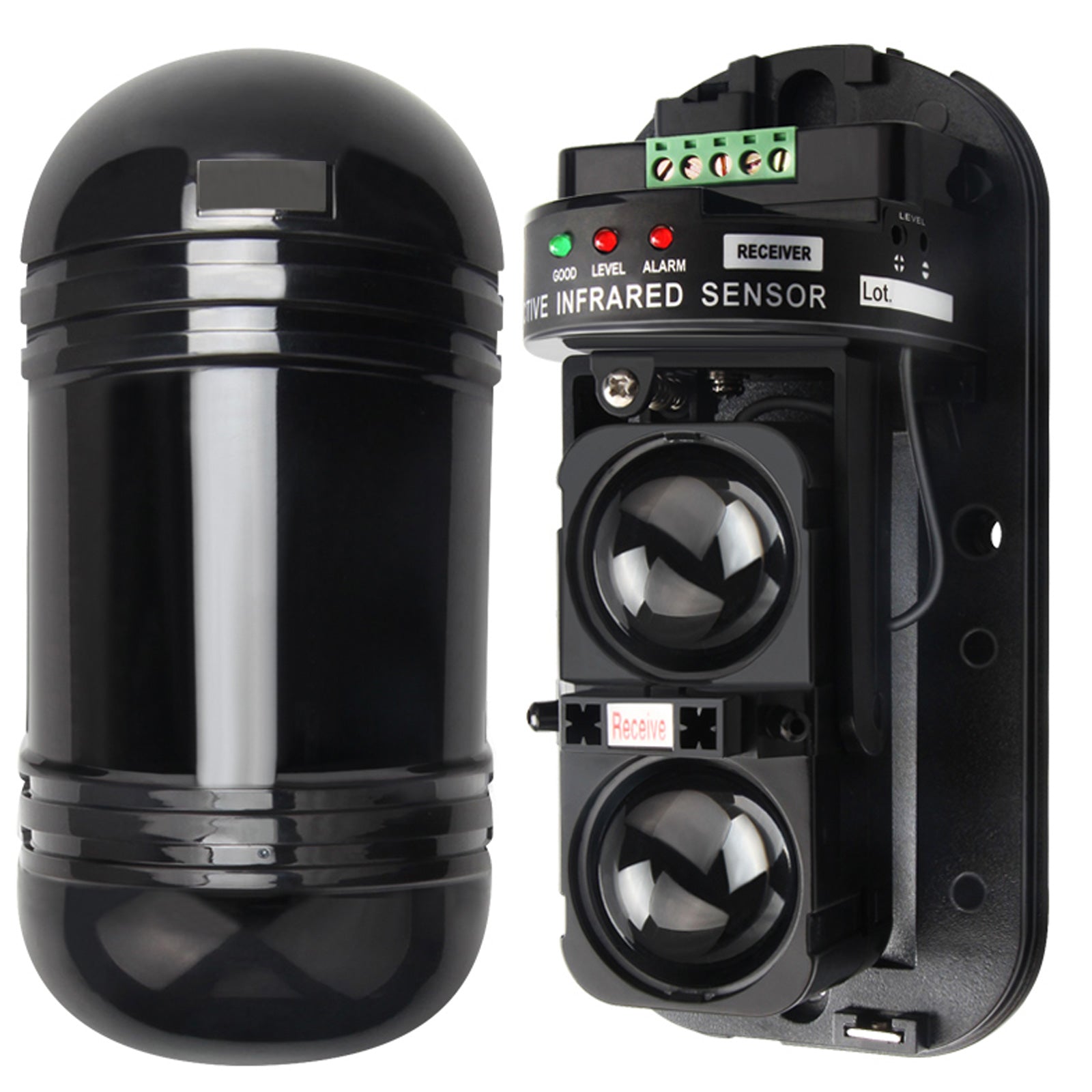

Beam-Break Detection
The system uses a transmitter and receiver to create invisible infrared beams. When both beams are blocked at the same time, the detector triggers the alarm signal.
100m Outdoor Coverage

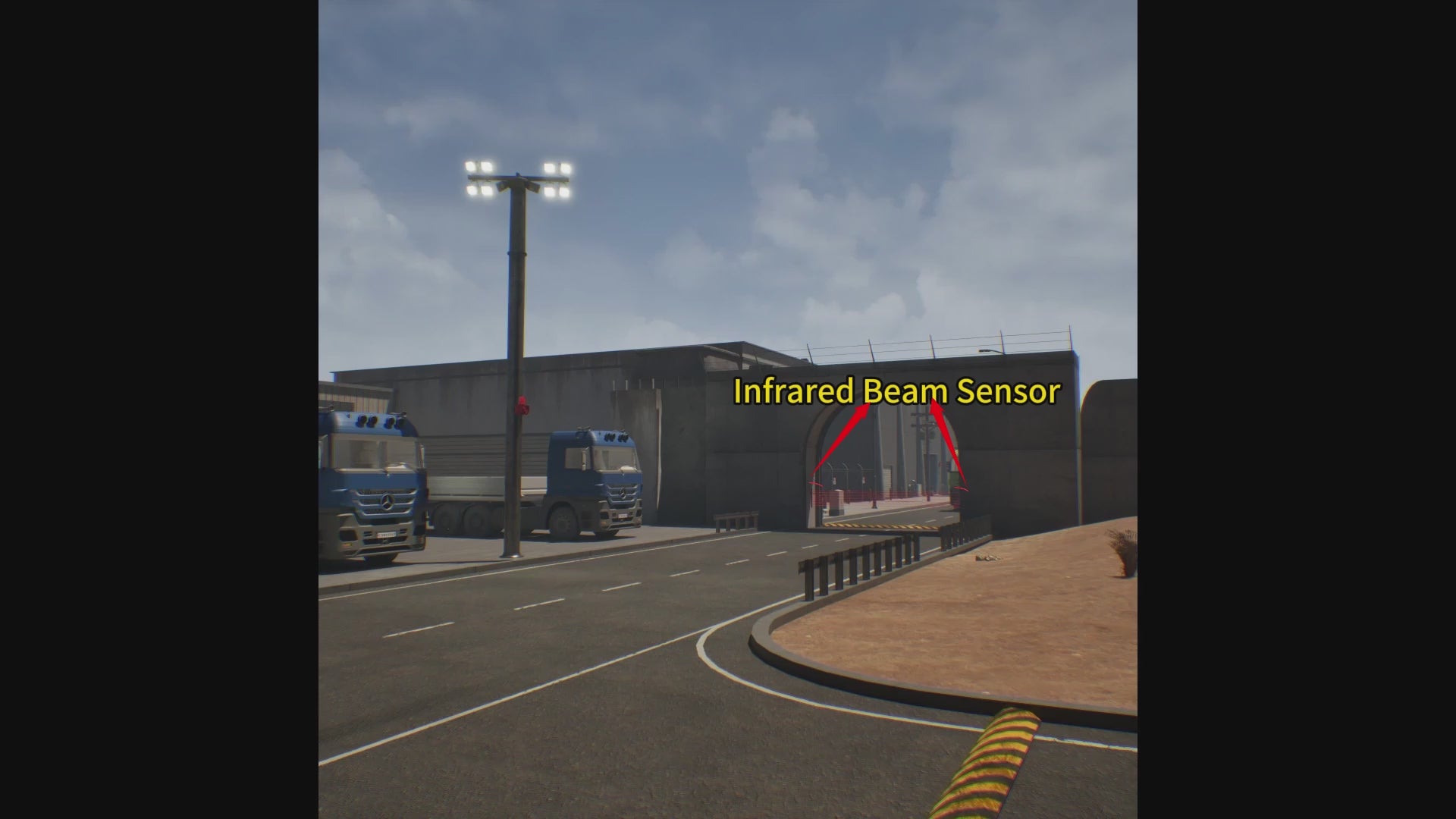

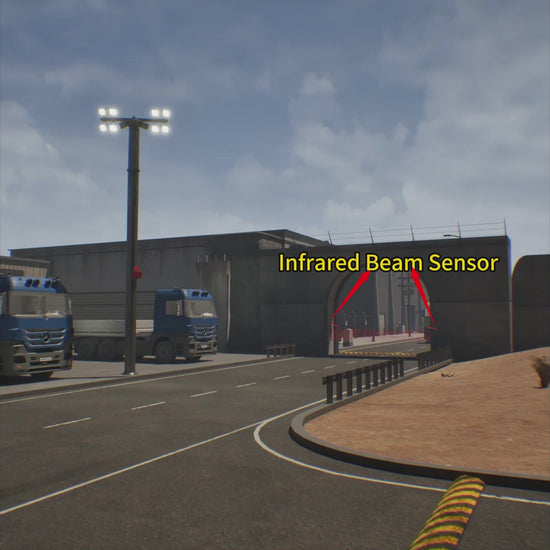

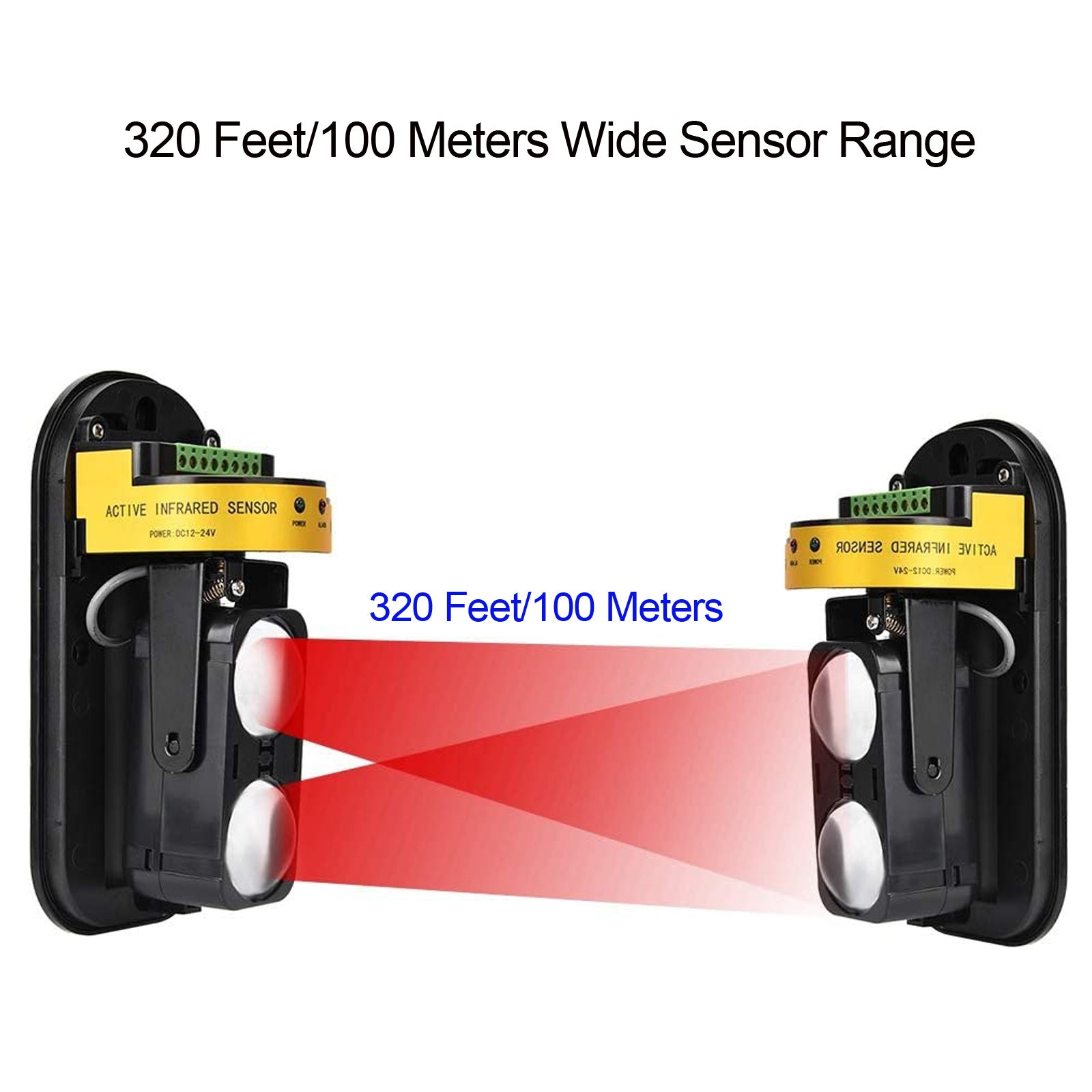

The ABT-100 infrared detector supports up to 100m / 320ft detection distance outdoors. It is suitable for perimeter protection around factories, yards, schools and construction sites.

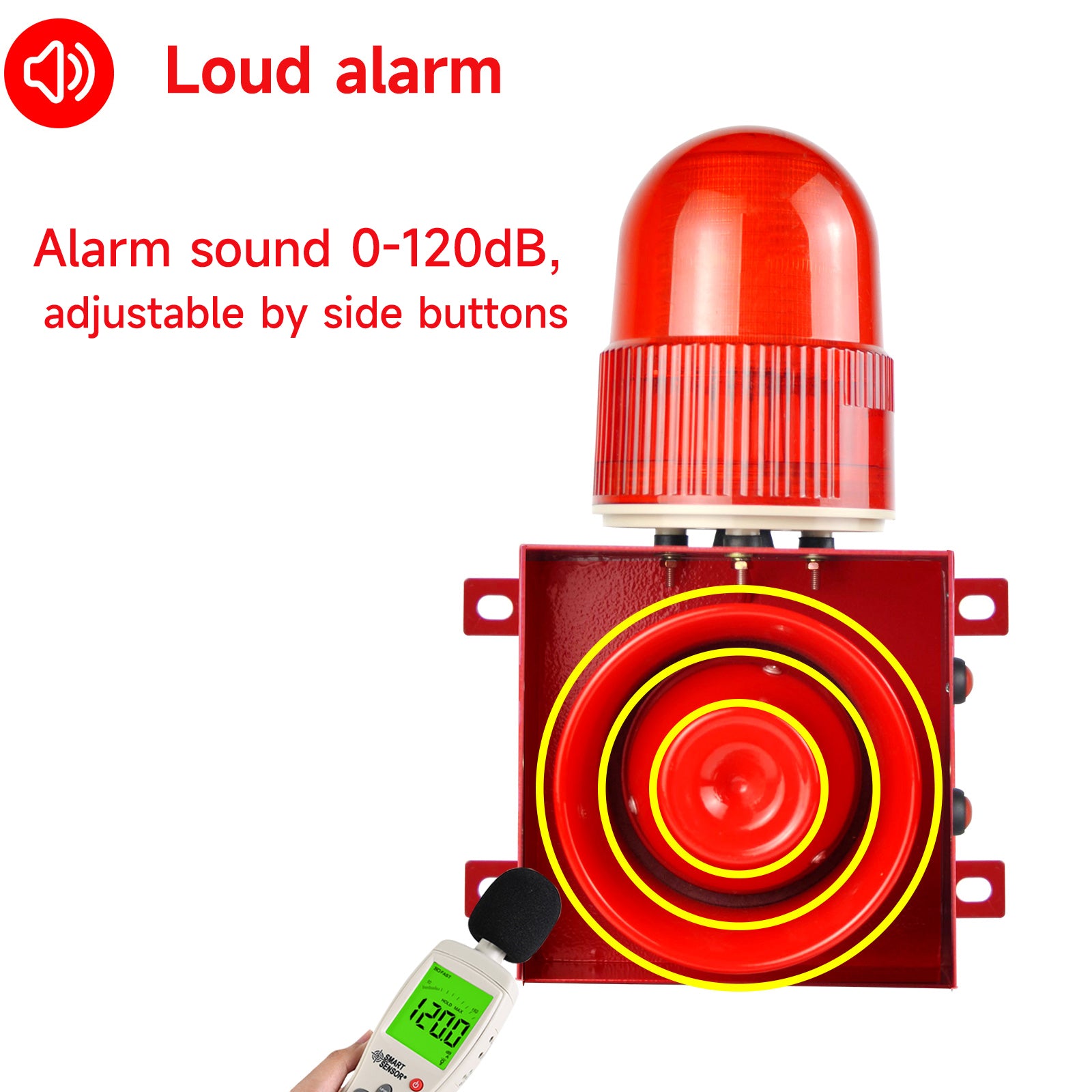

Adjustable 120dB Siren

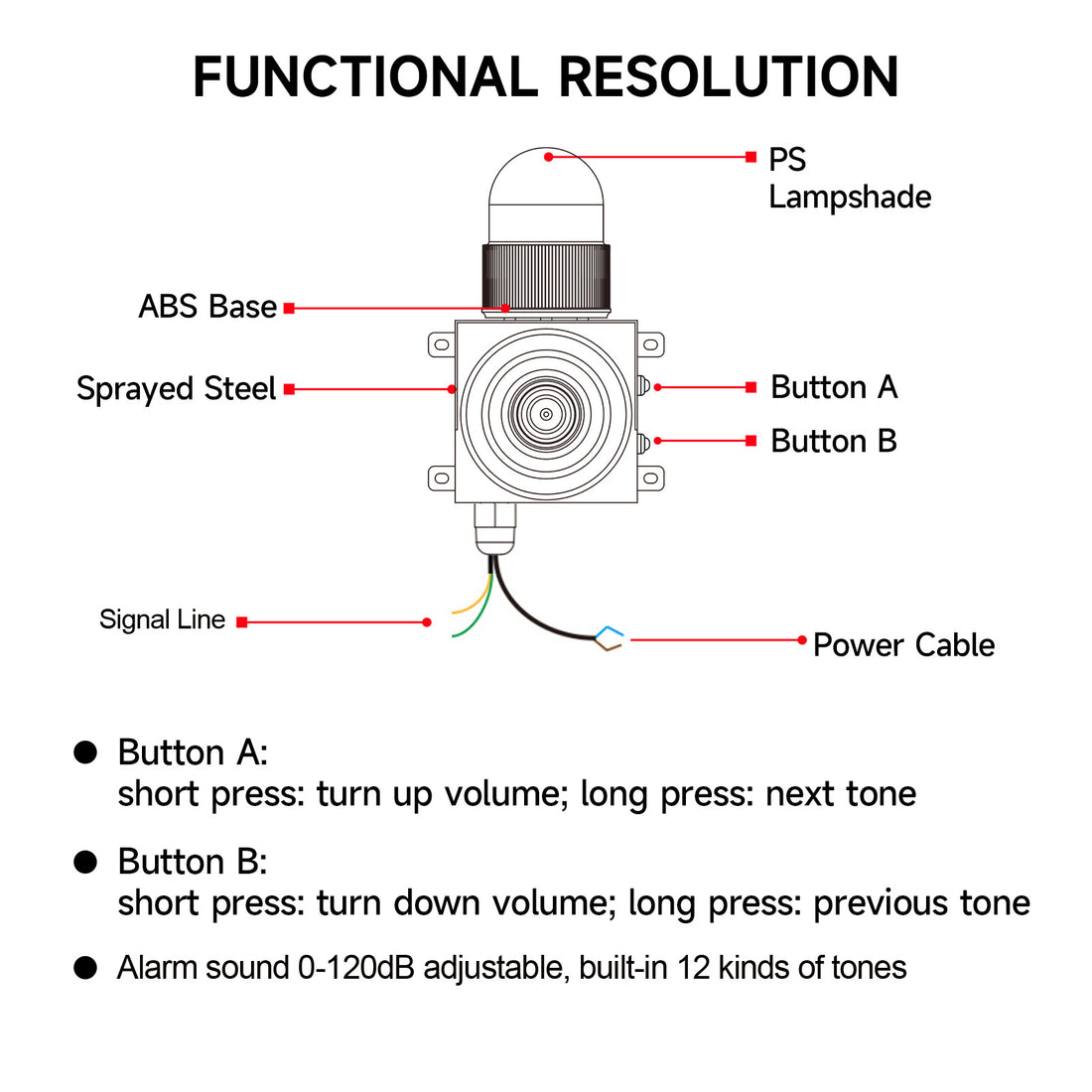

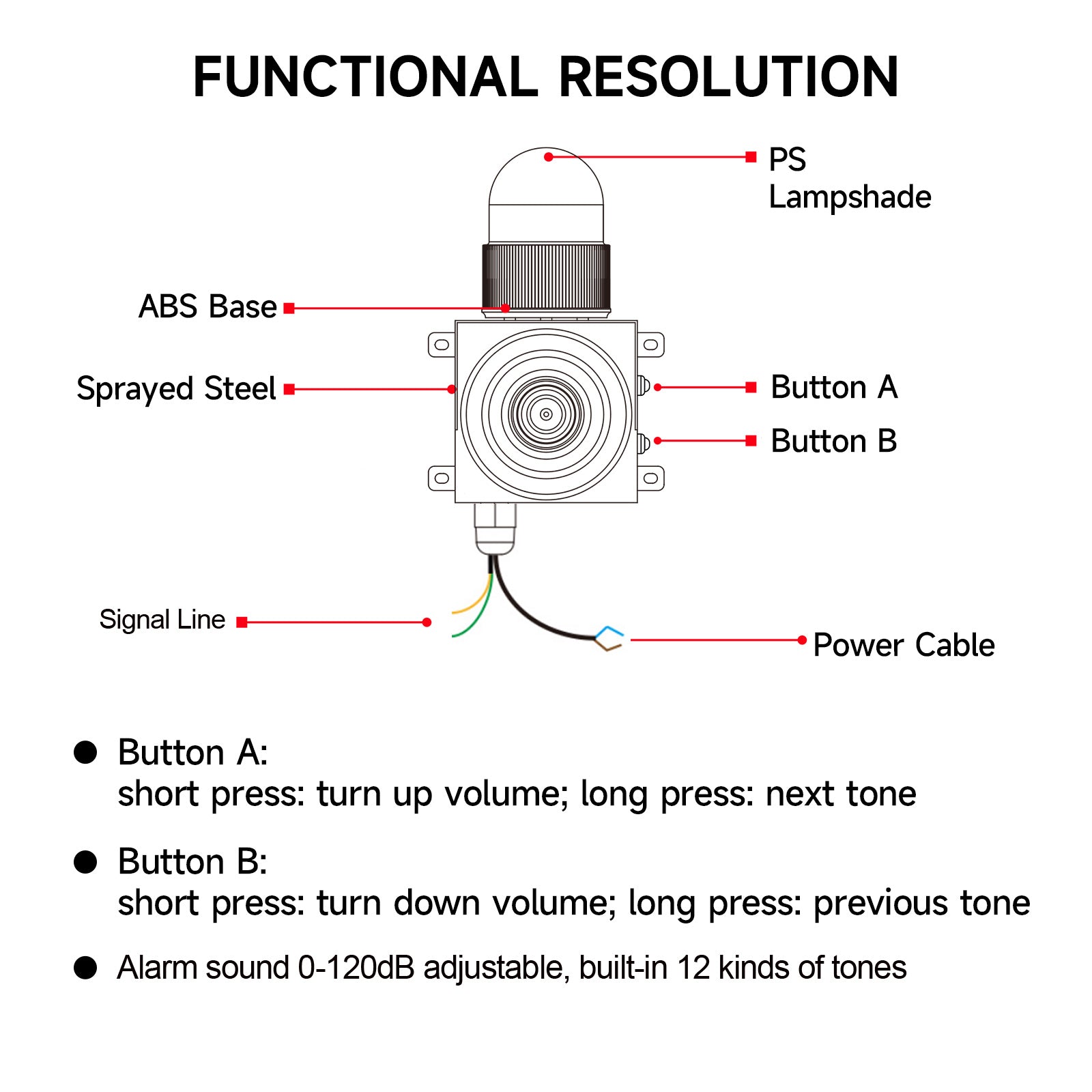

The alarm host provides 0โ120dB adjustable sound output. Short press adjusts volume, and long press changes the alarm tone.
LED Strobe Warning
The siren includes high-brightness LED beads for visual warning in low-light conditions. Sound and flashing light work together to alert nearby people.
Outdoor Security Kit

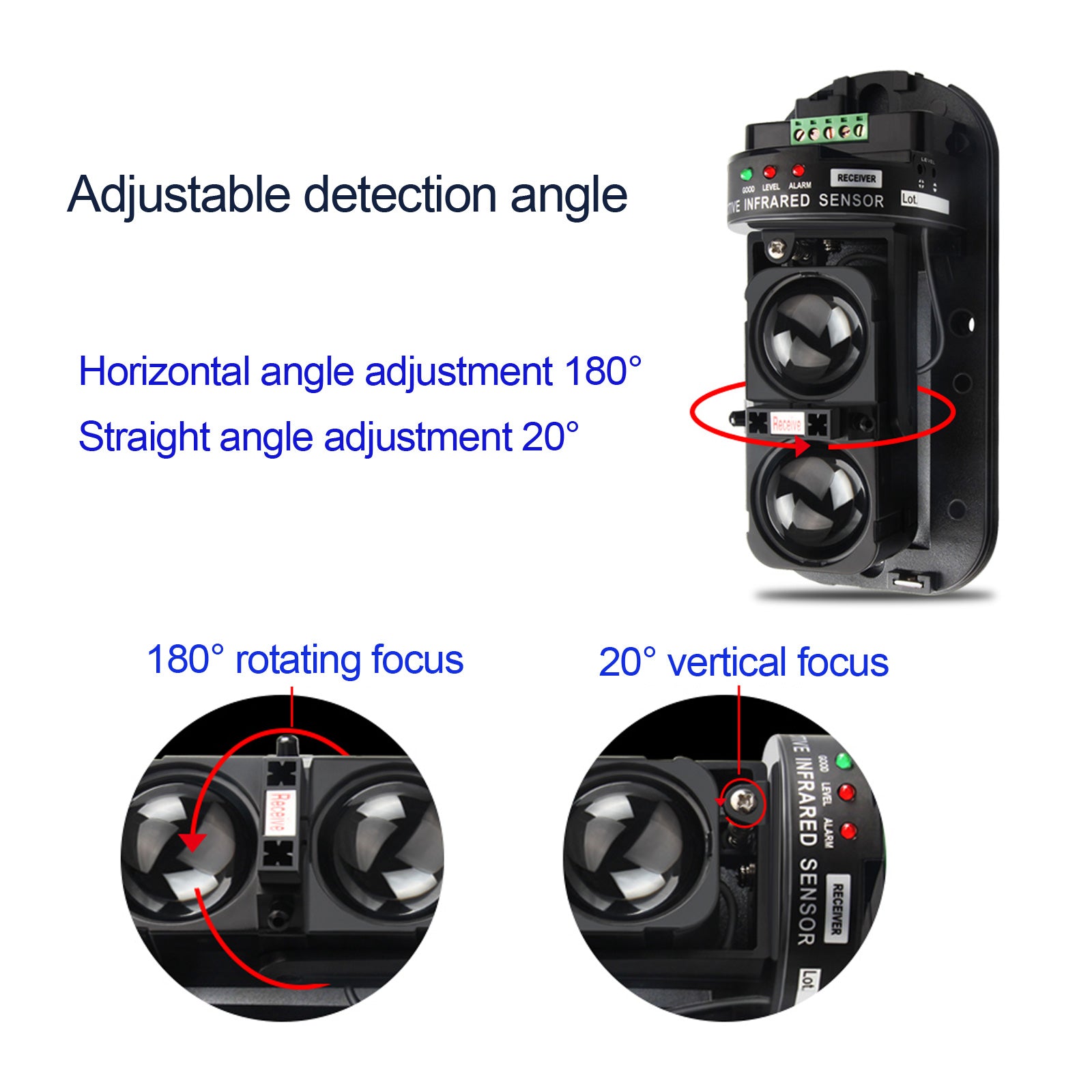

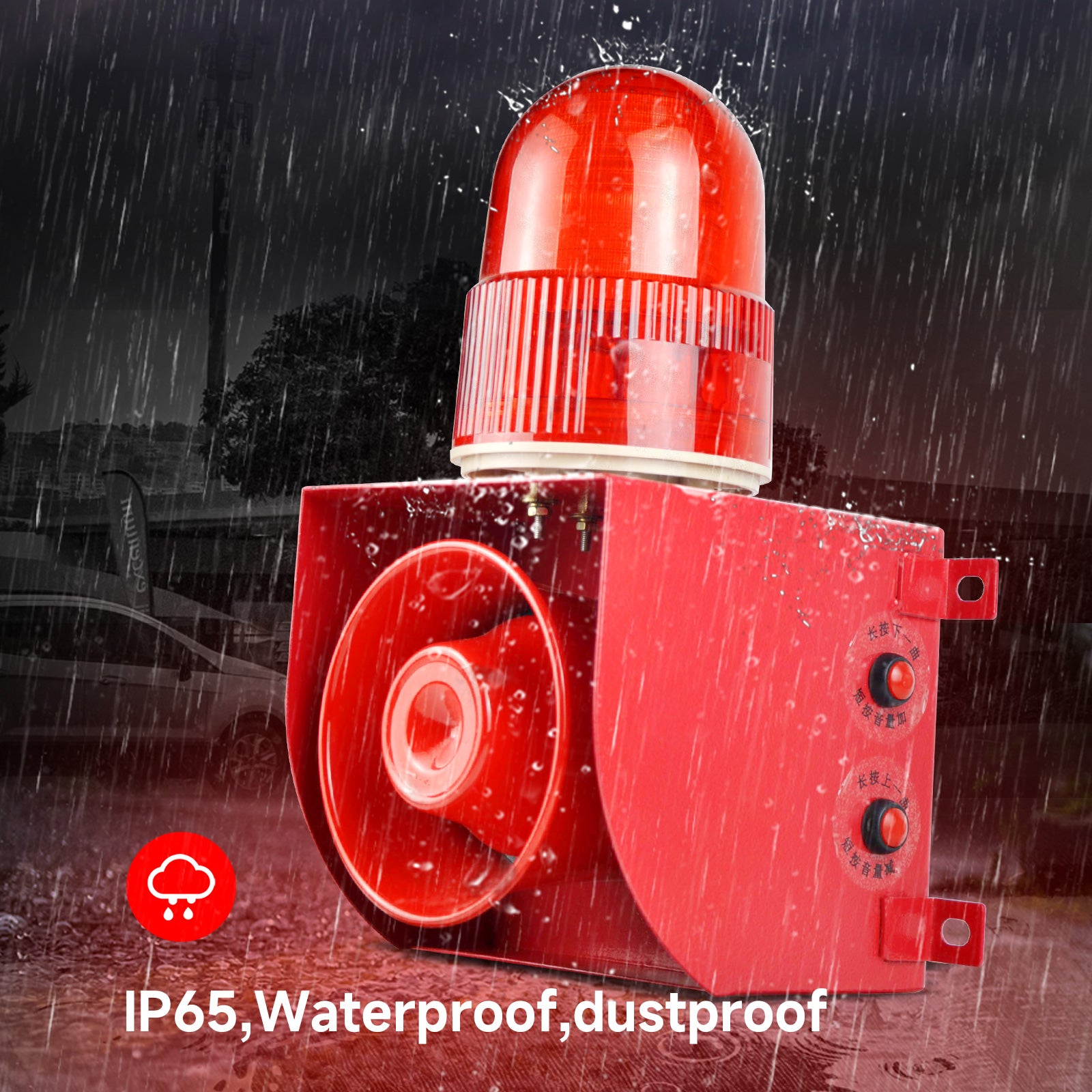

The siren has an IP65 waterproof housing and a cold-rolled steel body. The detector supports digital pulse infrared sensing, adjustable response speed and 180ยฐ horizontal lens adjustment.
Full Product Specifications
Detailed specifications for installation, comparison and compatibility checks.
- Product Type
- Infrared Beam Alarm Kit
- Input Voltage
- Siren: AC110Vโ120V; voltage variants also show DC12V / DC24V / AC110V / AC220V; infrared detector: DC10.5โ28V
- Power
- Siren: 25W
- Working Current
- Siren: <1A
- Sound Level
- 0โ120dB adjustable
- Tone
- 12 tones
- Volume Adjustment
- Adjustable by button
- Alarm Mode
- Audible and visual alarm
- Trigger Mode
- Dual-beam infrared interruption trigger
- Control Mode
- Infrared detector signal control
- Work Mode
- Beam-break detection triggers siren and LED strobe alarm
- Light Source
- LED beads; detector light source: digital pulse infrared
- Lighting Mode
- LED strobe
- Protection Rating
- Siren: IP65
- Installation Method
- Wall-mounted installation
- Operating Temperature Range
- -40ยฐC to 70ยฐC
- Material
- Siren: cold-rolled steel; detector: ABS
- Net Weight
- 8 kg
- Detection Range
- 100 m / 320 ft
- Induction Angle
- Horizontal adjustment axis: 180ยฐ ยฑ 90ยฐ
- USB Interface
- Supports custom alarm sound upload
- Typical Application Scenarios
- Factories, warehouses, schools, office buildings, farms, gardens, residential villas, construction sites, docks, perimeter gates, outdoor security zones
- Tips
- This kit requires wiring and correct alignment between the infrared transmitter and receiver. The detector input voltage is DC10.5โ28V, while the siren voltage must be selected separately before ordering.
- Customization
- USB custom alarm sound upload; voltage variants available: DC12V, DC24V, AC110V, AC220V
