Best for

Ethernet-controlled alarm systems

A good choice if you need
  • Adjustable sound: 0-120dB(Adjustable)
  • Multiple alarm tones
  • Custom alarm audio upload
  • Audible + visual warning
How it works
  1. Standby after power and network connection; triggered by wired network command to activate sound and LED strobe
YASONG Alarm
RJ45 Network

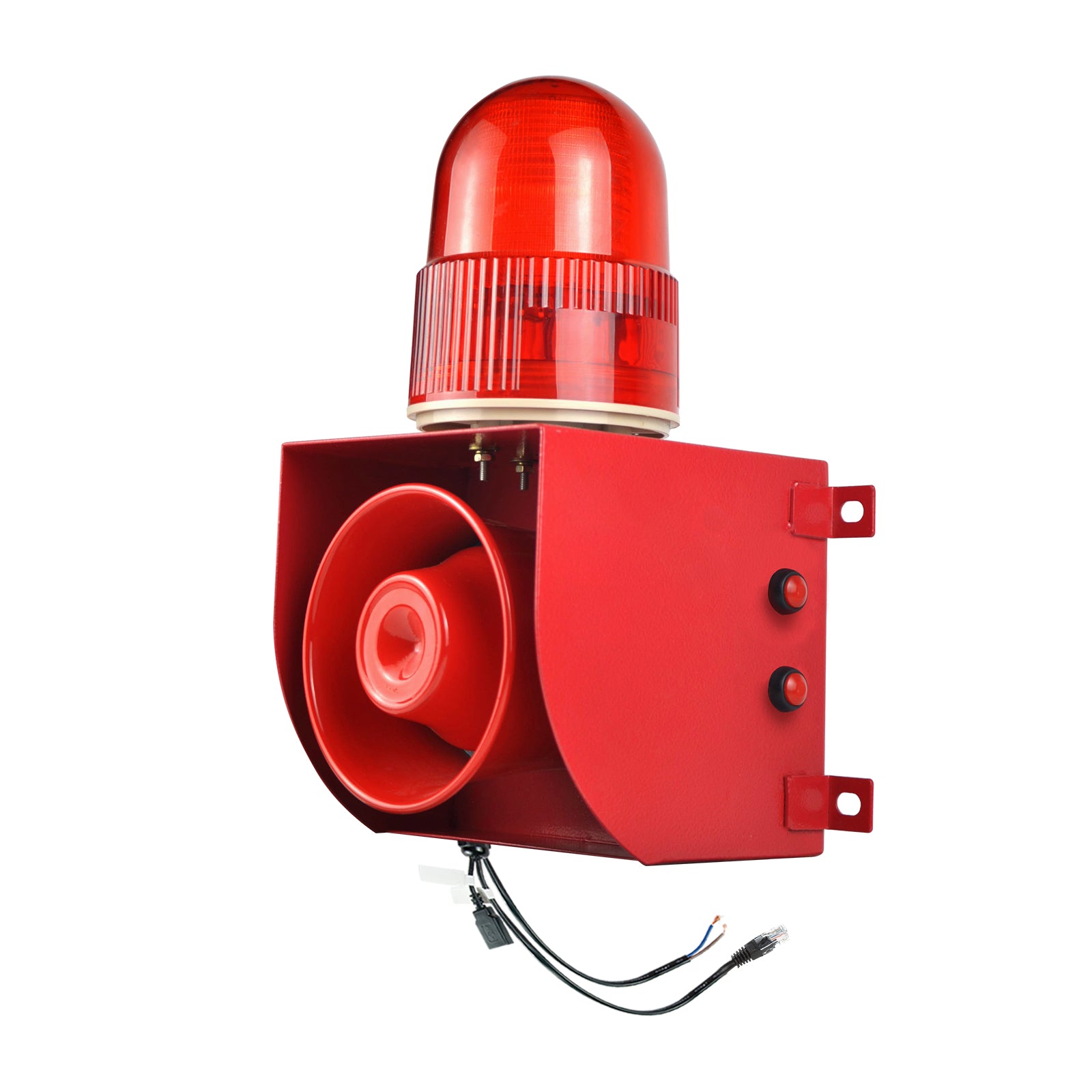

YASONG SLA-01H-L 120dB RJ45 Network Alarm Siren, 25W, IP65, USB Upload, LED Strobe, Wall Mount

0-120dB(Adjustable) 25W IP65 Audible + visual warning
Best for

Ethernet-controlled alarm systems

A good choice if you need
  • Adjustable sound: 0-120dB(Adjustable)
  • Multiple alarm tones
  • Custom alarm audio upload
  • Audible + visual warning
How it works
  1. Standby after power and network connection; triggered by wired network command to activate sound and LED strobe
$135.00
Voltage

Choose the voltage that matches your available power supply.

Product Size
Shipping Estimate
Ready to ship Most orders are prepared in 1–2 business days.
Transit time Fast transit from 5 business days, depending on destination and shipping method.

Select a destination to view the available shipping estimate.

Get Product & Shipping Quote
Before You Buy

Please confirm the correct voltage and network control requirements before ordering. This alarm requires RJ45 wired network integration and client-side platform development to issue control commands.

View FAQ & Policy
Need another control method? See other alarm options →

Is this model right for you?

Check the capabilities that matter before you choose a configuration.

If you need This model
Adjustable volume ✓
Multiple selectable tones ✓
Custom alarm audio ✓
Audible + visual warning ✓
IP65 protection ✓

Why choose this model?

The features that most directly affect how this model works and where it fits.

RJ45 Network Command Control

The SLA-01H-L uses an RJ45 Ethernet port for wired data transmission. It is triggered by commands sent through a client-side platform using the TCP underlying protocol.

Secondary Development Required

The product page states that clients need to develop their own platforms to issue control commands. This model is more suitable for users with network alarm system integration capability.

Adjustable 120dB Sound

The alarm supports a 0–120dB adjustable sound range with default multi-tone options. This helps match warning levels to different industrial and commercial environments.

Key Specifications

Quick technical checks before ordering.

Sound Level
0-120dB(Adjustable)
Power
25W
Trigger Mode
Wired network command trigger through RJ45 Ethernet
Control Mode
Client-side platform command control through TCP underlying protocol
Alarm Mode
Audible & visual alarm
Tone
Default multi-tone
Volume Adjustment
0–120dB adjustable
Protection Rating
IP65
Installation Method
Wall-mounted installation
Input Voltage
DC12V / DC24V / AC110V / AC220V / AC380V

Product Overview

The YASONG SLA-01H-L RJ45 network alarm siren combines a 0–120dB adjustable horn, RJ45 Ethernet command control and LED strobe warning light for factories, warehouses, workshops, campuses, geological disaster warning areas and industrial security systems.

This model works by wired network command activation: after power and network wiring are connected, the alarm can be triggered by commands sent through the RJ45 Ethernet interface using the TCP underlying protocol.

  • RJ45 Ethernet connectivity for wired network alarm integration
  • 0–120dB adjustable sound with default multi-tone options
  • 25W alarm power for fixed industrial warning points
  • USB sound upload for personalized alarm sounds
  • IP65 waterproof housing for indoor and outdoor industrial use

Please confirm the correct voltage and network control requirements before ordering. This alarm requires wiring and client-side platform development to issue control commands.

Full Technical SpecificationsDetailed product data from the available product information.
Product Type
RJ45 Network Alarm Siren
Input Voltage
DC12V / DC24V / AC110V / AC220V / AC380V
Power
25W
Sound Level
0-120dB(Adjustable)
Tone
Default multi-tone
Volume Adjustment
0–120dB adjustable
Alarm Mode
Audible & visual alarm
Trigger Mode
Wired network command trigger through RJ45 Ethernet
Control Mode
Client-side platform command control through TCP underlying protocol
Work Mode
Standby after power and network connection; triggered by wired network command to activate sound and LED strobe
Light Source
LED Beads
Lighting Mode
LED Strobe
Protection Rating
IP65
Installation Method
Wall-mounted installation
Operating Temperature
-40℃-70℃

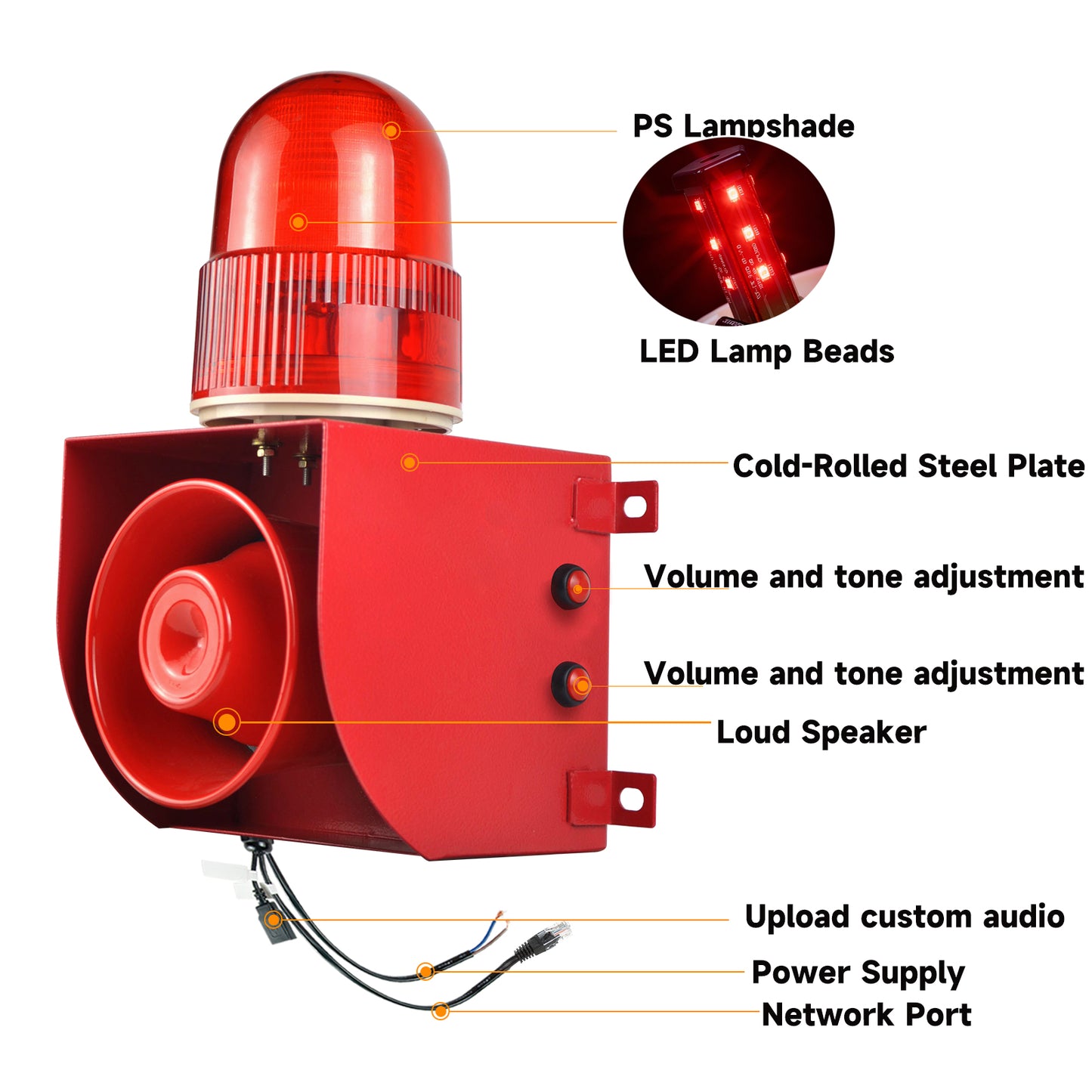

Material
Shell: Cold-rolled steel sheet； Lampshade: PS
Net Weight
3.1kg（1pcs）
Package Dimensions
44cm*23cm*24cm(1Pcs);
46cm*44cm*25cm(2Pcs);
46cm*44cm*48cm(4Pcs);
USB Interface
Upload Custom Alarm Sounds
Application Scenarios
Factories, warehouses, workshops, campuses, geological disaster warning areas, industrial security systems, commercial warning systems, wired network alarm systems
Customization
USB custom alarm sounds, voltage options
