RS-485 Modbus Control
The SLA-B02X is activated by commands sent through the RS-485 Modbus-RTU protocol. It is suitable for users who can develop or configure control software for networked alarm triggering.
Best for
IP54 Modbus warning systems
A good choice if you need
- PLC / RS485 control
- Adjustable sound: 0-120 dB
- Custom alarm audio upload
- Audible + visual warning
How it works
- PLC or controller sends a command
- The alarm receives the RS485 / Modbus signal
- The configured warning activates
YASONG Alarm
RS-485 Control
YASONG SLA-B02X 120dB RS-485 Modbus Alarm Siren, 25W, 12 Tones, IP54, USB Upload, LED Strobe
0-120 dB
25W
IP54
Best for
IP54 Modbus warning systems
A good choice if you need
- PLC / RS485 control
- Adjustable sound: 0-120 dB
- Custom alarm audio upload
- Audible + visual warning
How it works
- PLC or controller sends a command
- The alarm receives the RS485 / Modbus signal
- The configured warning activates
$113.00
Before You Buy
Please confirm the correct voltage before ordering. This alarm requires RS-485 Modbus-RTU control software development capability and wiring before use.
Need another control method?
See other alarm options →
Is this model right for you?
Check the capabilities that matter before you choose a configuration.
If you need
This model
PLC / RS485 control
✓
Adjustable volume
✓
Custom alarm audio
✓
Audible + visual warning
✓
IP54 protection
✓
Why choose this model?
The features that most directly affect how this model works and where it fits.
Standby After Power-On
After power is connected, the alarm remains in standby mode. It activates sound and LED strobe warning after receiving a valid RS-485 communication command.

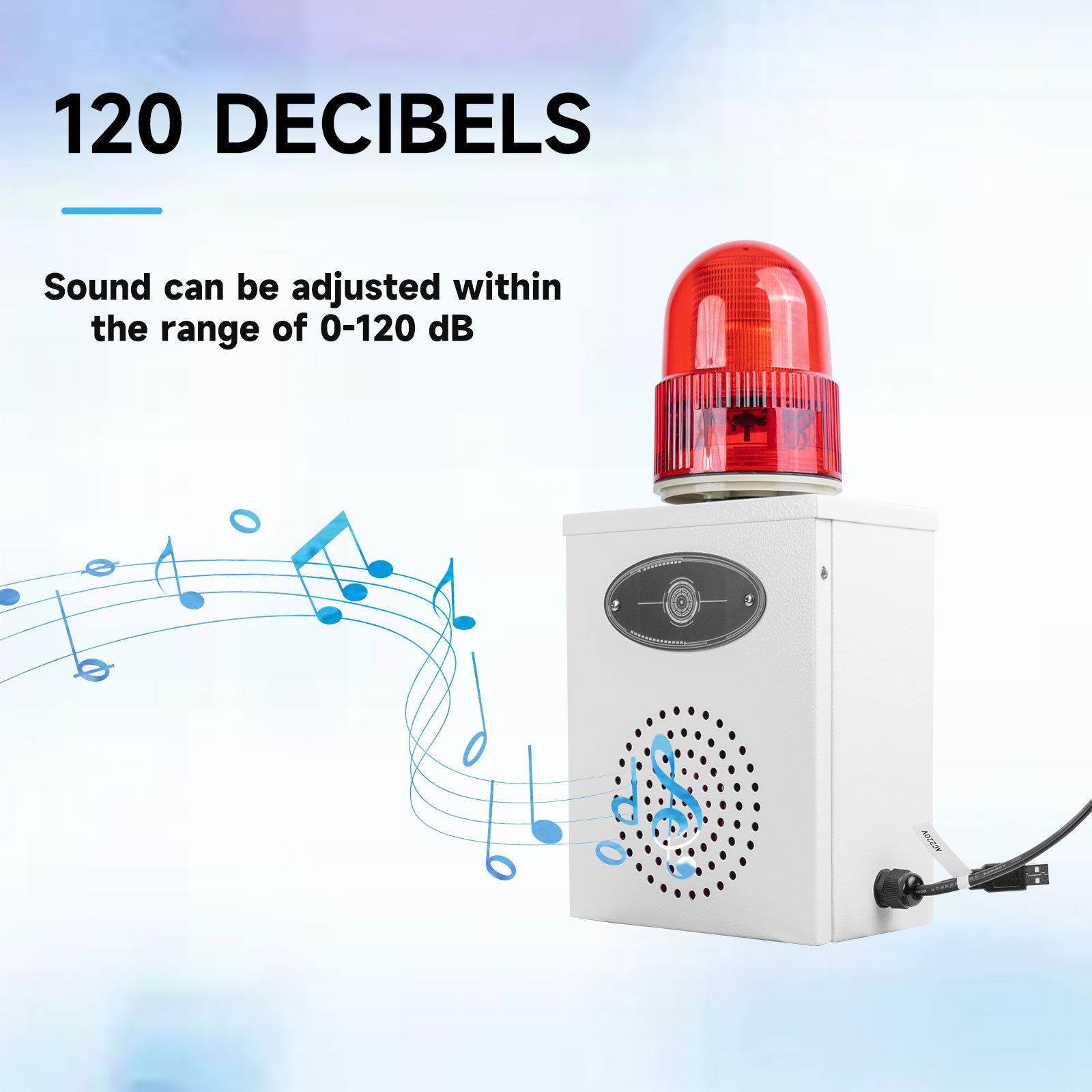

Adjustable 120dB Sound

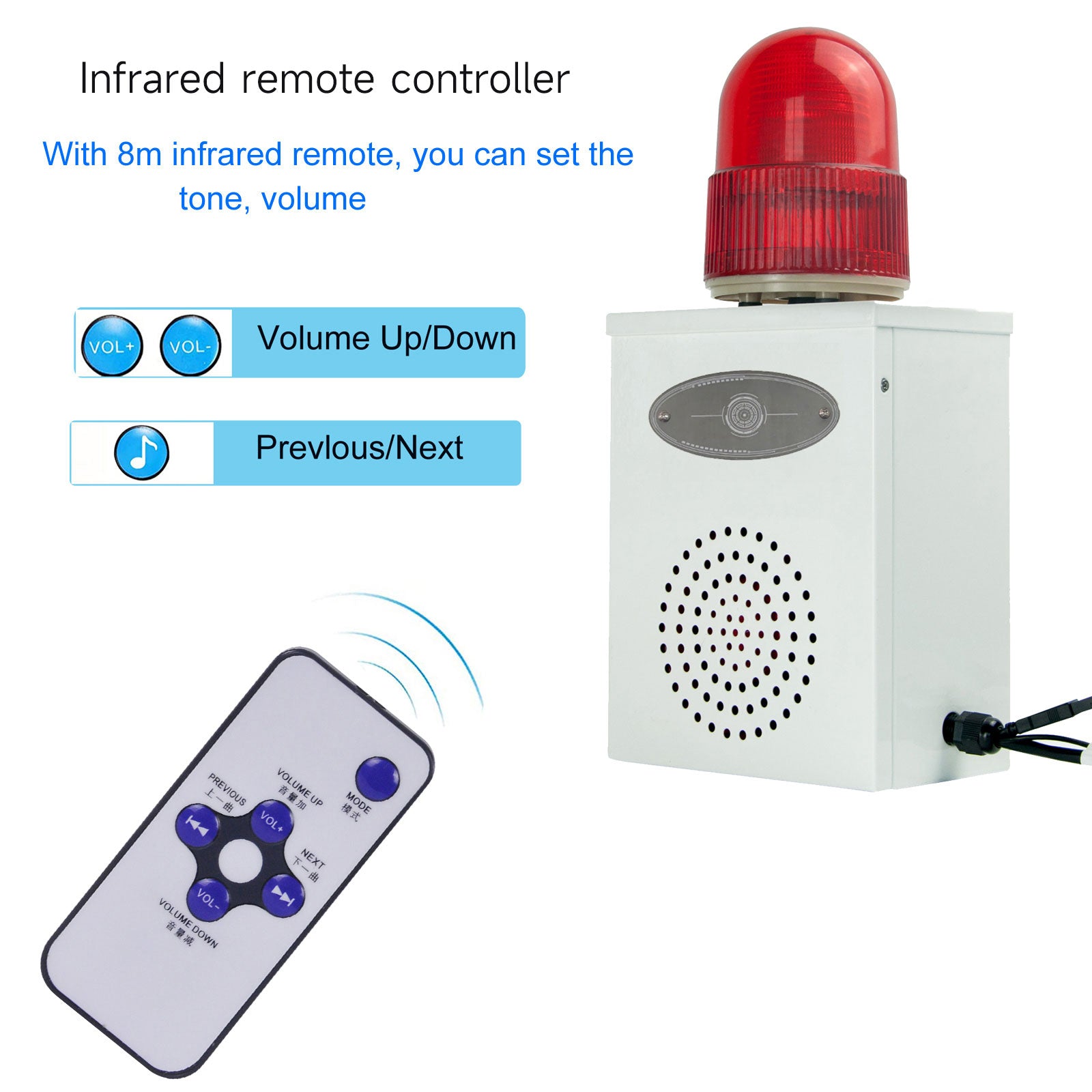

The alarm supports 0–120dB volume adjustment. Volume and tone can be adjusted by remote control or by sending commands through RS-485 control software.
Key Specifications
Quick technical checks before ordering.
- Sound Level
- 0-120 dB
- Power
- 25W
- Trigger Mode
- RS-485 Modbus-RTU protocol command trigger
- Control Mode
- Remote control and RS-485 Modbus-RTU command control
- Alarm Mode
- Sound and light alarm simultaneously
- Tone
- 12 adjustable tones
- Volume Adjustment
- 0–120dB, adjustable by remote control or RS-485 command
- Protection Rating
- IP54
- Installation Method
- Wall mounting & Bottom mounting
- Input Voltage
- DC12V / DC24V / AC110V / AC220V

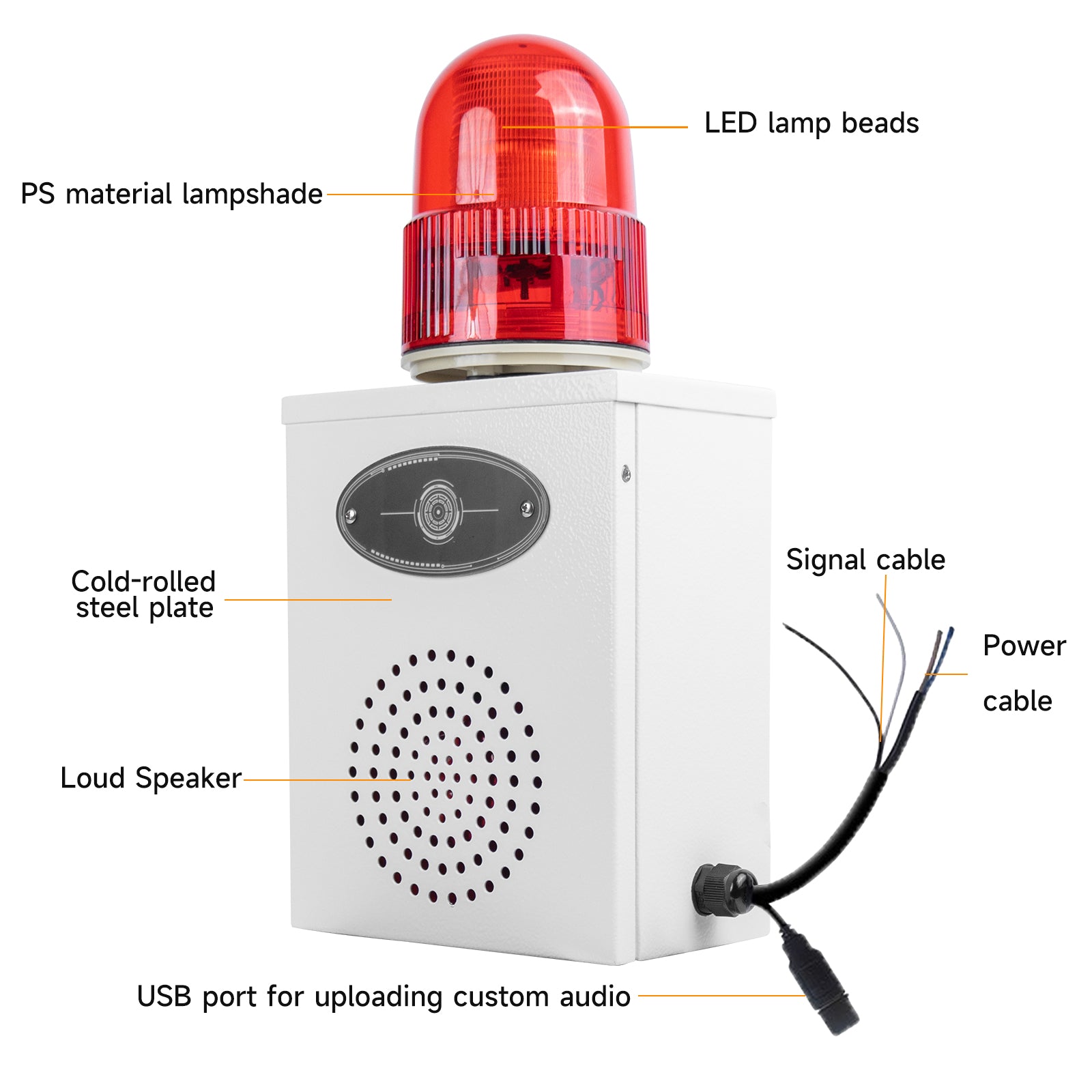

Product Overview

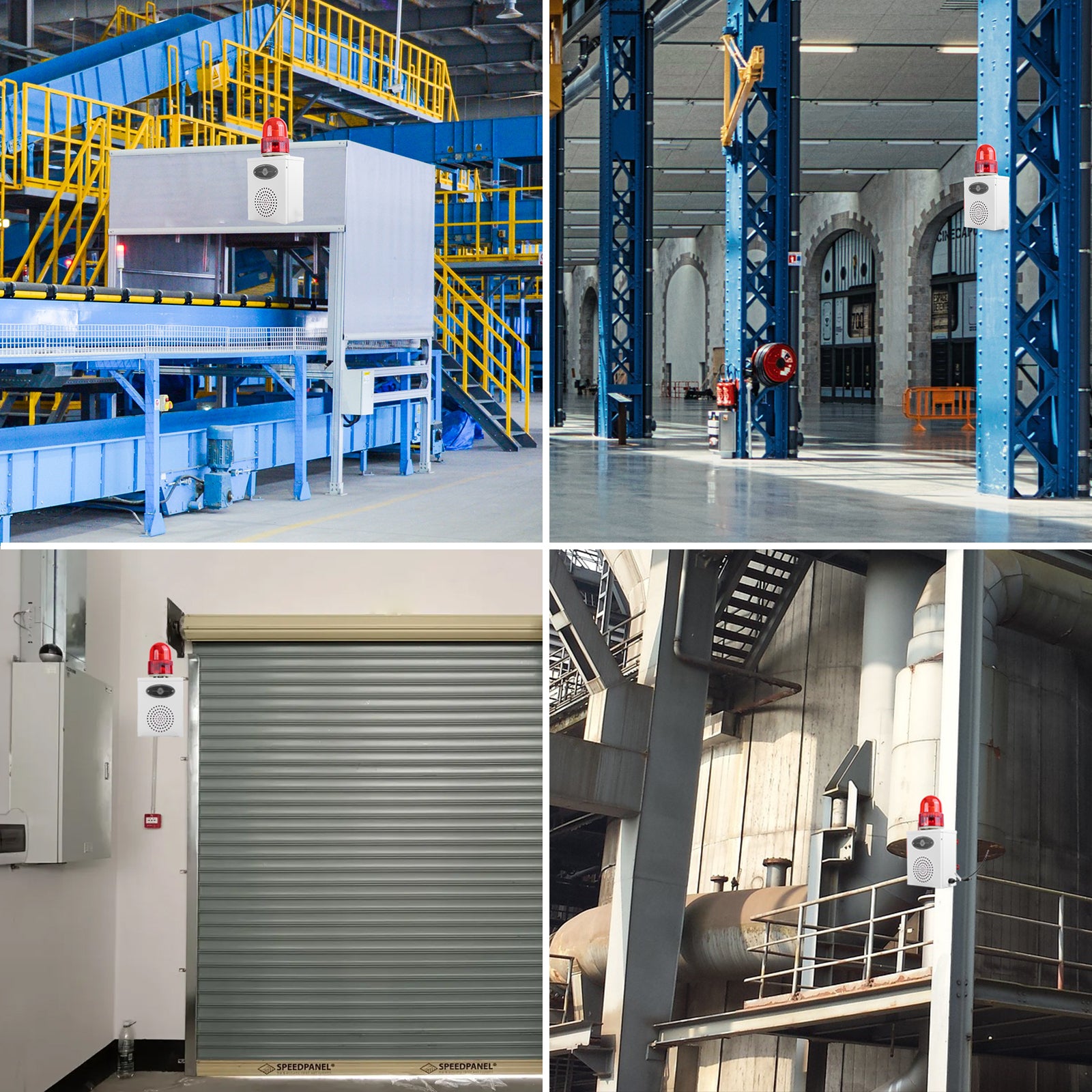

The YASONG SLA-B02X RS-485 Modbus alarm siren combines a 0–120dB adjustable horn, RS-485 Modbus-RTU protocol control and LED strobe warning light for factories, warehouses, corporate buildings, residential communities, retail stores and industrial warning systems.
This model works by RS-485 command activation: after power is connected, the alarm remains in standby mode and can be triggered by control software sending commands through the RS-485 communication protocol.
- RS-485 Modbus-RTU control with default 9600 baud rate
- 0–120dB adjustable sound by remote control or software command
- 12 adjustable tones for different warning scenarios
- USB sound upload for custom alarm audio
- LED strobe warning light for visible alarm indication
Please confirm the correct voltage and RS-485 control requirements before ordering. This alarm requires wiring and control software development capability before use.
Full Technical SpecificationsDetailed product data from the available product information.
- Product Type
- RS-485 Networked Alarm Siren
- Input Voltage
- DC12V / DC24V / AC110V / AC220V
- Power
- 25W
- Sound Level
- 0-120 dB
- Tone
- 12 adjustable tones
- Volume Adjustment
- 0–120dB, adjustable by remote control or RS-485 command
- Alarm Mode
- Sound and light alarm simultaneously
- Trigger Mode
- RS-485 Modbus-RTU protocol command trigger
- Control Mode
- Remote control and RS-485 Modbus-RTU command control
- Work Mode
- Standby after power-on; triggered by RS-485 command to activate sound and LED strobe
- Light Source
- LED
- Lighting Mode
- LED Strobe
- Protection Rating
- IP54
- Installation Method
- Wall mounting & Bottom mounting
- Operating Temperature
- -40℃ to 70℃
- Material
- Cold rolled steel
- Net Weight
- 3.8kg
- Package Dimensions
- 49cm*33cm*25cm(1pcs)
- USB Interface
- Upload custom audio
- Application Scenarios
- Factories, warehouses, corporate buildings, residential communities, retail stores, tornado warning systems, noisy industrial sites, networked warning systems
- Customization
- USB custom audio upload, voltage options
Need a different alarm?
If this control method or feature set is not what you need, start with the requirement that matters most.
Need help choosing?
Tell us your voltage, installation environment and preferred activation method. We can help you compare suitable options.
