Best for

Manual three-state Andon indication

A good choice if you need
  • Visual warning mode: Flashing / Steady-on
  • Audible + visual warning
  • IP65 protected installation
  • 5.3-inch pole with 2-hole L-bracket; switch and plug included
How it works

Flashing light or steady-on light, depending on variant

YASONG Alarm
3-Tier Andon

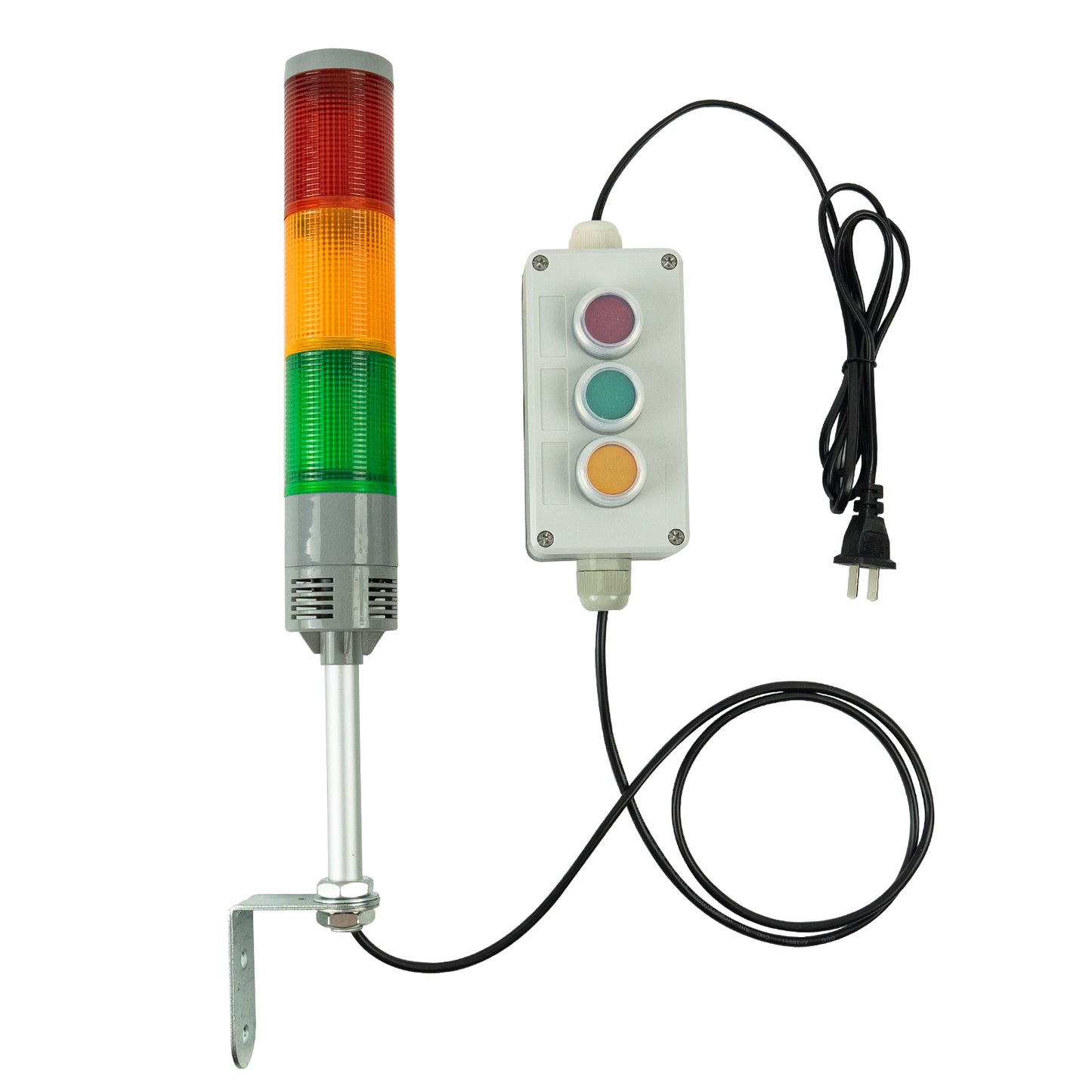

YASONG 3-Tier LED Andon Stack Tower Light, Red/Yellow/Green, Self-Locking Switch, Flash/Steady, Sound Optional, IP65

Red / Yellow / Green Self-Locking Switch Flash / Steady Sound / No Sound
Best for

Manual three-state Andon indication

A good choice if you need
  • Visual warning mode: Flashing / Steady-on
  • Audible + visual warning
  • IP65 protected installation
  • 5.3-inch pole with 2-hole L-bracket; switch and plug included
How it works

Flashing light or steady-on light, depending on variant

$58.99 $69.99
Voltage

Choose the voltage that matches your available power supply.

Lighting Mode
Sound
Shipping Estimate
Ready to ship Most orders are prepared in 1–2 business days.
Transit time Fast transit from 5 business days, depending on destination and shipping method.

Select a destination to view the available shipping estimate.

Get Product & Shipping Quote
Before You Buy

This model includes a self-locking switch and plug, so no additional wiring is required for normal use. Choose the correct voltage, lighting mode and sound option before ordering.

Is this model right for you?

Check the visual warning, control and installation features that matter for your application.

If you need This model
Visual warning / status indication ✓
Warning mode: Flashing / Steady-on ✓
Audible + visual warning ✓
IP65 protection ✓

Why choose this model?

The features that most directly affect how this model works and where it fits.

3-Color Andon Indication

The red, yellow and green LED layers provide three clearly separated visual signals for machine, production or process status indication.

Self-Locking Switch Control

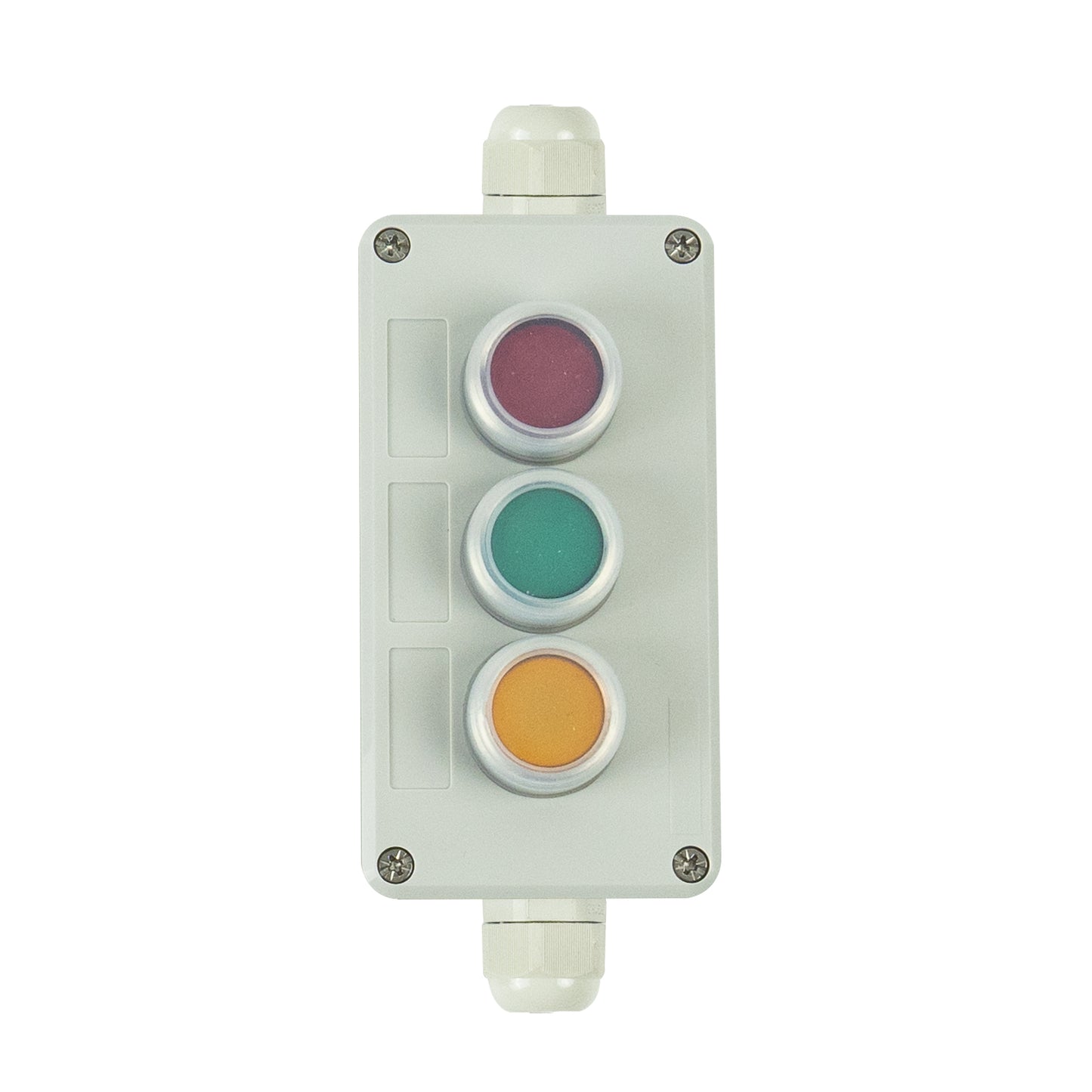

Press the red, yellow or green button on the included control box to activate the matching light layer. The self-locking design supports simple manual Andon operation.

Flashing or Steady Light

Choose either a flashing-light or steady-on configuration before ordering, depending on how the machine or process status needs to be displayed.

Key Specifications

Quick technical checks before ordering.

Lighting Mode
Flashing / Steady-on
Light Source
LED SMD lamp beads
Input Voltage
DC12V / DC24V / AC110V / AC220V
Alarm Mode
Visual signal; audible + visual indication for sound version
Control Mode

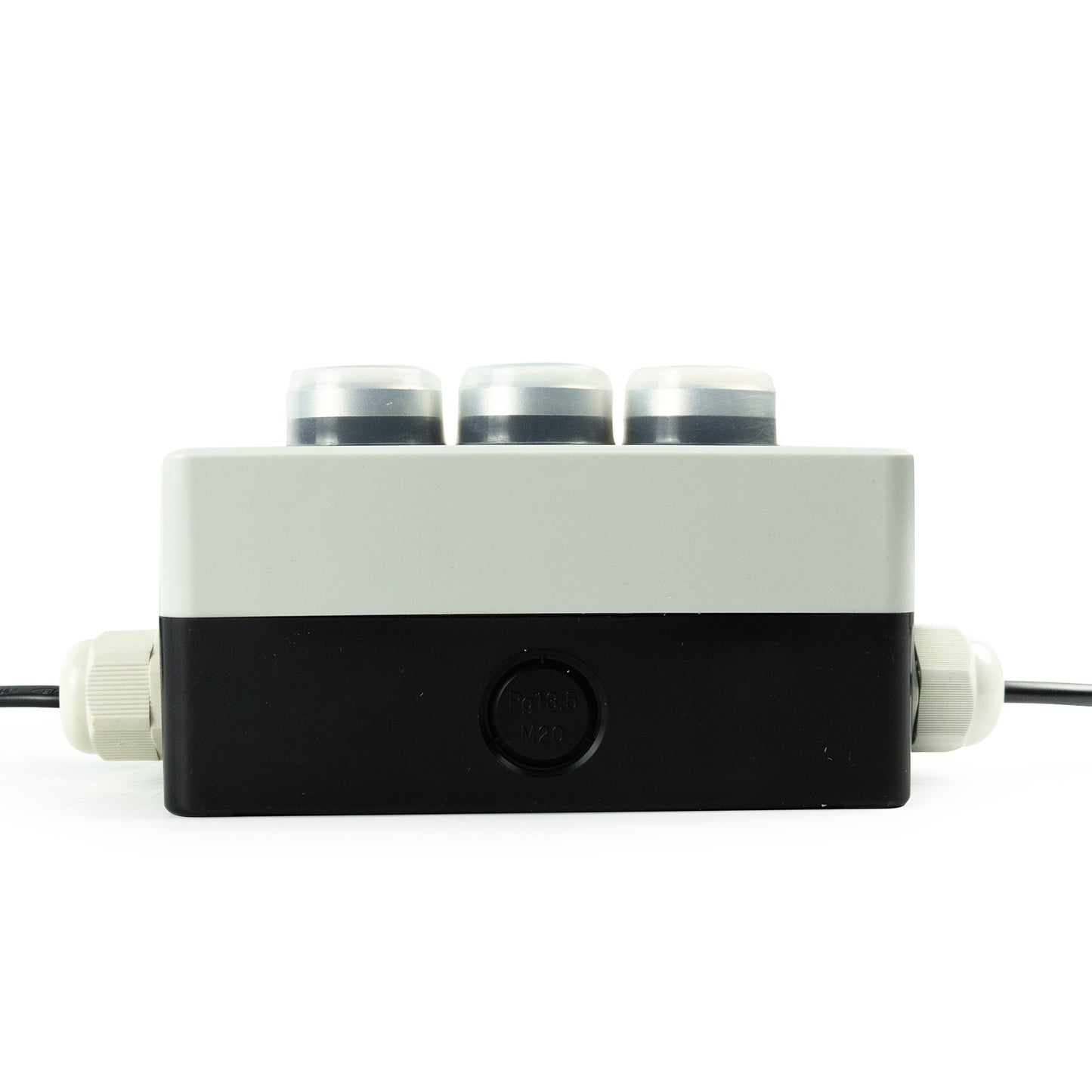

Self-locking switch control box
Trigger Mode
Self-locking switch trigger
Protection Rating
IP65
Installation Method
5.3-inch pole with 2-hole L-bracket; switch and plug included

Product Overview

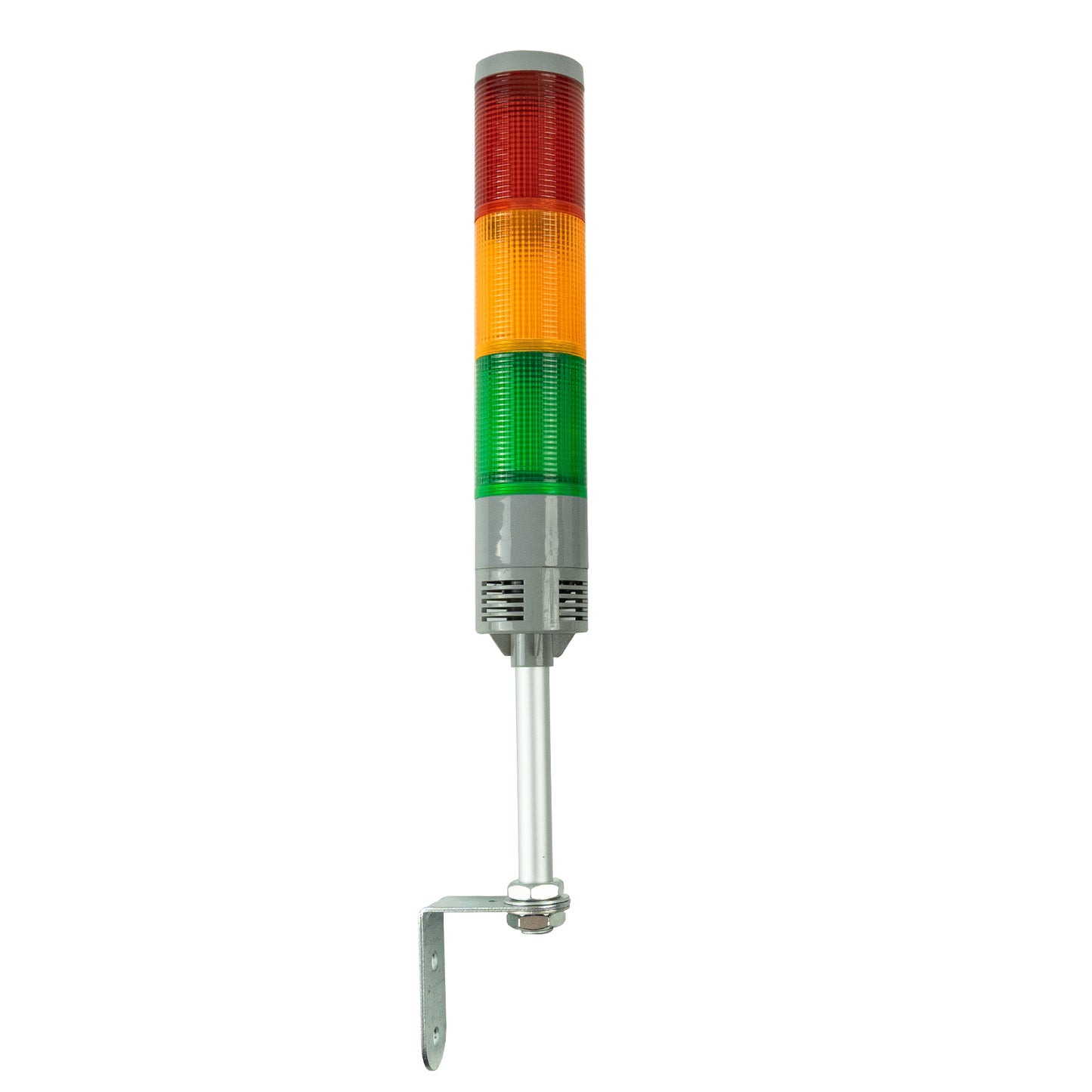

The YASONG 3-tier LED Andon stack light uses red, yellow and green signal layers for machine status indication, production lines and industrial work areas. The included self-locking switch box allows each color layer to be activated manually without additional control wiring.

Choose flashing or steady-on lighting and either a sound or no-sound version before ordering. DC12V, DC24V, AC110V and AC220V options are available for different installation requirements.

  • 3-tier red/yellow/green LED signal for clear status indication
  • Self-locking switch control for simple manual operation
  • Flashing or steady-on variants
  • Sound or no-sound options
  • IP65 housing with plug-in installation

This model includes a switch and plug, so no additional wiring is required for normal use. Please confirm the voltage, lighting mode and sound option before ordering.

Full Technical SpecificationsDetailed product data from the available product information.
Product Type
3-Tier Andon Stack Light
Input Voltage
DC12V / DC24V / AC110V / AC220V
Sound Level
Sound option available / No-sound option available
Volume Adjustment
Not adjustable
Alarm Mode
Visual signal; audible + visual indication for sound version
Trigger Mode
Self-locking switch trigger
Control Mode
Self-locking switch control box
Work Mode
Flashing light or steady-on light, depending on variant
Light Source
LED SMD lamp beads
Lighting Mode
Flashing / Steady-on
Protection Rating
IP65

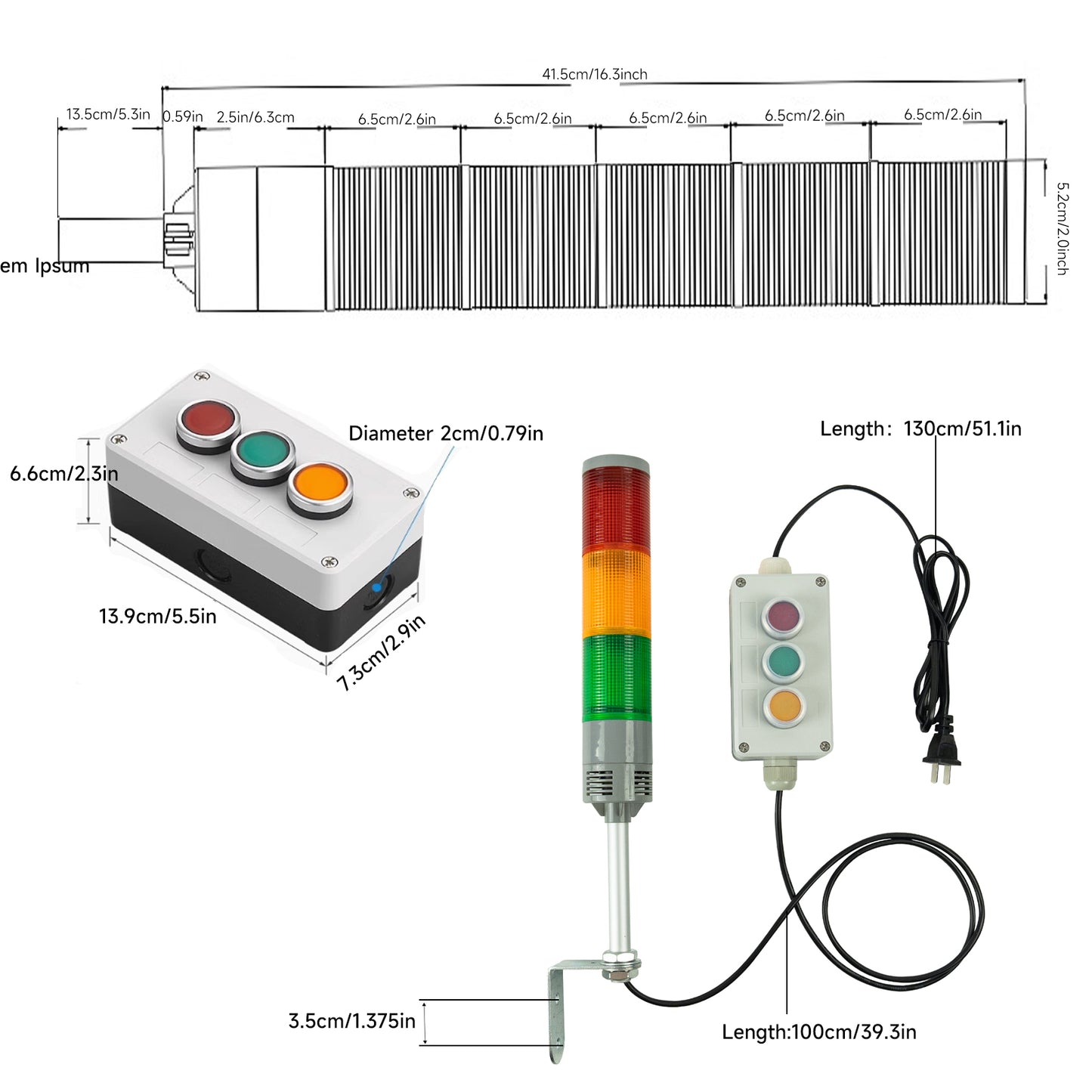

Installation Method
5.3-inch pole with 2-hole L-bracket; switch and plug included
Working Humidity
10%–90% RH
Material
Lampshade: PS; Base: ABS
Diameter
5.2 cm
Application Scenarios
CNC machines, machine tools, machining centers, textile machinery, automated production lines, laser equipment, factory equipment, warehouse equipment, manual Andon status indication
Customization
Different layer or color combinations and sound options available

Need help choosing?

Tell us your voltage, installation environment and preferred activation method. We can help you compare suitable options.
