YASONG Industrial Crane Laser Anti-Collision System | 100m Detection, Audible & Visual Alarm, Dual-Side Monitoring for Steel Mills, Ports & Heavy Manufacturing

Advanced Laser Ranging Technology: Utilizes high-precision laser sensors to achieve reliable obstacle detection up to 100 meters, ensuring early warning and preventing collisions in complex environments.

Dual-Side Laser Detection: Features a dual-channel design that simultaneously monitors both sides of the crane. It provides comprehensive 360-degree spatial awareness to eliminate blind spots. Customers can choose to install a single sensor or dual sensors to integrate with the main control unit, perfectly matching your specific safety needs and budget.

Multi-Level Audible & Visual Alarms: Equipped with an integrated alarm system that triggers visual lights and audible warnings at different distance thresholds, giving operators sufficient reaction time.

Industrial-Grade Rugged Design: Specifically engineered for harsh metallurgical and outdoor environments. Highly resistant to dust, high temperatures, and electromagnetic interference, ensuring stable performance in steel & metal smelting plants, automobile manufacturing plants, heavy machinery manufacturing factories, paper mills, ports & terminals, large warehouses & logistics centers, power plants, hydropower stations, aircraft manufacturing plants

Non-Contact Safety Protection: Replaces traditional mechanical limit switches with contactless laser detection, significantly reducing maintenance costs and extending equipment lifespan.

Easy Integration & Installation: Designed for seamless retrofitting on existing rail-mounted cranes without disrupting daily operations.

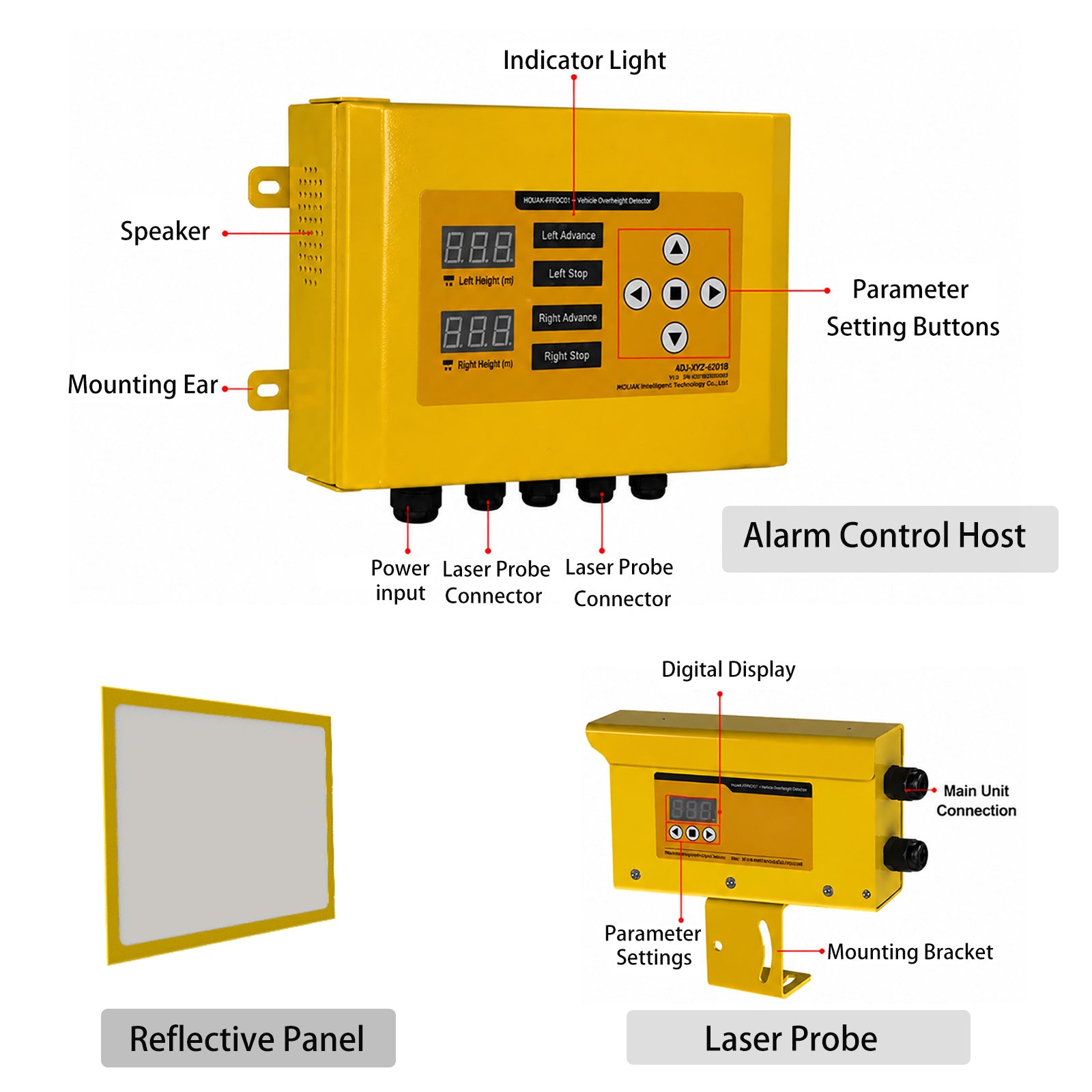

Main Unit Technical Specifications

 Product Model: SLA-FZ7000
Working Voltage: AC220V
Max Power Consumption: 15W
Alarm Volume: 80dB
Detection Range: 0.5m – 100m
Detection Accuracy: ±2%
Response Time: <0.5s
Display Resolution: 0.1m
Display Refresh Rate: >2 times/sec
Humidity Range: ≤95% RH
Protection Rating: IP54 (Main Unit)
Communication: RS485 (Optional)
Operating Temperature: -40°C to 70°C
Display Value: Left-to-Right Distance
Installation Method: Wall-mounted

Laser Sensor Technical Specifications

Power Supply:  DC12V–DC24V (used with main unit); AC220V (standalone use)
Power Consumption:≤ 3W
Measuring Range:0.5m – 100m
Accuracy:    ±2%
Communication Method:RS485 (optional)
Laser Type:Detection angle: 3°
Frequency: 1–1000Hz
Switch Output    2 channels (1 NO, 1 NC) (optional)
Analog Output:1 × 4–20mA current output
Protection Rating:IP65
Operating Temperature:    -40°C to 70°C
Operating Humidity:≤95% RH
Installation Method:Wall-mounted
Weight (Reference):1.0 kg
