Dry Contact Trigger
The SLA-05BK is triggered by voltage-free switch signals from external devices. It can link with sensors, motion detectors, access control systems, relays and control panels.
Best for
High-noise dry-contact systems
A good choice if you need
- External signal or relay trigger
- Adjustable sound: 0–130dB
- Multiple alarm tones
- Custom alarm audio upload
How it works
- An external switch, relay or signal changes state
- The alarm receives the trigger
- The configured warning activates
YASONG Alarm
Dry Contact

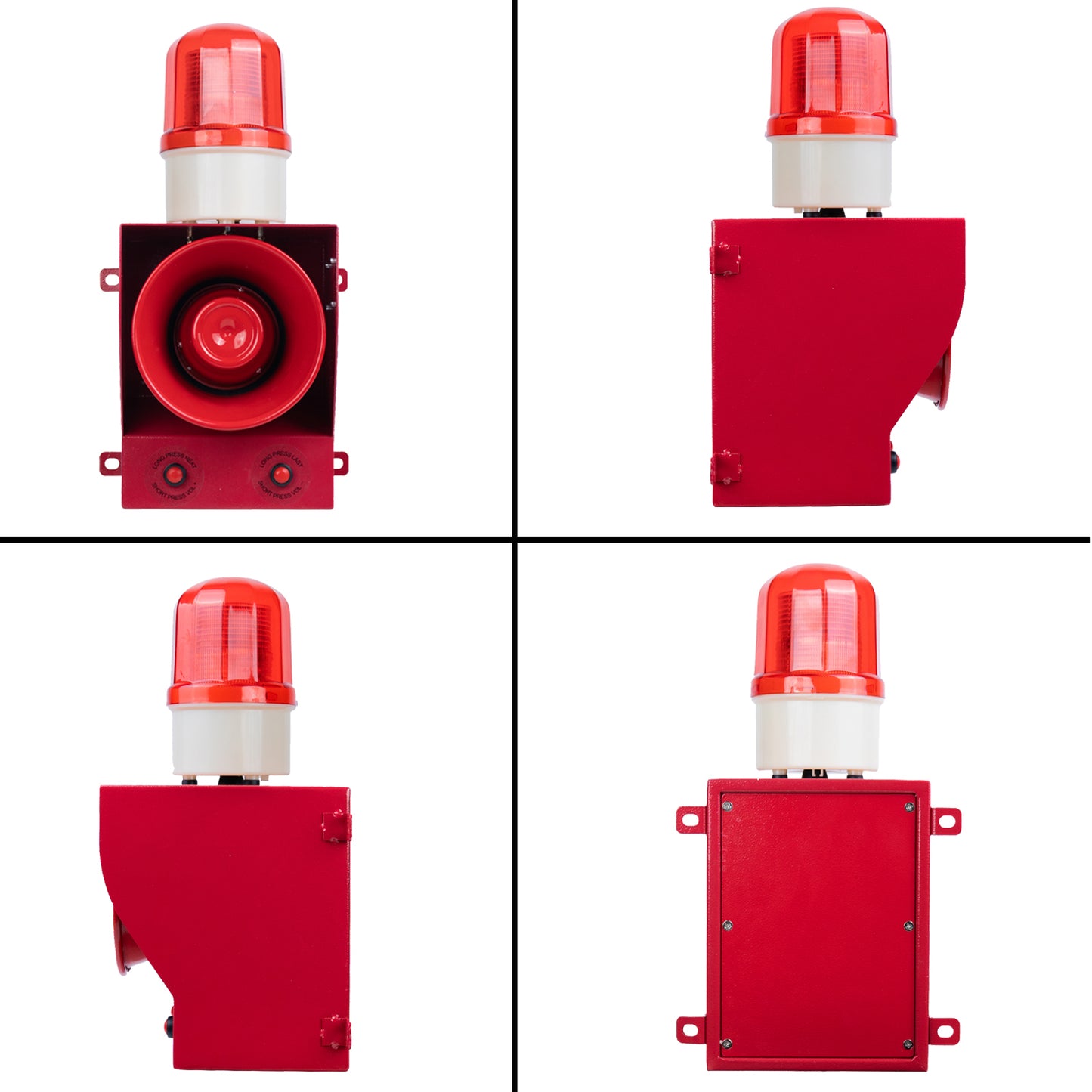

YASONG SLA-05BK 130dB Dry Contact Trigger Alarm Siren, 45W, 12 Tones, IP65, USB Upload, LED Strobe
0–130dB
45W
IP65 Waterproof and Dustproof
Audible + visual warning
Best for
High-noise dry-contact systems
A good choice if you need
- External signal or relay trigger
- Adjustable sound: 0–130dB
- Multiple alarm tones
- Custom alarm audio upload
How it works
- An external switch, relay or signal changes state
- The alarm receives the trigger
- The configured warning activates
$123.00
Before You Buy
Please confirm the correct voltage and dry contact wiring method before ordering. This alarm requires wiring and is designed to work with voltage-free switch signals from external devices.
Need another control method?
See other alarm options →
Is this model right for you?
Check the capabilities that matter before you choose a configuration.
If you need
This model
Dry-contact / signal input
✓
Adjustable volume
✓
Multiple selectable tones
✓
Custom alarm audio
✓
Audible + visual warning
✓
IP65 Waterproof and Dustproof protection
✓
Why choose this model?
The features that most directly affect how this model works and where it fits.
Adjustable 130dB Sound
The alarm supports 0–130dB volume adjustment by short-pressing the button. This helps match the warning sound to different indoor or outdoor noise levels.
12 Tones and USB Upload
The siren includes 12 built-in tones that can be adjusted by long-pressing the button. The USB port allows users to upload custom alarm audio.
Key Specifications
Quick technical checks before ordering.
- Sound Level
- 0–130dB
- Power
- 45W
- Trigger Mode
- Dry contact trigger / voltage-free switch signal trigger
- Control Mode
- Button control for volume and tone adjustment
- Alarm Mode
- Audible and visual alarm
- Tone
- 12 tones
- Volume Adjustment
- 0–130dB, short-press button to adjust
- Protection Rating
- IP65 Waterproof and Dustproof
- Installation Method
- Wall-mounted installation
- Input Voltage
- DC12V / DC24V / AC110V / AC220V
Product Overview
The YASONG SLA-05BK dry contact trigger alarm siren combines a 0–130dB adjustable horn, 45W alarm power and LED strobe warning light for sensors, motion detectors, entry access control systems, relays, control panels and outdoor industrial security areas.
This model works by dry contact signal activation: when an external device sends a voltage-free switch signal, the siren triggers both sound and light warning. It supports multiple voltage options and requires wiring before use.
- Dry contact trigger input for sensor, relay and control panel linkage
- 0–130dB adjustable sound for different site noise levels
- 12 built-in tones adjustable by long-pressing the button
- USB sound upload for custom alarm audio
- IP65 waterproof and dustproof housing for outdoor use
Please confirm the correct voltage and dry contact wiring method before ordering. Wiring is required, and the alarm does not come with a plug.
Full Technical SpecificationsDetailed product data from the available product information.
- Product Type
- Dry Contact Trigger Alarm Siren
- Input Voltage
- DC12V / DC24V / AC110V / AC220V
- Power
- 45W
- Sound Level
- 0–130dB
- Tone
- 12 tones
- Volume Adjustment
- 0–130dB, short-press button to adjust
- Alarm Mode
- Audible and visual alarm
- Trigger Mode
- Dry contact trigger / voltage-free switch signal trigger
- Control Mode
- Button control for volume and tone adjustment
- Work Mode
- Standby after power-on; triggers sound and light alarm after receiving dry contact signal
- Light Source
- LED light bead
- Lighting Mode
- LED Strobe
- Protection Rating
- IP65 Waterproof and Dustproof
- Installation Method
- Wall-mounted installation
- Operating Temperature
- -40℃-70℃
- Material
- Cold rolled steel and PS
- Net Weight
- 4.5kg
- Package Dimensions
- 50cm*29cm*28cm(1pcs)
50cm*48cm*51cm(4pcs) - USB Interface
- Upload custom audio
- Application Scenarios
- Sensors, motion detectors, entry access control systems, relays, control panels, factories, outdoor security areas, industrial warning systems
- Customization
- USB custom audio upload, voltage options
