Dry Contact Signal Trigger
The SLA-01K is triggered by an external voltage-free switch signal. It can work with compatible sensors, access control systems, motion detectors and other alarm output devices.
Best for
Camera, access-control and sensor linkage
A good choice if you need
- External signal or relay trigger
- Audible warning: 120dB
- Audible + visual warning
- IP65 protected installation
How it works
- An external switch, relay or signal changes state
- The alarm receives the trigger
- The configured warning activates
YASONG Alarm
Dry Contact Trigger

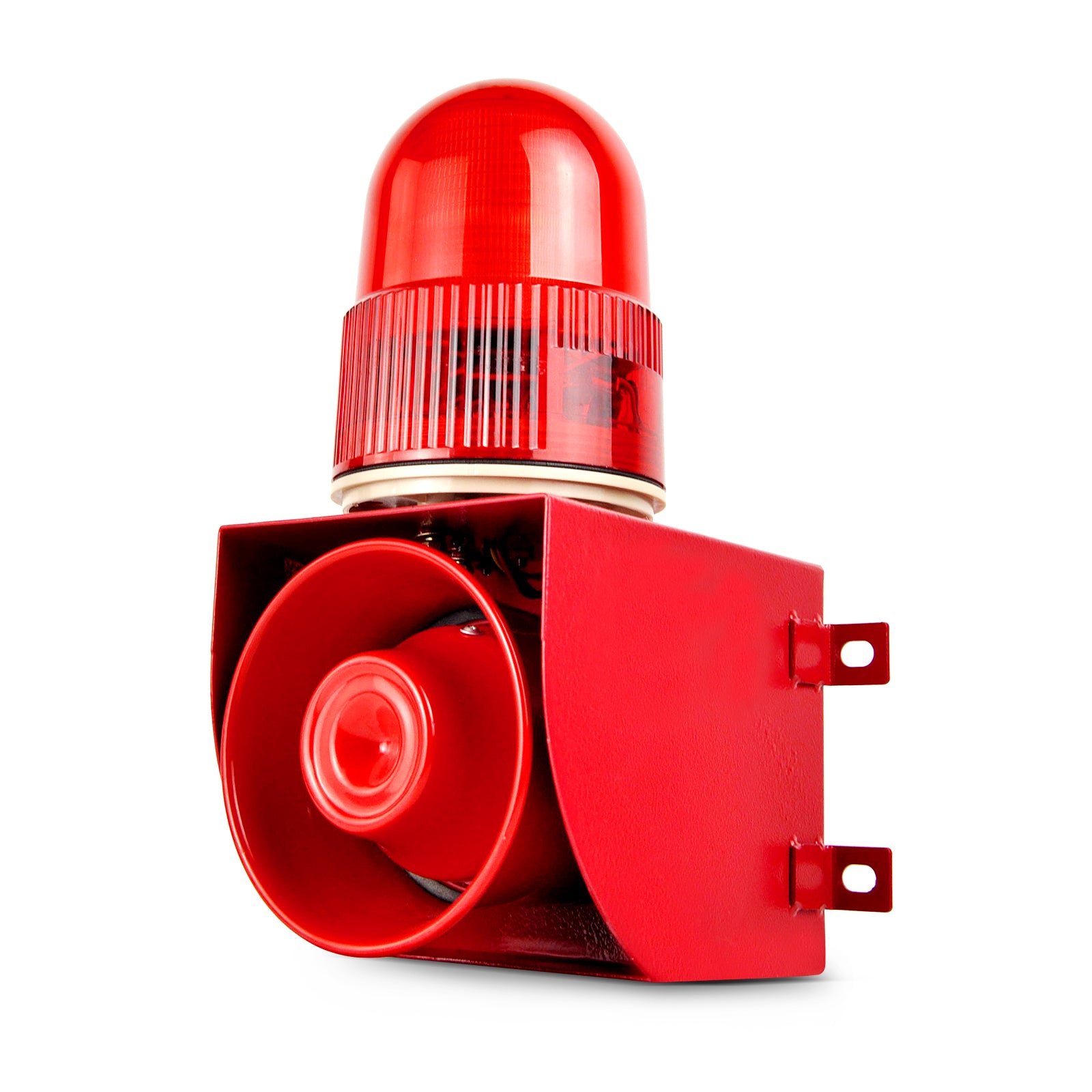

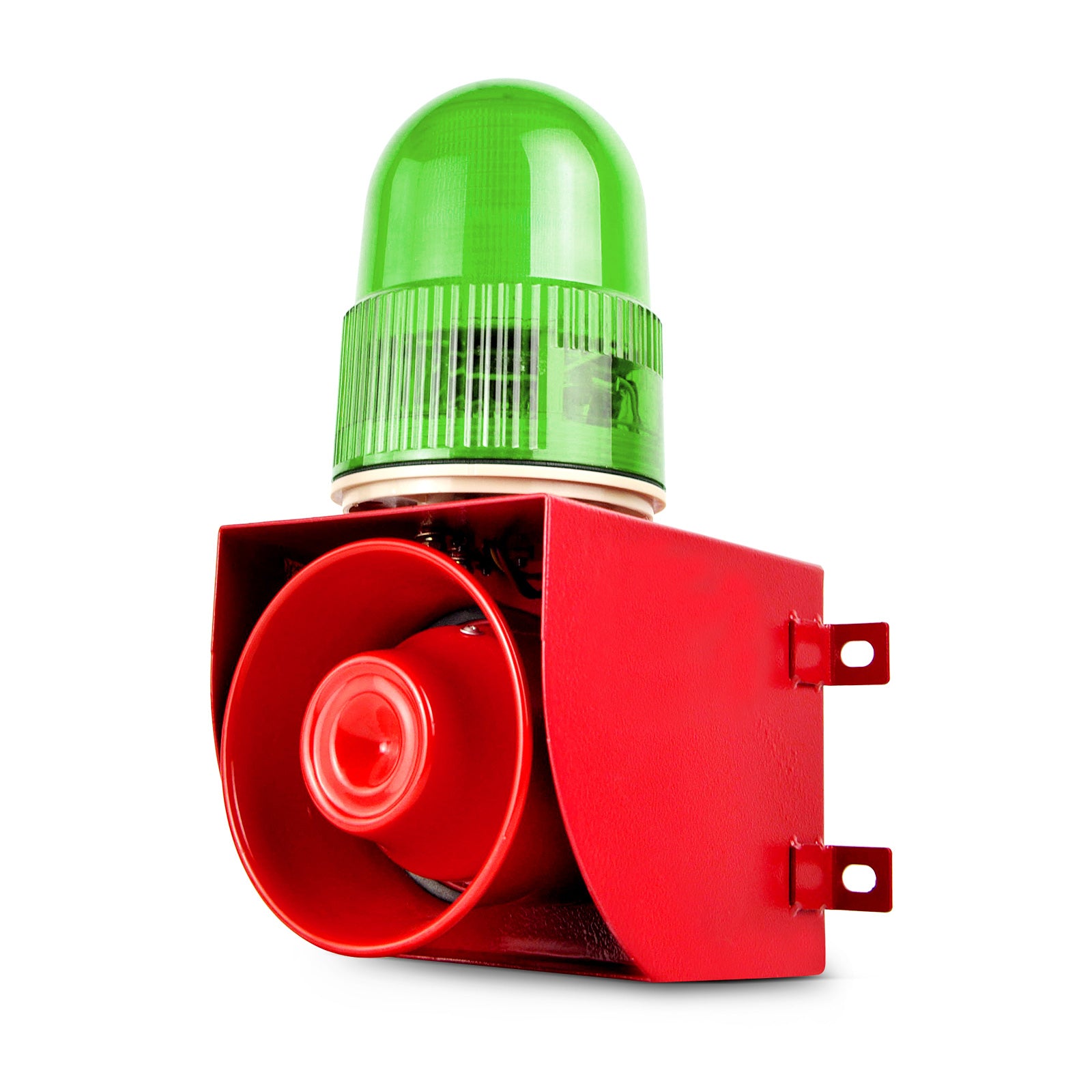

YASONG SLA-01K 120dB Contact Signal Industrial Alarm Siren, 25W, IP65, LED Strobe, AC/DC Voltage Options
120dB
25W
IP65
Audible + visual warning
Best for
Camera, access-control and sensor linkage
A good choice if you need
- External signal or relay trigger
- Audible warning: 120dB
- Audible + visual warning
- IP65 protected installation
How it works
- An external switch, relay or signal changes state
- The alarm receives the trigger
- The configured warning activates
$84.00
Before You Buy
Confirm whether your external device outputs a dry contact or wet contact signal before wiring. Choose the correct voltage option before ordering.
Need another control method?
See other alarm options →
Is this model right for you?
Check the capabilities that matter before you choose a configuration.
If you need
This model
Dry-contact / signal input
✓
Adjustable volume
—
Audible + visual warning
✓
IP65 protection
✓
Why choose this model?
The features that most directly affect how this model works and where it fits.

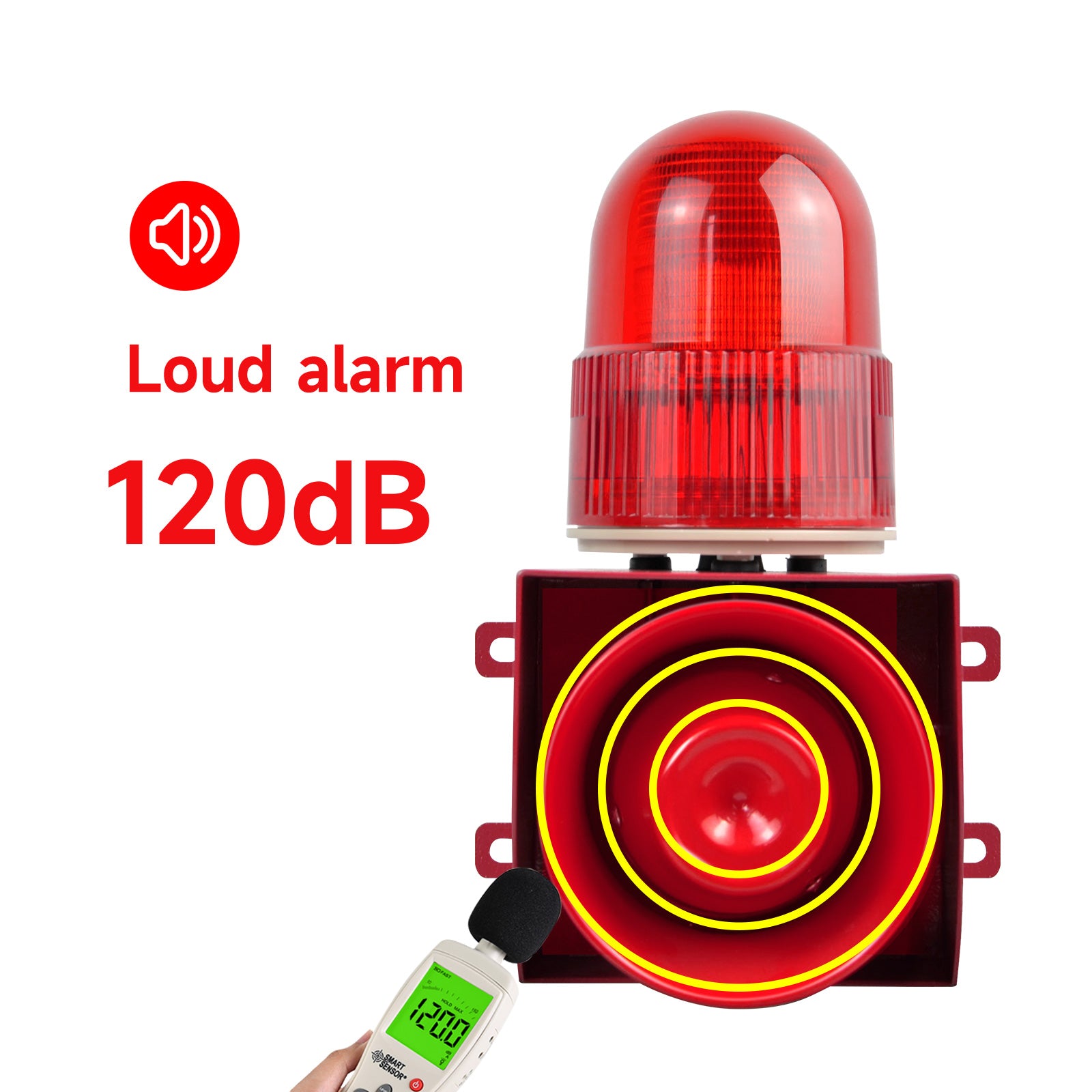

120dB Loud Horn
The alarm uses a loud 120dB siren sound to provide clear audible warning for security, industrial and outdoor applications.

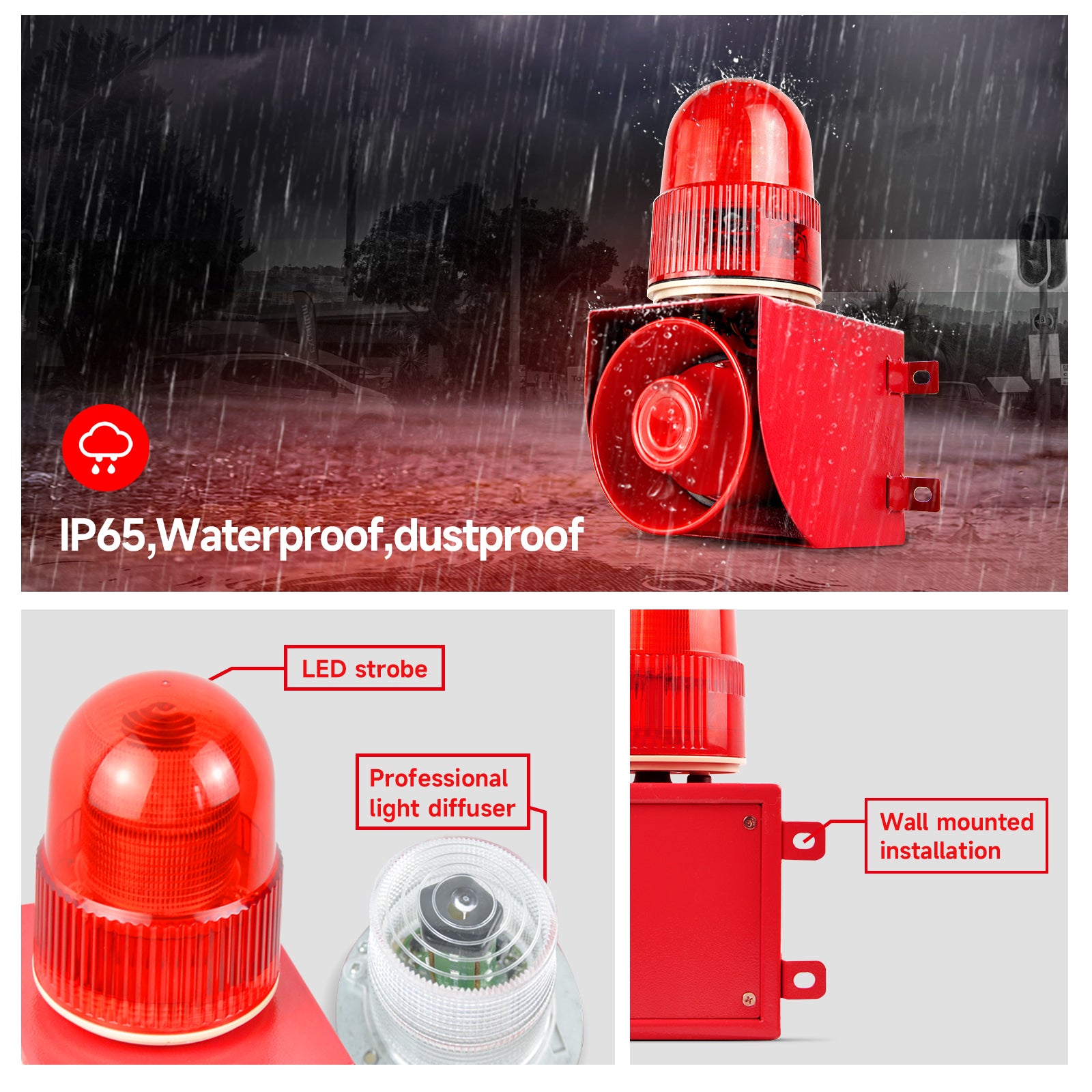

IP65 Outdoor Housing
The weatherproof circuit design and plastic-sprayed steel housing support outdoor and semi-outdoor use. The page lists IP65 protection.

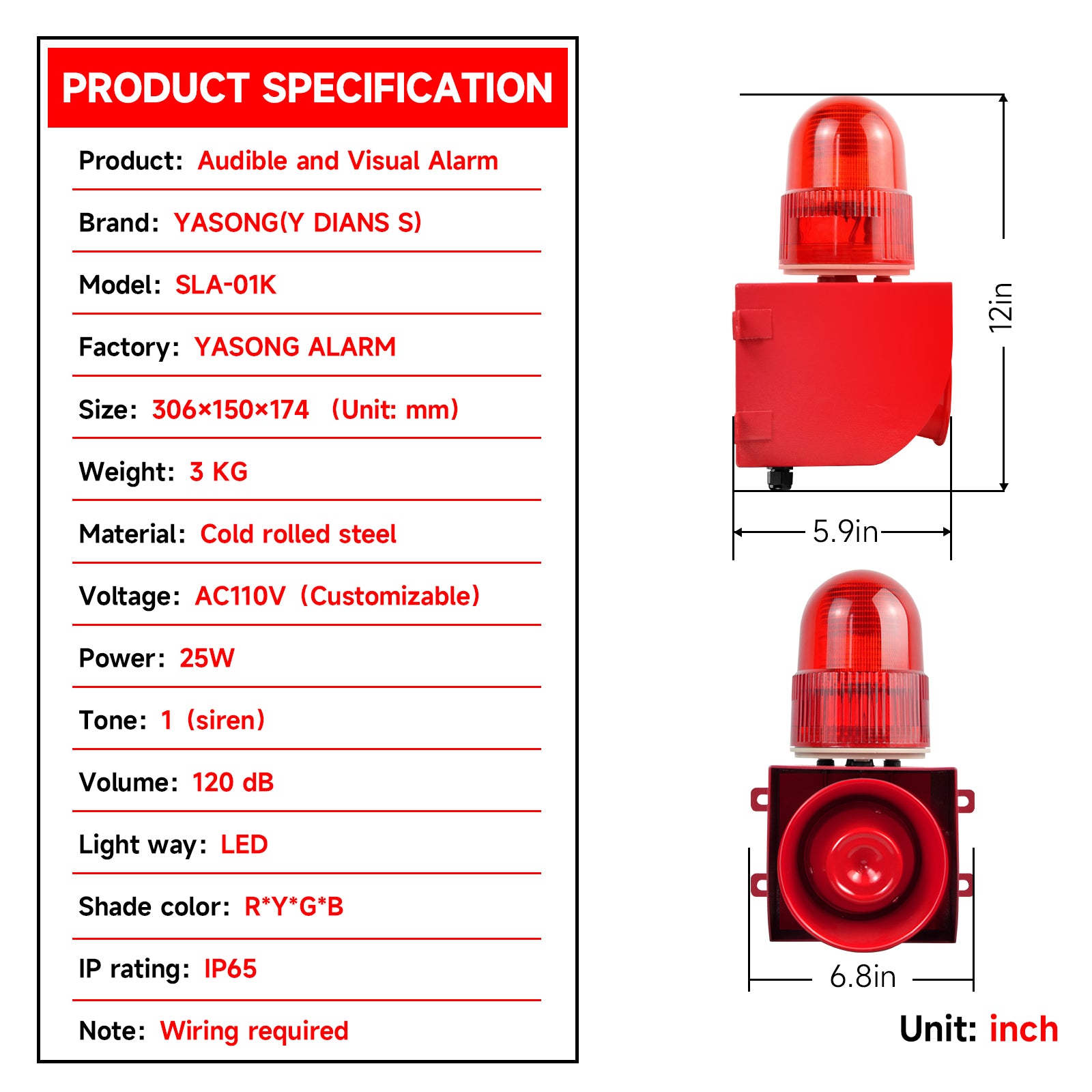

Key Specifications
Quick technical checks before ordering.
- Sound Level
- 120dB
- Power
- 25W
- Trigger Mode
- External dry contact signal trigger
- Control Mode
- Switching-value signal control
- Alarm Mode
- Audible and visual alarm
- Tone
- 1 default siren tone
- Volume Adjustment
- Not adjustable
- Protection Rating
- IP65
- Installation Method
- Wall-mounted installation
- Input Voltage
- DC12V / DC24V / AC110V / AC220V
Product Overview

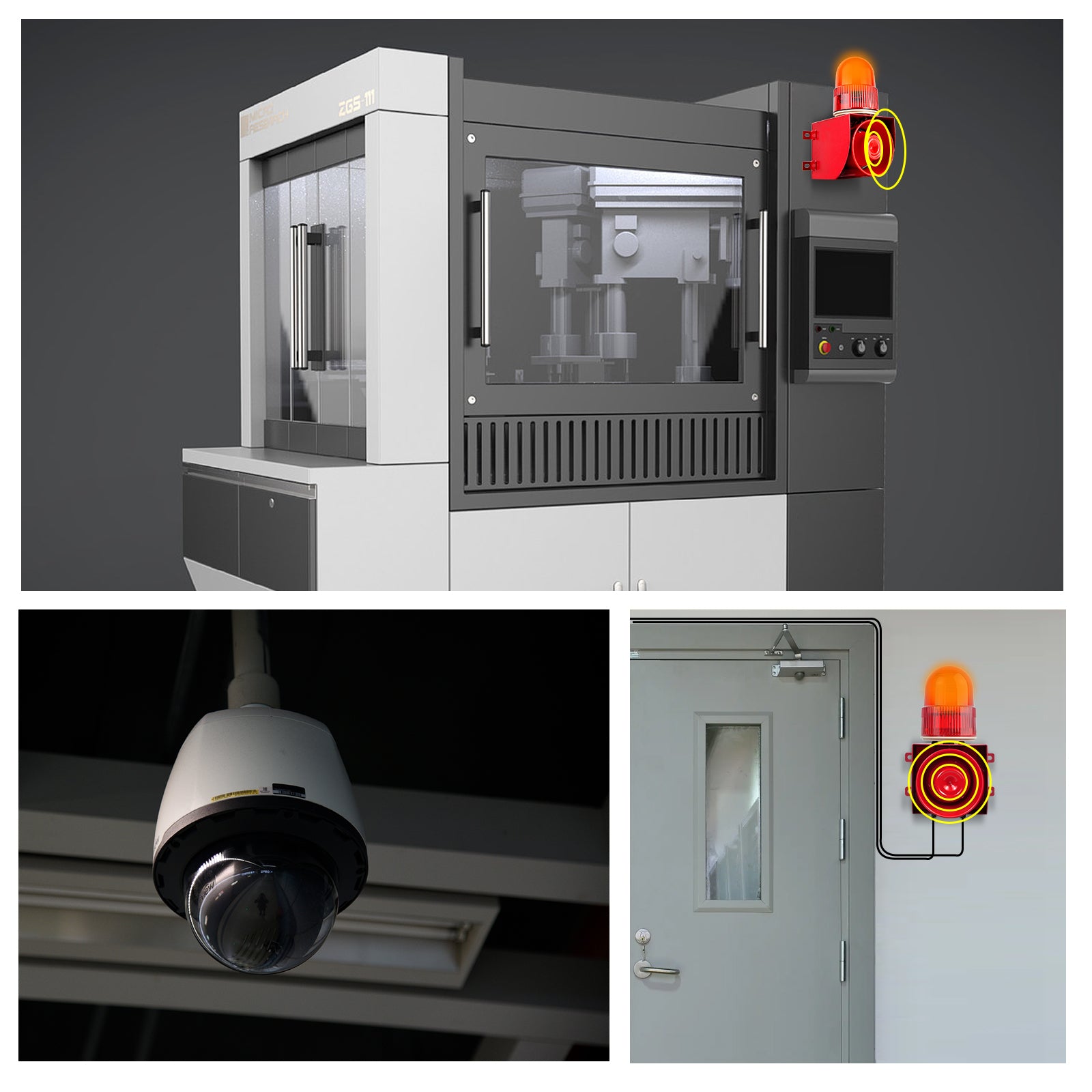

The YASONG SLA-01K dry contact signal alarm siren is designed for security systems, access control systems, sensors, motion detectors, PLC-related warning points and industrial alarm outputs.

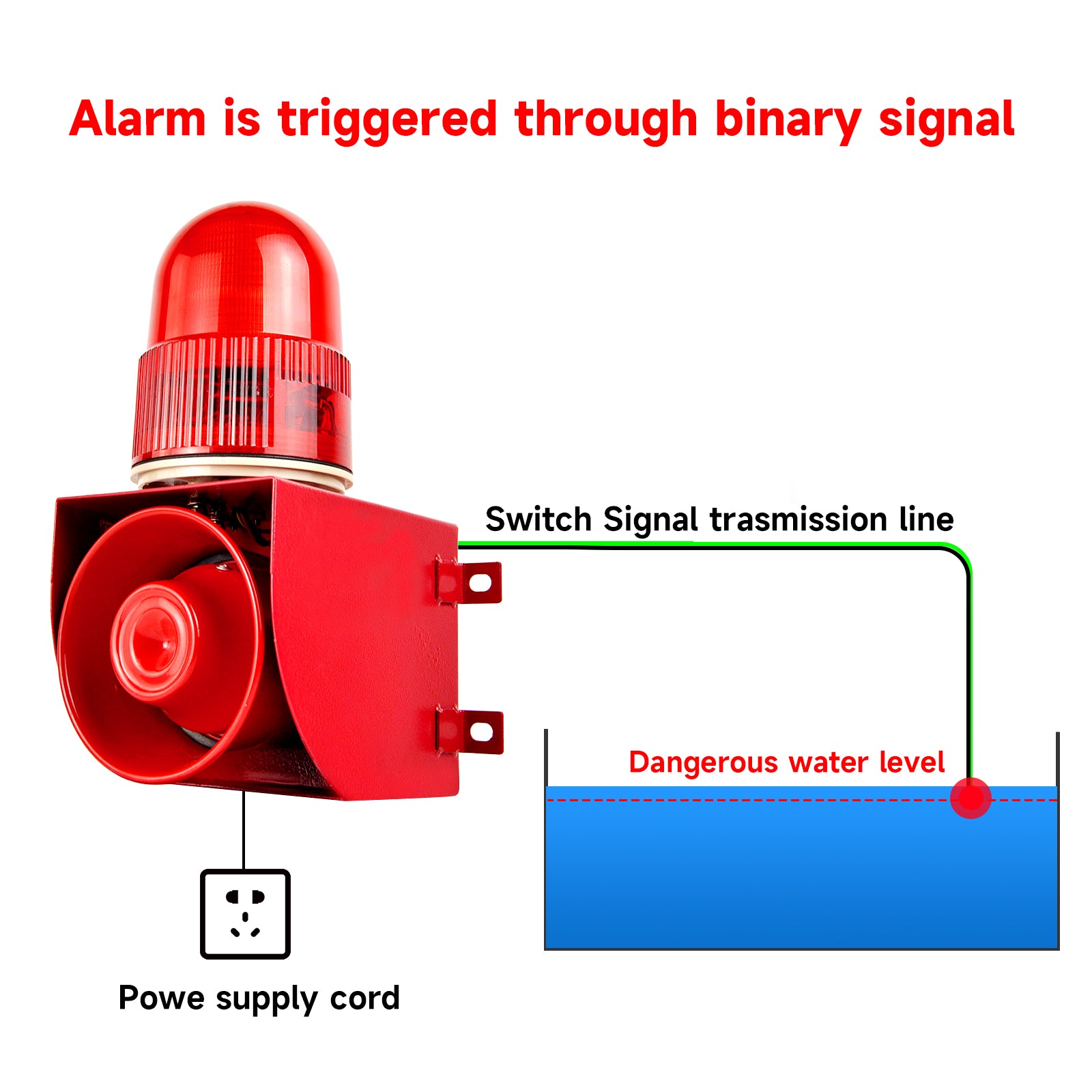

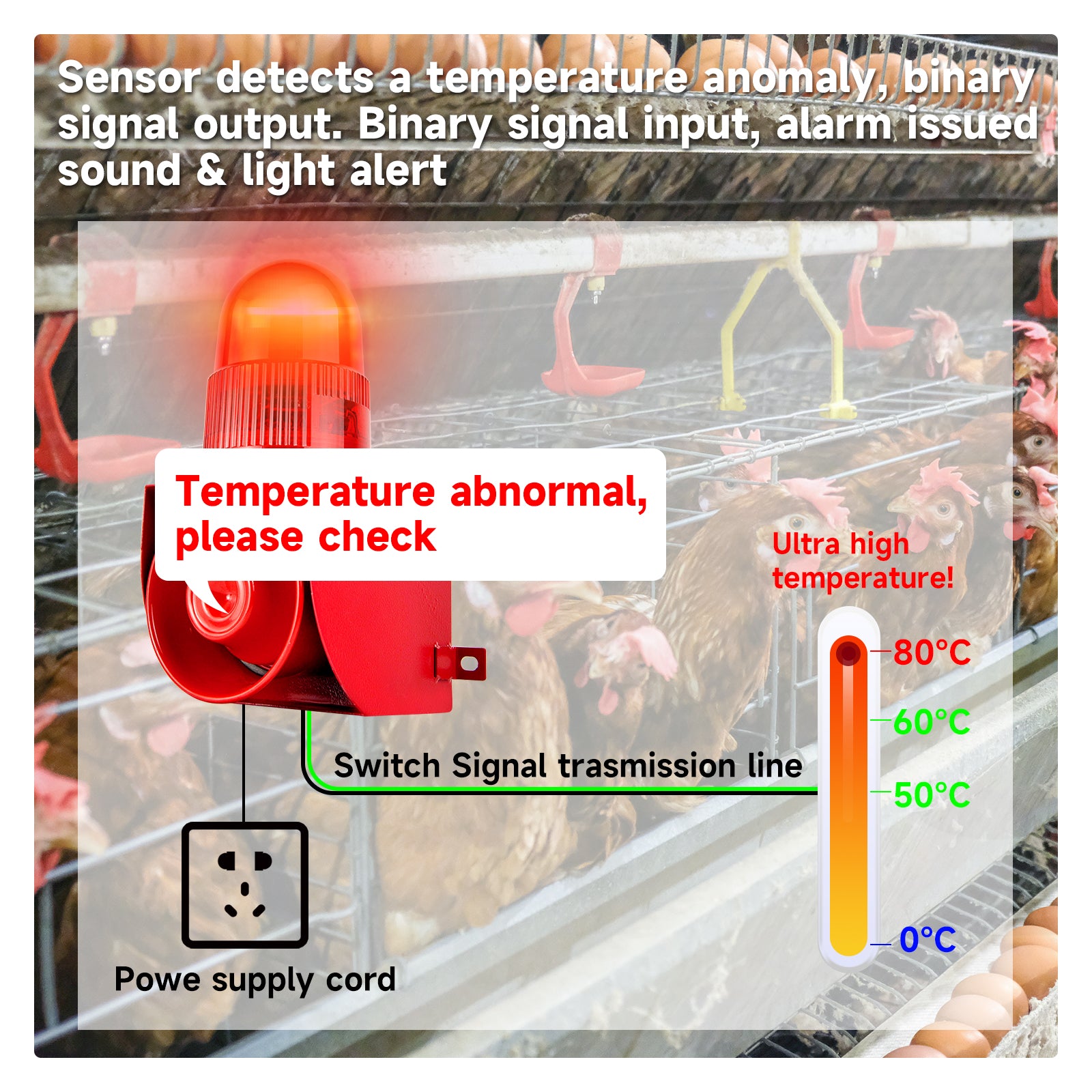

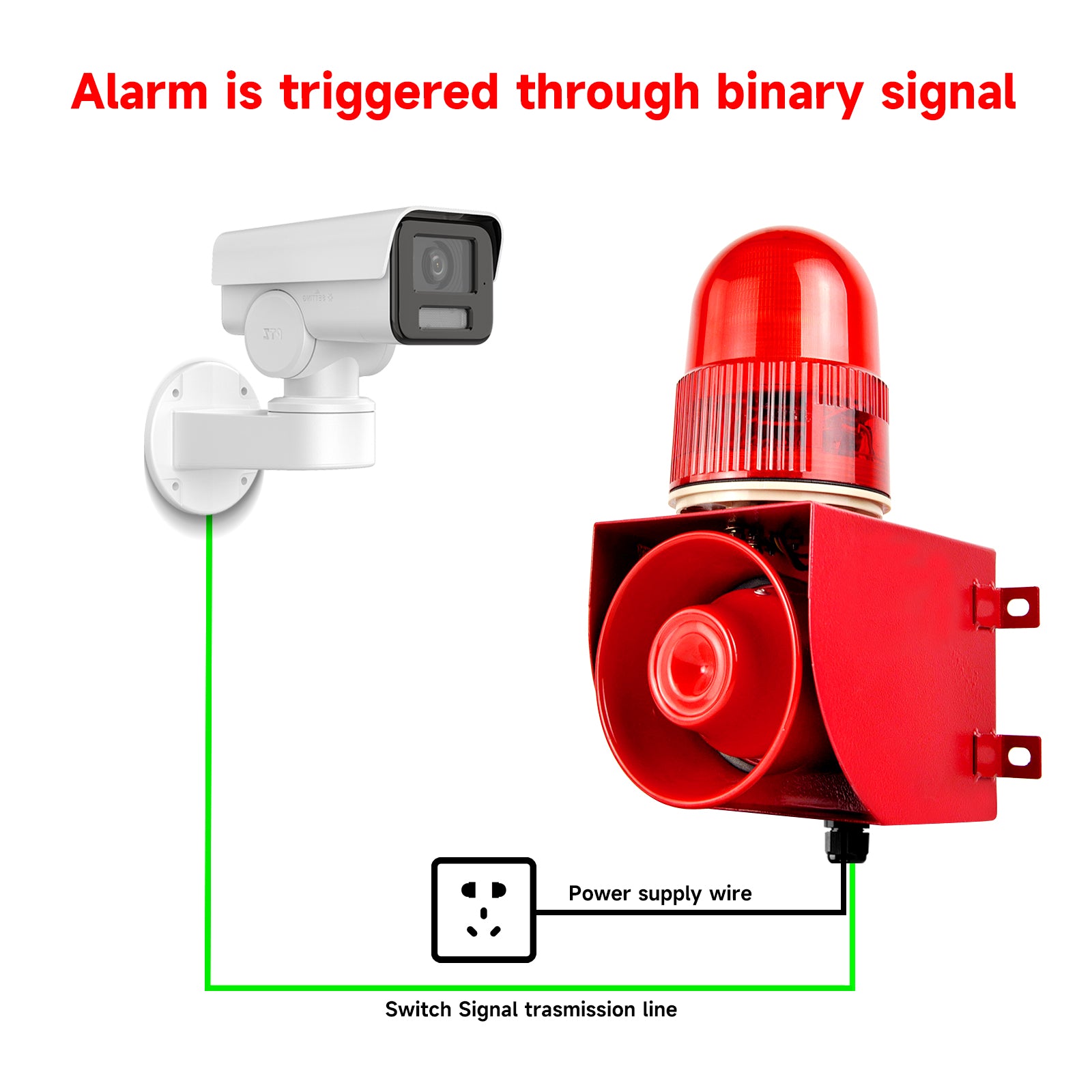

This model is triggered by an external voltage-free dry contact signal. When a connected device sends a switching signal, the siren activates a 120dB audible alarm and LED strobe light for clear sound and visual warning.
- Dry contact signal trigger for external alarm outputs
- 120dB loud horn with 1 default siren tone
- LED strobe warning light with fixed blinking mode
- IP65 outdoor housing for industrial and security use
- Multiple voltage options including DC12V, DC24V, AC110V and AC220V

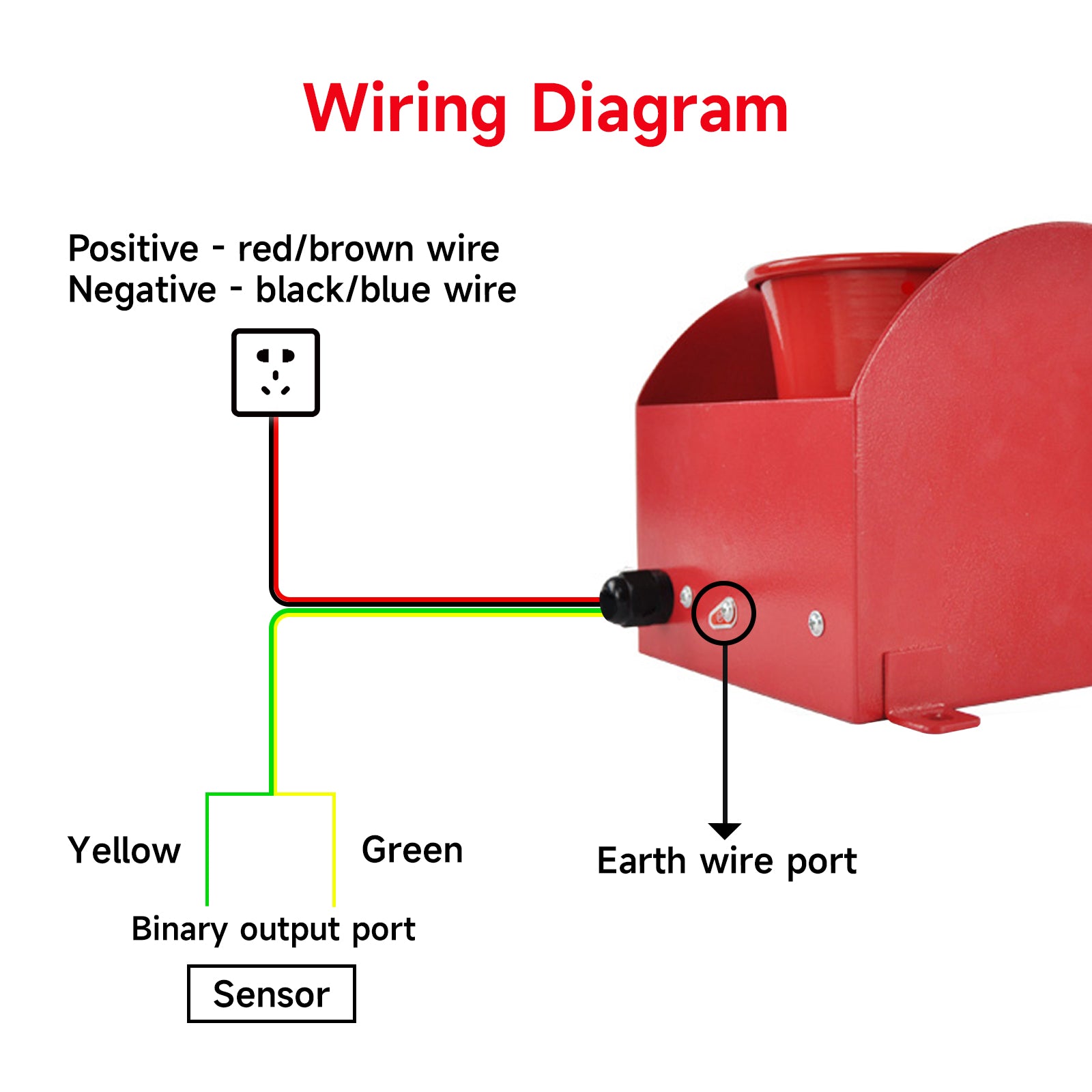

Wiring is required before use. Please confirm that your external device provides a dry contact signal before connecting the alarm.
Full Technical SpecificationsDetailed product data from the available product information.
- Product Type
- Contact Signal Industrial Alarm Siren
- Input Voltage
- DC12V / DC24V / AC110V / AC220V
- Power
- 25W
- Working Current
- <1A
- Sound Level
- 120dB
- Tone
- 1 default siren tone
- Volume Adjustment
- Not adjustable
- Alarm Mode
- Audible and visual alarm
- Trigger Mode
- External dry contact signal trigger
- Control Mode
- Switching-value signal control
- Work Mode
- External dry contact signal triggers sound and LED strobe alarm
- Light Source
- LED Beads
- Lighting Mode
- LED strobe; blinking mode not adjustable
- Protection Rating
- IP65
- Installation Method
- Wall-mounted installation
- Operating Temperature
- -40℃~70℃
- Material
- Cold rolled steel and PS
- Net Weight
- 4kg
- Package Dimensions
- 44cm*23cm*24cm(1Pcs);
46cm*44cm*25cm(2Pcs);
46cm*44cm*48cm(4Pcs); - Application Scenarios
- PLC systems, access control systems, sensors, motion detectors, security systems, factories, warehouses, industrial warning systems, outdoor alarm points
Need a different alarm?
If this control method or feature set is not what you need, start with the requirement that matters most.
Need help choosing?
Tell us your voltage, installation environment and preferred activation method. We can help you compare suitable options.
