YASONG SLA-01HK 120dB Signal Triggered Alarm Siren, 25W, IP65, Dry/Wet Contact, USB Upload, LED Strobe
This siren requires an external sensor, PLC, relay, controller or security device to send a trigger signal. Please confirm whether your device outputs passive dry contact or active voltage signal before purchase.
Product Overview

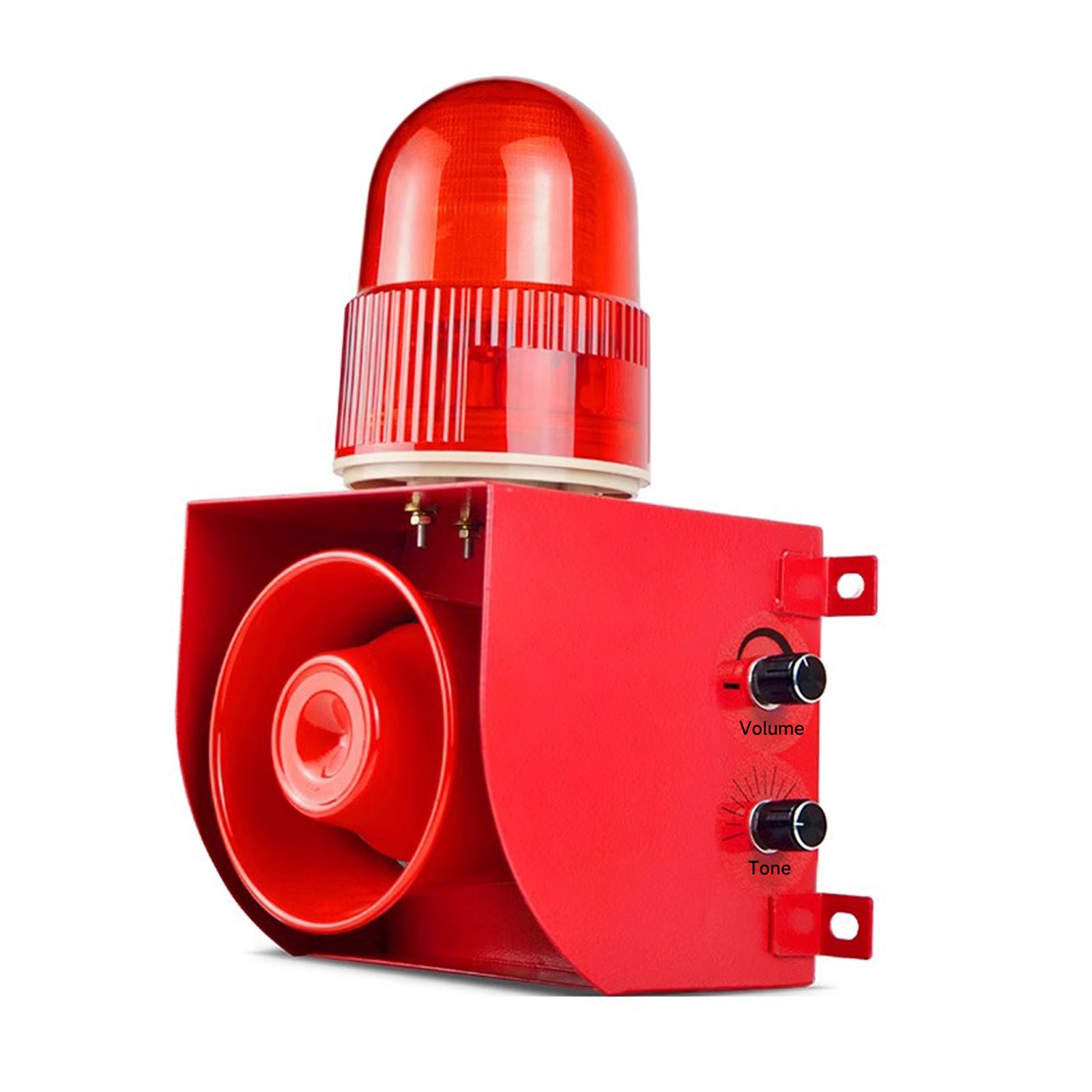

The YASONG SLA-01HK signal-triggered alarm siren combines a 0–120dB adjustable horn with a LED strobe warning light for industrial sensor linkage, PLC systems and security alarm setups.

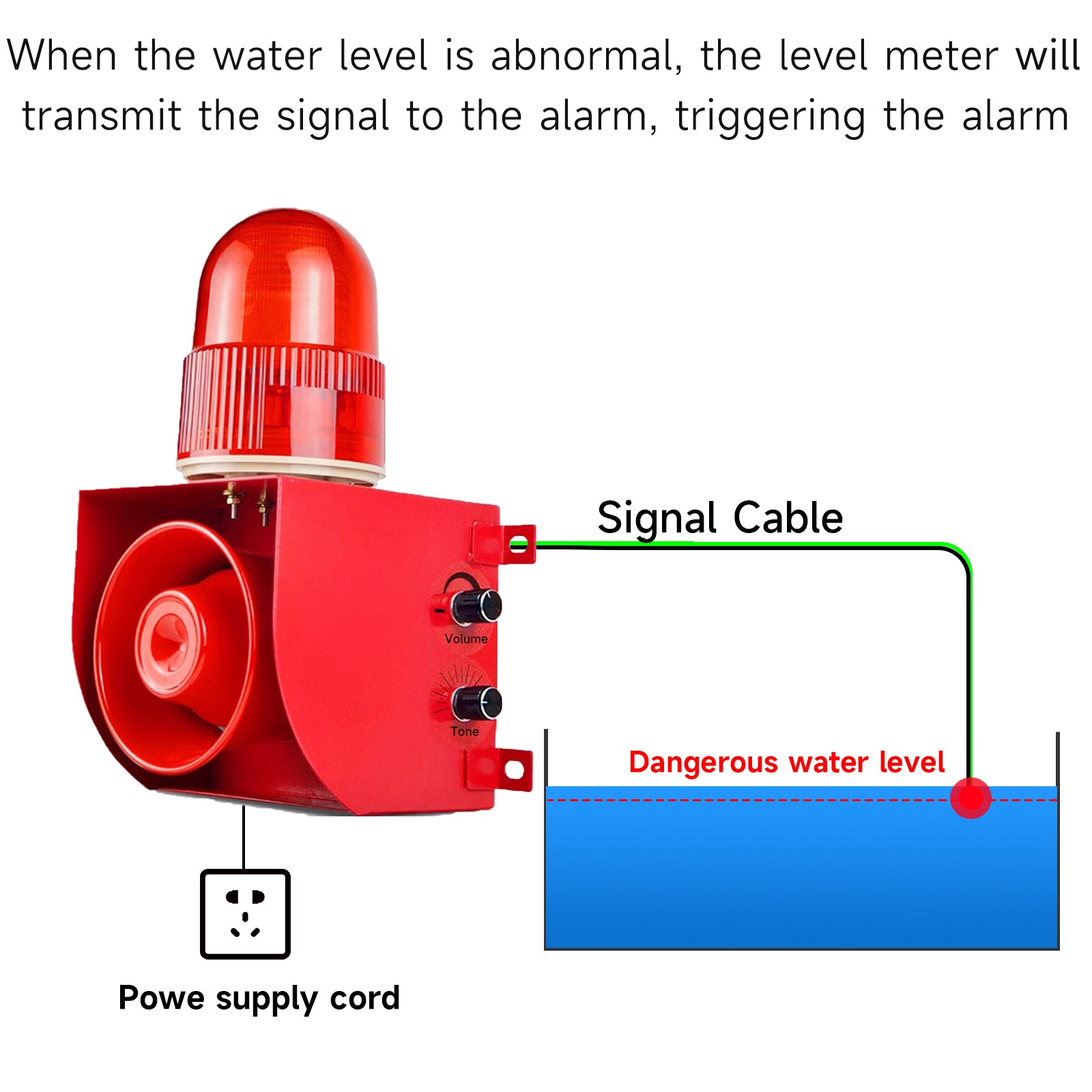

This model works by external signal triggering: it accepts either passive signal dry contact or active signal wet contact input, then activates audible and visual warning after receiving the switch signal.
- Passive or active signal input for different control systems
- 0–120dB adjustable volume with rotary knob control
- LED strobe warning for visible alarm indication
- USB sound upload for custom alarm tones
- IP65 steel housing for indoor and outdoor industrial use
This product does not include a built-in motion detector. Please confirm whether your device outputs dry contact or voltage signal before ordering.
Key Specifications
Quickly compare the most important details before ordering.
Product Highlights
Key features that help you decide whether this model fits your use.
External Signal Trigger

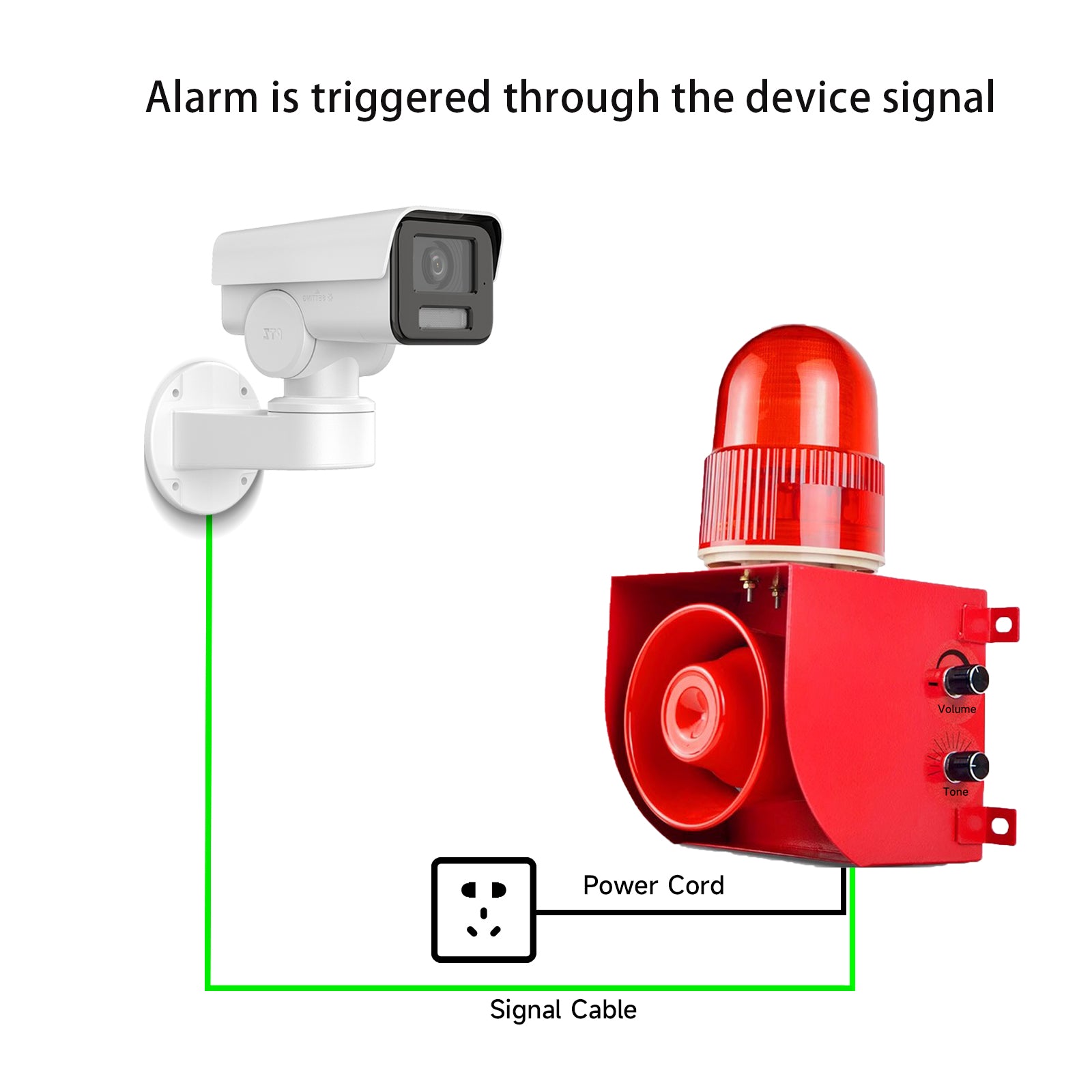

The SLA-01HK is triggered by an external switch signal instead of a built-in sensor. It is suitable for PLCs, relays, security cameras and automation control systems.
Dry or Wet Contact Input
Users can choose a passive signal dry contact version or an active signal wet contact version. Confirm the output type of your device before ordering to avoid signal mismatch.

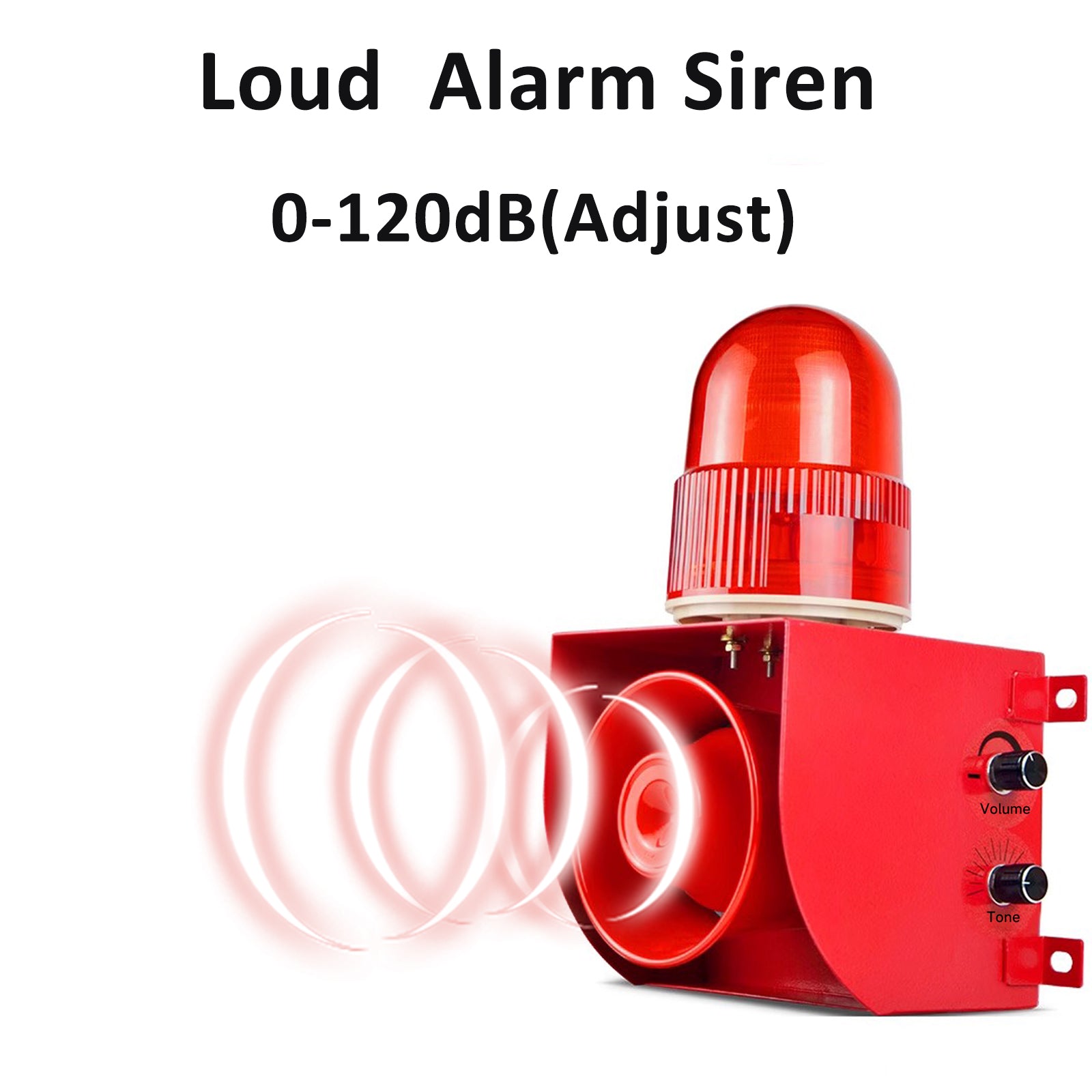

120dB Adjustable Siren

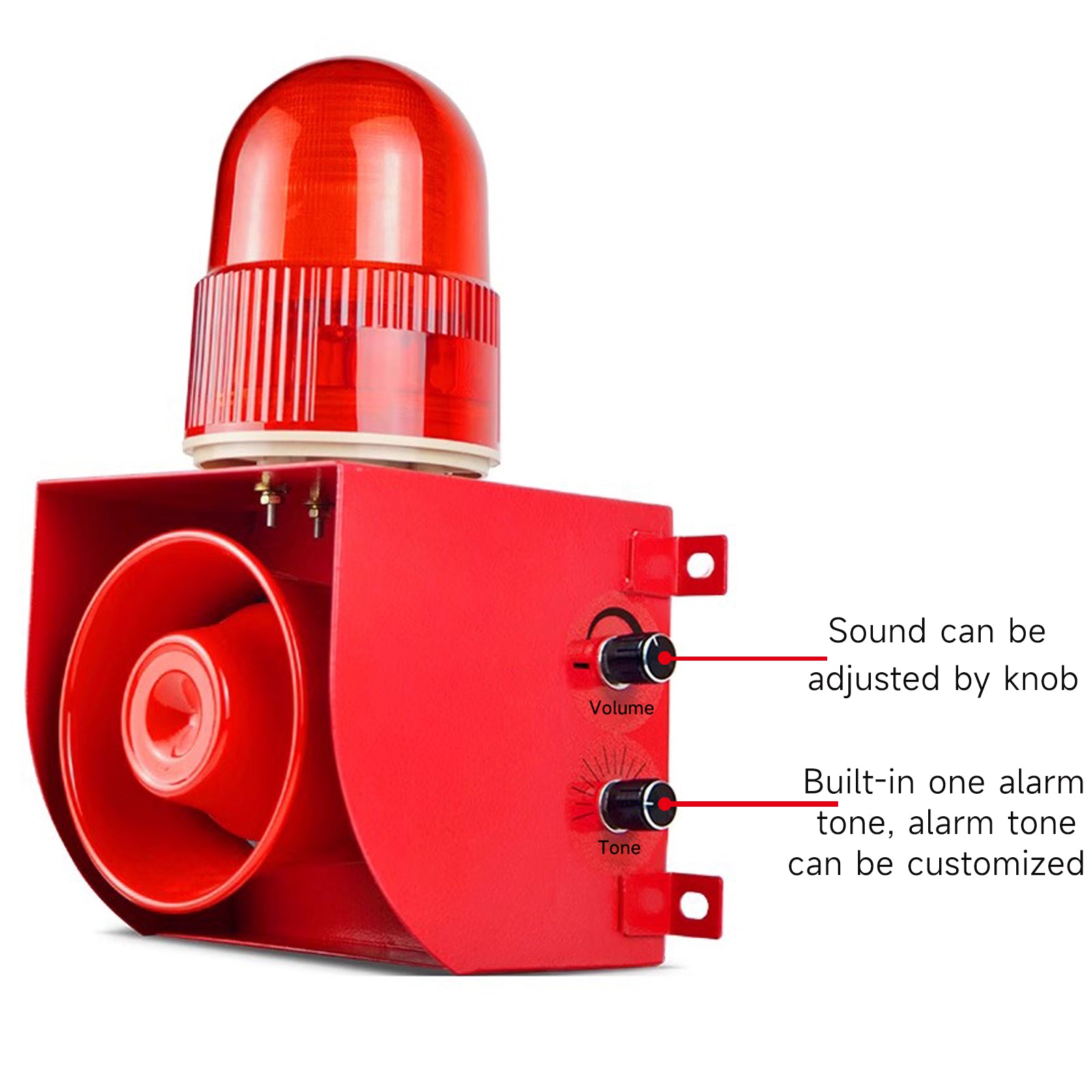

The siren provides 0–120dB adjustable sound output. The rotary knob allows volume adjustment for quiet offices, warehouses or noisy workshops.
LED Strobe Warning
The LED strobe light works together with the siren sound to provide audible and visual warning after the alarm receives a trigger signal.

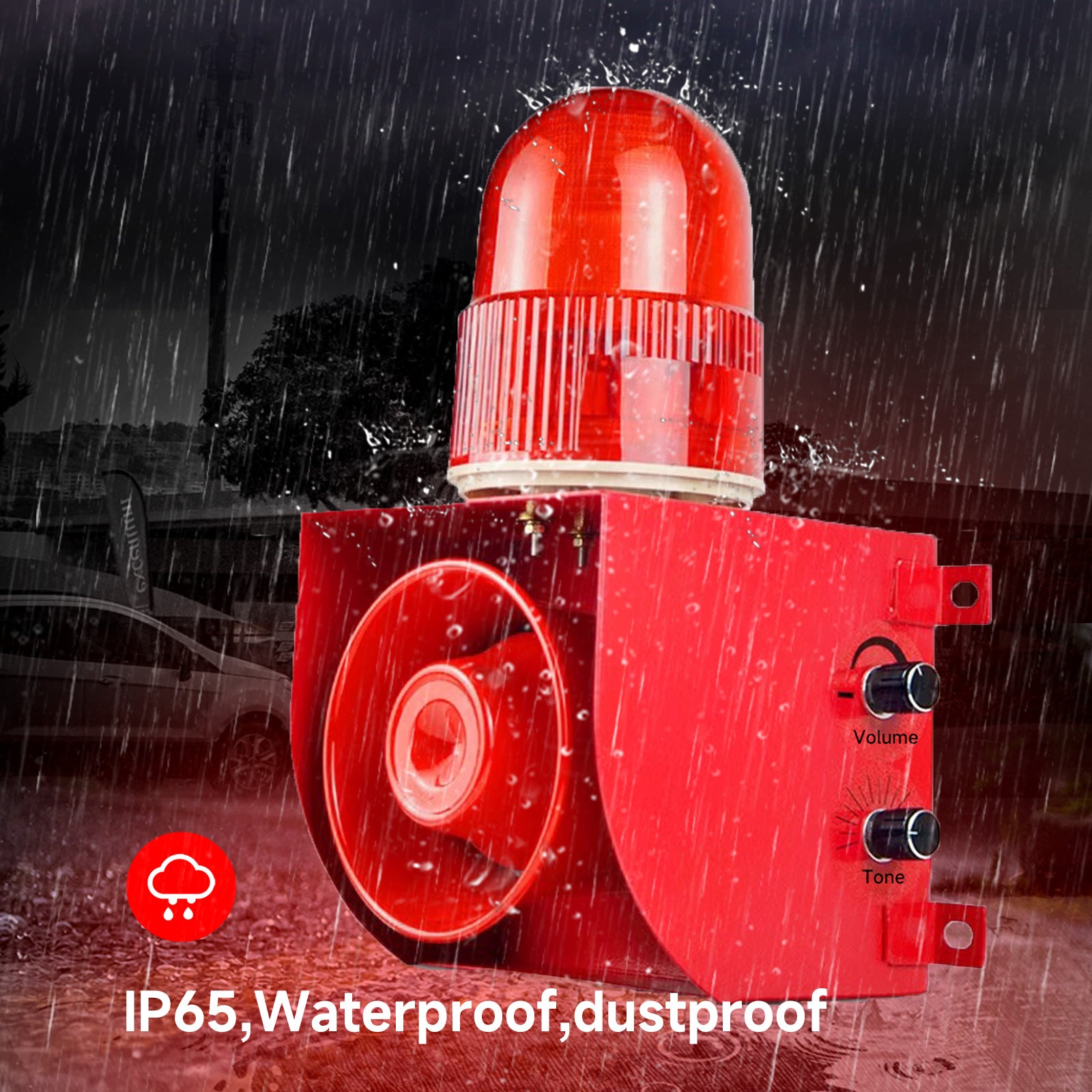

IP65 Steel Housing
The cold-rolled steel housing supports industrial use with IP65 dustproof and waterproof protection. Wall mounting is suitable for fixed warning points.
Full Product Specifications
Detailed specifications for installation, comparison and compatibility checks.
- Product Type
- Discrete/Binary Signal Alarm Siren
- Input Voltage
- DC12V / DC24V / AC110V / AC220V
- Power
- 25W
- Working Current
- <1A
- Sound Level
- 0–120dB adjustable
- Tone
- 1 siren tone; custom alarm tones uploadable via USB
- Volume Adjustment
- Adjustable by rotary knob
- Alarm Mode
- Audible and visual alarm
- Trigger Mode

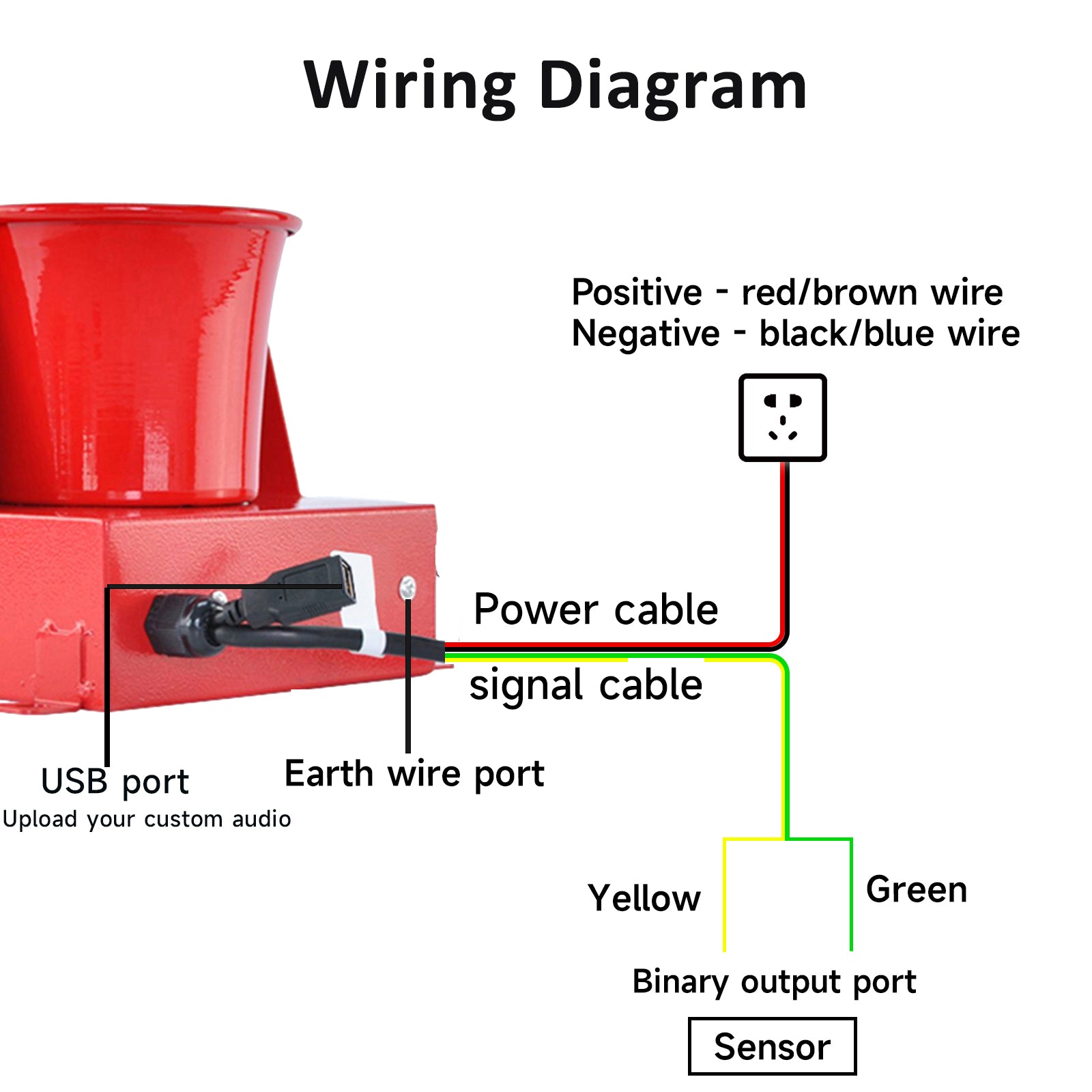

- Passive signal dry contact or active signal wet contact trigger
- Control Mode
- External sensor, PLC, relay, controller or security device signal control
- Work Mode
- Receives switch signal and activates sound and LED strobe warning
- Light Source
- LED strobe
- Lighting Mode
- LED strobe
- Protection Rating
- IP65
- Installation Method
- Wall mount
- Operating Temperature Range
- -40℃~70℃
- Material
- Cold rolled steel
- Net Weight
- 3kg
- USB Interface
- Upload custom alarm tones
- Typical Application Scenarios
- PLC systems, relays, security cameras, automation systems, factories, warehouses, industrial equipment, access control points, outdoor security areas, sensor linkage alarm systems
- Tips
- This siren requires an external sensor, PLC, relay, controller or security device to send a trigger signal. Please confirm whether your device outputs passive dry contact or active voltage signal before purchase.
- Customization
- Custom alarm tones uploadable via USB
